The Rise of HDI Hybrid PCBs and the Latest Innovations in High-Frequency Materials

As we step into 2025, the PCB industry continues to evolve at a rapid pace, driven by the increasing demand for high-performance, high-density interconnect (HDI) PCBs and advanced materials that cater to the needs of cutting-edge technologies such as 5G, IoT, automotive electronics, and aerospace applications. Among the most significant trends this year is the growing adoption of hybrid PCBs that combine high-frequency materials like Rogers RO4003C with traditional FR-4 laminates. These hybrid PCBs offer a unique balance of performance, cost-effectiveness, and manufacturability, making them ideal for a wide range of applications.

In line with this trend, we are proud to announce the successful shipment of our latestHDI Hybrid PCB: the 8-Layer 1.5mm RO4003C S1000-2M. This product exemplifies the industry's shift toward more sophisticated and high-performance PCB solutions, designed to meet the stringent requirements of modern electronic devices.

The 2025 PCB Industry Landscape: Key Trends and Innovations

1. The Surge in Demand for HDI PCBs

High-density interconnect (HDI) PCBs have become the backbone of modern electronics, enabling the miniaturization of devices while enhancing their performance. With the proliferation of 5G networks, IoT devices, and advanced automotive systems, the demand for HDI PCBs has skyrocketed. These PCBs feature finer trace widths, smaller vias, and higher layer counts, allowing for greater functionality in compact designs.

2. Hybrid PCBs: Bridging the Gap Between Performance and Cost

Hybrid PCBs, which combine high-frequency materials like Rogers RO4003C with traditional FR-4 laminates, are gaining traction in 2025. These PCBs offer the best of both worlds: the superior electrical performance of high-frequency materials and the cost-effectiveness of FR-4. This makes them particularly attractive for applications such as RF/microwave circuits, automotive radar systems, and cellular base stations.

3. Advancements in High-Frequency Materials

Materials likeRogers RO4003C are at the forefront of the PCB industry's evolution. With a dielectric constant (Dk) of 3.38 and a low dissipation factor (Df) of 0.0027 at 10GHz, RO4003C is ideal for high-frequency applications. Its thermal stability, low moisture absorption, and compatibility with standard FR-4 manufacturing processes make it a preferred choice for designers of RF and microwave circuits.

4. Sustainability and Environmental Compliance

As environmental regulations become more stringent, PCB manufacturers are increasingly adopting eco-friendly materials and processes.Rogers 4003C, for instance, is non-brominated and free from harmful substances, aligning with global sustainability goals.

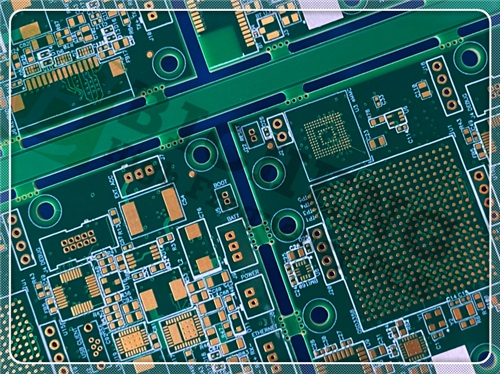

Introducing Our Latest HDI Hybrid PCB: 8-Layer 1.5mm RO4003C S1000-2M

Our newly shipped 8-Layer 1.5mm RO4003C S1000-2M PCB is a testament to the industry's latest trends and innovations. This product is designed to deliver exceptional performance in high-frequency applications while maintaining cost efficiency. Below are the key features and specifications of this cutting-edge PCB:

# Key Specifications:

- Board Type: 8 layers

- Material Type: RO4003C + FR-4 Tg170°C

- Solder Mask: Both sides, green

- Silkscreen Print: Top side, white

- Surface Finish: ENIG (Electroless Nickel Immersion Gold)

- Total Board Thickness: 1.5mm +/- 10%

- Board Size: 87.5mm x 40.6mm

- Minimum Hole Size: 0.2mm

- Blind Vias: L1-L2, L7-L8

- Buried Vias: L2-L7

- Back Drilled Vias: L1-L6

- Impedance Control: 50 ohm and 100 ohm differential pairs, 50 ohm single-end

- Quality Standard: IPC-Class-2

# Advanced Stack-Up Design:

The PCB features a meticulously designed stack-up that combines RO4003C and FR-4 S1000-2M materials to optimize electrical performance and thermal stability. The stack-up includes:

- RO4003C Cores: For high-frequency signal integrity and low loss.

- FR-4 S1000-2M Cores: For mechanical strength and cost efficiency.

- Copper Layers: Ranging from 17um to 45um, ensuring robust conductivity and thermal management.

# Key Features of RO4003C:

- Dielectric Constant (Dk): 3.38 +/- 0.05 at 10GHz

- Dissipation Factor (Df): 0.0027 at 10GHz

- Thermal Conductivity: 0.71 W/m/°K

- Low Moisture Absorption: 0.06%

- High Thermal Stability: Tg >280°C

# Key Features of FR-4 S1000-2M:

- Low Z-axis CTE: 2.4 ppm/°C, ensuring excellent through-hole reliability.

- High Tg: 185°C, suitable for lead-free soldering processes.

- Low Water Absorption: 0.08%, providing humidity resistance.

- UL 94-V0 Flammability Rating: Ensuring safety and compliance.

# Applications:

This Hybrid circuit board is ideal for a wide range of high-frequency and high-reliability applications, including:

- Cellular base station antennas and power amplifiers

- RF identification tags

- Automotive radar and sensors

- Direct broadcast satellite LNBs

- Computing and communication devices

Why Choose Our HDI Hybrid PCBs?

1. Superior Performance: The combination of RO4003C and FR-4 S1000-2M ensures excellent signal integrity, low loss, and high thermal stability.

2. Cost-Effectiveness: By leveraging the benefits of both materials, we offer a cost-efficient solution without compromising on performance.

3. Manufacturability: Our PCBs are fabricated using standard FR-4 processes, ensuring ease of production and scalability.

4. Global Availability: With a robust supply chain, we can deliver these advanced PCBs to customers worldwide.

Conclusion

As the PCB industry continues to advance in 2025, the demand for high-performance, cost-effective solutions like our 8-Layer 1.5mm RO4003C S1000-2M HDI Hybrid PCB will only grow. By staying at the forefront of material innovation and manufacturing excellence, we are committed to delivering products that meet the evolving needs of our customers and the industry at large.

For more information about our latest products and capabilities, visit our website or contact our sales team today. Together, let's build the future of electronics.

---
