RO4003C 60mil PCB: Revolutionizing High-Frequency Applications in the PCB Industry

  • December 06, 2023

Introducing the RO4003C 60mil PCB: Revolutionizing High-Frequency Applications in the PCB Industry

We are thrilled to unveil our newly shipped PCB, the RO4003C 60mil PCB, designed to address the latest industry trends and meet the growing demands of high-frequency applications. With its exceptional features and benefits, this cutting-edge substrate is set to revolutionize the PCB industry.

In recent PCB industry news, there has been a significant focus on the need for higher operating frequencies and improved performance. As technology continues to advance rapidly, there is a growing demand for PCB solutions that can support these emerging requirements. Our RO4003C 60mil PCB is perfectly positioned to meet these needs, offering a range of features that ensure unparalleled performance and reliability.

The RO4003C PCB is manufactured using Rogers' woven glass reinforced hydrocarbon/ceramics material, providing low dielectric tolerance and low loss. With a dielectric constant (DK) of 3.38 +/-0.05 at 10GHz and a dissipation factor of 0.0027 at 10GHz, this Rogers substrate guarantees excellent electrical performance. These properties allow for applications with higher operating frequencies, making it ideal for broadband applications.

One of the key industry trends is the demand for stable electrical properties across a wide frequency range. Our RO4003C 60mil PCB delivers precisely that. Its stable electrical properties ensure controlled impedance transmission lines, enabling repeatable design of filters. This stability is further enhanced by its low thermal coefficient of dielectric constant, which provides excellent dimensional stability, ensuring reliable plated through holes.

Another critical aspect in the PCB industry is the need for materials that can withstand varying temperatures during circuit processing. The RO4003C 60mil PCB boasts a low z-axis expansion and in-plane expansion coefficient, ensuring stability over the entire range of circuit processing temperatures. This characteristic is essential for achieving reliable and consistent performance.

In addition to its remarkable technical features, the Rogers 4003C 60mil PCB offers a volume manufacturing process at a competitive price. It can be fabricated using standard glass epoxy processes, making it a cost-effective choice for various applications. Furthermore, it is CAF-resistant, ensuring exceptional reliability even in harsh operating conditions.

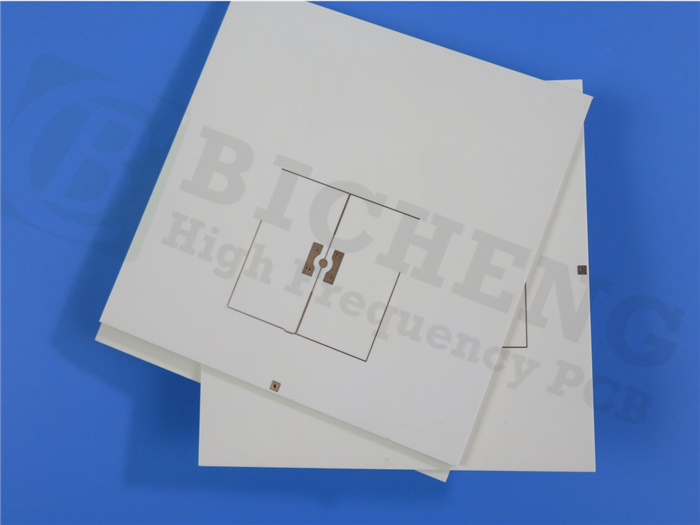

The RO4003C high frequency PCB is a 2-layer rigid board with a finished thickness of 1.6mm. It features copper layers on both sides, with a finished copper weight of 1oz (1.4 mils) on the outer layers. With precise board dimensions of 140mm x 144mm and a minimum trace/space of 5/4 mils, this PCB offers excellent design flexibility. It is finished with immersion gold surface treatment, ensuring optimal performance and longevity.

With 58 components, 173 total pads, and 114 vias, the RO4003C high frequency PCB provides versatility for a wide range of applications. It has been tested to meet the rigorous IPC-Class-2 quality standard, ensuring consistent and reliable performance.

The RO4003C 60mil PCB is now available for order worldwide. For any technical inquiries or to place an order, please contact our dedicated sales team at

As PCB industry supplier, we are delighted to bring you this game-changing product. With the RO4003C 60mil PCB, we are confident that we can meet and exceed your expectations for high-frequency applications. Thank you for your continued support, and we look forward to serving you with our latest offering.
