RT/duroid 6035HTC PCB 20mil:Unleashing Performance and Reliability

  • December 22. 2023

In the ever-evolving world of electronics, the demand for high-performance printed circuit boards (PCBs) is on the rise. To meet the growing needs of advanced applications such as high-power RF and microwave amplifiers, power amplifiers, couplers, filters, combiners, and power dividers, a groundbreaking solution has emerged: the RT/duroid 6035HTC PCB 20mil. This cutting-edge PCB substrate, manufactured using Rogers' state-of-the-art ceramic-filled PTFE composites, sets new standards in thermal management, dielectric performance, and reliability. In this comprehensive blog post, we delve into the intricate details and exceptional features of the RT/duroid 6035HTC PCB 20mil, shedding light on its construction, properties, applications, and more.

Unrivaled Substrate Performance:

The heart of the RT/duroid 6035HTC PCB 20mil lies in its exceptional substrate properties. Crafted from Rogers' renowned ceramic-filled PTFE composites, this cutting-edge PCB substrate offers a host of advantages that drive its superior performance.

With a dielectric constant (DK) of 3.5 +/- 0.05 at 10 GHz/23°C, the RT/duroid 6035HTC PCB ensures reliable signal transmission and minimal loss, even at high frequencies. Its impressively low dissipation factor of 0.0013 at 10 GHz/23°C enables exceptional high-frequency performance, making it an ideal choice for demanding applications.

Thermal management is a critical aspect of PCB design, especially in high-power applications. The RT/duroid 6035HTC PCB excels in this domain with its high thermal conductivity of 1.44 W/m/K at 80°C. This attribute allows for efficient heat dissipation, leading to lower operating temperatures and enhanced reliability.

Moreover, the Rogers 6035HTC PCB exhibits remarkable stability in the face of temperature fluctuations. With a thermal coefficient of er of -66 ppm/°C, it ensures consistent performance across varying environmental conditions. The balanced coefficient of thermal expansion (CTE) values in the X-, Y-, and Z-axes (19 ppm/°C, 19 ppm/°C, and 39 ppm/°C, respectively) enhance the PCB's structural integrity and minimize the risk of failure due to thermal stress.

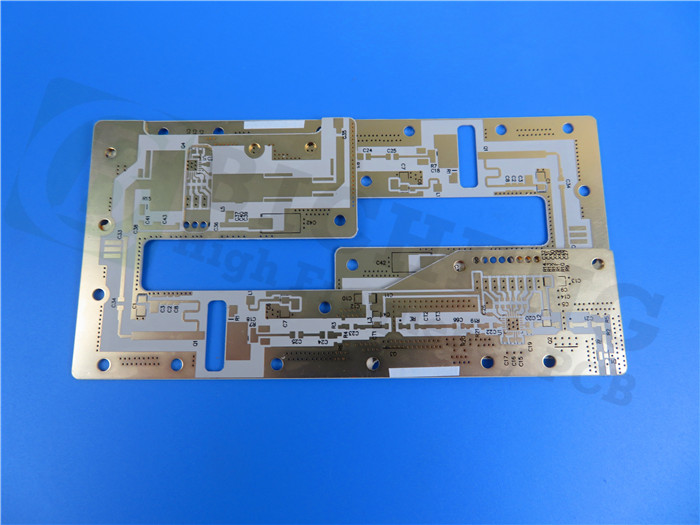

Rogers 6035HTC PCB

Advanced Features for Optimal Performance:

The Rogers 6035HTC2omilPCB boasts a range of advanced features that contribute to its optimal performance and reliability.

One of its standout features is the low loss tangent, which enables excellent high-frequency performance. This characteristic allows for the efficient propagation of signals with minimal distortion, making the PCB suitable for applications where signal integrity is paramount.

The use of a thermally stable low-profile and reverse-treated copper foil in the RT/duroid 6035HTC PCB 20mil further enhances its performance. This unique copper foil exhibits lower insertion loss and excellent thermal stability of traces, ensuring the integrity of high-frequency signals while minimizing signal attenuation and distortion.

An advanced filler system incorporated into the RT/duroid 6035HTC 20mil laminate PCB  provides significant benefits during fabrication. It improves drillability and extends tool life compared to alumina-containing circuit materials, reducing manufacturing costs and improving overall production efficiency.

Unveiling the Construction Details:

Understanding the construction details of the RT/duroid 6035HTC PCB is crucial to appreciate its design flexibility and compatibility with various applications.

The PCB features a 2-layer rigid design with a stackup consisting of copper layer 1 (35 μm), RT/duroid 6035HTC substrate (0.508 mm or 20mil), and copper layer 2 (35 μm). This configuration strikes a balance between performance and manufacturability, making it suitable for a wide range of applications.

With a finished board thickness of 0.6 mm and a finished copper weight of 1 oz (1.4 mils) on the outer layers, the PCB offers durability without compromising its electrical performance. The 20 μm via plating thickness ensures reliable electrical connections between layers.

The RT/duroid 6035HTC 0.508mm substrate PCB adheres to the IPC-Class-2 standard, ensuring stringent quality control and reliability. Additionally, its compatibility with Gerber RS-274-X artwork format simplifies the manufacturing process, enabling seamless integration into existing production workflows.

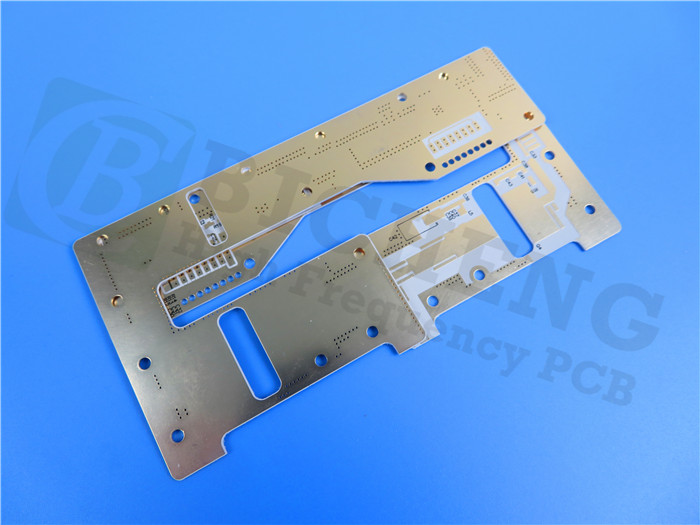

RT/duroid 6035HTC 20mil laminate PCB

Applications and Global Availability:

The RT/duroid 6035HTC high frequency PCB finds its niche in a wide array of applications, thanks to itsremarkable performance and reliability. Some of the typical applications where this PCB excels include high-power RF and microwave amplifiers, power amplifiers, couplers, filters, combiners, and power dividers. Its high thermal conductivity and excellent dielectric properties make it an ideal choice for demanding environments that require efficient heat dissipation and signal integrity.

The global availability of the Rogers 6035HTC PCB ensures that engineers and manufacturers worldwide can benefit from its exceptional performance and reliability. With its widespread availability, it becomes easier for design teams to incorporate this cutting-edge PCB substrate into their projects, regardless of their geographical location.

Conclusion :

In summary, the RT/duroid 6035HTC high frequency boards stands as a game-changer in the realm of high-performance PCB substrates. Its exceptional dielectric properties, high thermal conductivity, low loss tangent, and advanced construction details make it an ideal choice for a wide range of applications, including high-power RF and microwave amplifiers. TheRogersRT/duroid 6035HTC PCB's compatibility with industry standards, such as IPC-Class-2, and its global availability further solidify its position as a reliable and versatile solution for demanding electronic designs.

For technical inquiries or to learn more about the RT/duroid 6035HTC 20MIL PCB, please reach out to the dedicated team at Their expertise and support will ensure that you make the most of this cutting-edge PCB substrate, unlocking new levels of performance and reliability in your electronic designs.
