How Does RO3035 PCB Material Ensure Superior Signal Integrity in RF Designs?

Introduction to RO3035 High Frequency PCB

Rogers RO3035 laminates are advancedhigh-frequency circuit materials engineered for superior performance in RF and microwave applications. These laminates are constructed with a ceramic-filled, PTFE (polytetrafluoroethylene) base, offering exceptional electrical and mechanical properties. Designed to meet the rigorous demands of modern high-frequency designs, RO3035 materials enable the development of multi-layer PCBs without compromising structural integrity or reliability.

A standout feature of Rogers 3035 is its thermal expansion coefficient, which is precisely matched to that of copper. This critical alignment ensures outstanding dimensional stability, preventing warping, delamination, or other distortions that could degrade performance in high-frequency circuits. Whether used in aerospace, telecommunications, or advanced wireless systems, RO3035 PCBs deliver consistent, high-speed signal transmission with minimal loss.

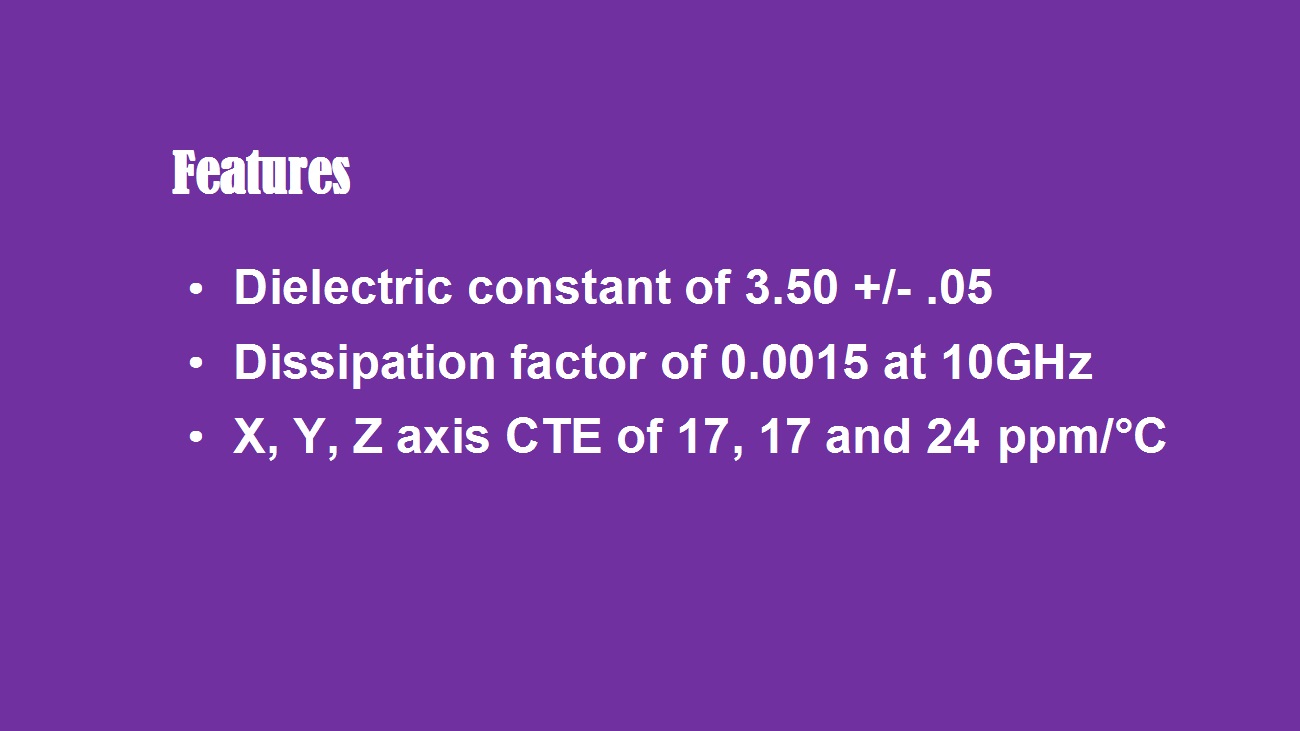

Key Features of RO3035 High Frequency PCB

1. Optimized Dielectric Properties for High-Speed Signals

RO3035 substrate boast a dielectric constant (Dk) of 3.50±0.05, ensuring precise impedance control and signal consistency. This tight tolerance is crucial for high-frequency applications where even minor variations can impact performance. Additionally, the material exhibits an ultra-low dissipation factor (Df) of 0.0015 at 10 GHz, significantly reducing signal loss and maintaining superior signal integrity across a broad frequency spectrum.

2. Exceptional Thermal Stability

Thermal management is a critical factor in high-frequency PCB performance. RO3035 laminates feature a low coefficient of thermal expansion (CTE) in all axes:

• X-axis: 17 ppm/°C
• Y-axis: 17 ppm/°C
• Z-axis: 24 ppm/°C

This balanced CTE minimizes stress during thermal cycling, preventing warping and ensuring long-term reliability—especially in multi-layer PCB configurations.

3. High-Frequency Performance Up to 40 GHz

RO3035 is engineered to perform reliably in extremely high-frequency environments (up to 30-40 GHz), making it ideal for cutting-edge applications such as 5G networks, millimeter-wave radar, and satellite communications. Its stable electrical properties ensure consistent performance even under demanding operating conditions.

4. Rolled Copper for Enhanced Signal Integrity

RO3035 high frequency PCBs are available with rolled copper foil, which provides a smoother surface compared to standard electrodeposited copper. This smoothness reduces conductor loss, minimizes insertion loss, and enhances overall signal integrity—critical for high-speed digital and RF applications.

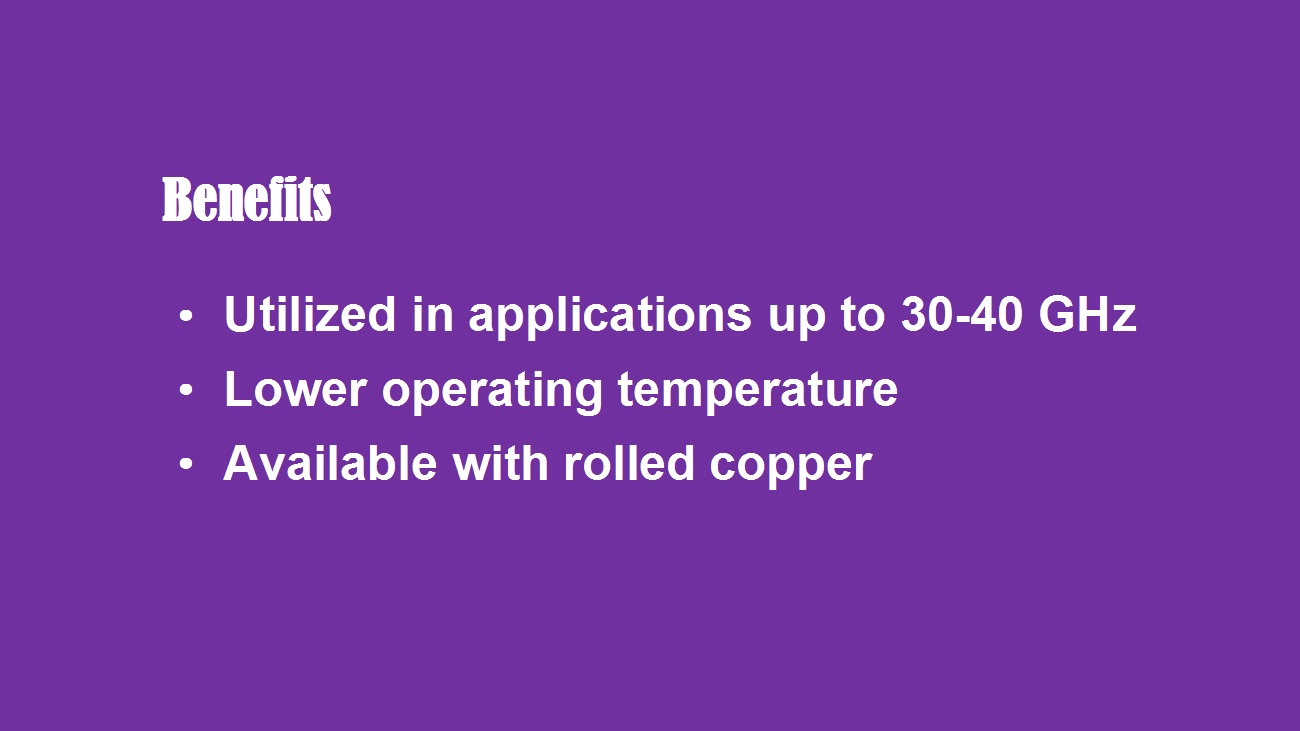

Benefits of Choosing RO3035 High Frequency PCB

1. Superior Reliability in High-Power Applications

RO3035 materials operate efficiently at lower temperatures, improving reliability in high-power circuits such as power amplifiers and RF transmitters. Their excellent thermal conductivity helps dissipate heat effectively, reducing the risk of overheating and component failure.

2. Versatility in PCB Design

RO3035 laminates support a wide range of PCB configurations, including:

• Single-layer boards
• Double-layer boards
• Multi-layer boards

Hybrid PCBs (combining different materials for optimized performance)

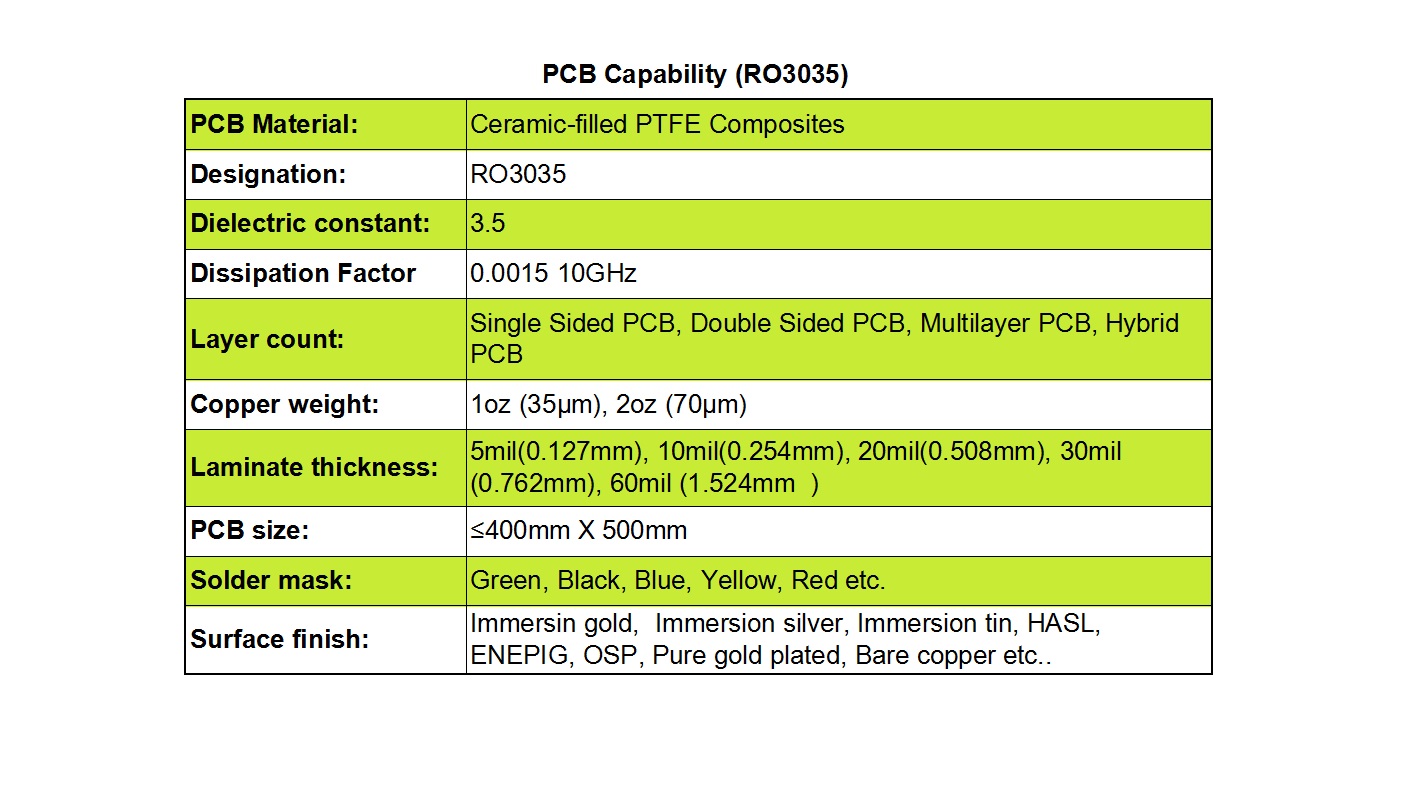

3. Customizable Thickness and Dimensions

We offer RO3035 PCBs in various thicknesses to suit different design requirements:

• 5 mils, 10 mils, 20 mils, 30 mils, and 60 mils
• Copper weights of 1 oz and 2 oz for optimal current handling

The maximum panel size available is 400mm x 500mm, ensuring compatibility with a broad range of applications.

4. Aesthetic and Functional Customization

To meet both functional and aesthetic needs, we provide multiple options for:

• Solder mask colors (green, black, blue, yellow, red, and more)
• Surface finishes, including:

• Immersion gold (ENIG)
• Immersion silver
• Immersion tin
• HASL (Hot Air Solder Leveling)
• ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold)
• OSP (Organic Solderability Preservative)

Applications of RO3035 High Frequency PCB

Rogers 3035 PCBs are widely used in industries requiring high-speed signal transmission and thermal stability. Key applications include:

1. 5G and Millimeter-Wave Technology

RO3035 is ideal for 5G base stations, massive MIMO (Multiple Input Multiple Output) antennas, and sub-6GHz/mmWave applications, where low loss and high-frequency stability are essential.

2. Aerospace and Defense Systems

Used in radar systems, satellite communications, and avionics, RO3035 PCBs ensure reliable performance in extreme environments.

3. Automotive Radar and ADAS

Advanced driver-assistance systems (ADAS) and automotive radar (77 GHz) benefit from RO3035’s high-frequency capabilities and thermal resilience.

4. Medical and Test Equipment

High-precision medical imaging devices and RF test equipment rely on RO3035 for consistent signal integrity and durability.

Why Choose Us for Your RO3035 High Frequency PCB Needs?

As a reliable RO3035 High Frequency PCB supplier, we specialize in manufacturing high-performance PCBs tailored to your exact specifications. Our expertise in high-frequency materials, advanced fabrication techniques, and strict quality control ensures that every PCB meets the highest industry standards.

Whether you need prototypes or high-volume production, we provide:

• Fast turnaround times
• Competitive pricing with good quality
• Technical support for design optimization

Contact Us Today for Your RO3035 PCB Requirements!

If you’re looking for a reliable RO3035 High Frequency PCB supplier, we’re here to help. Let’s discuss your project requirements and deliver a solution that meets your performance, reliability, and budget needs.

Get a quote now and experience the difference with our high-quality RO3035 PCBs!
