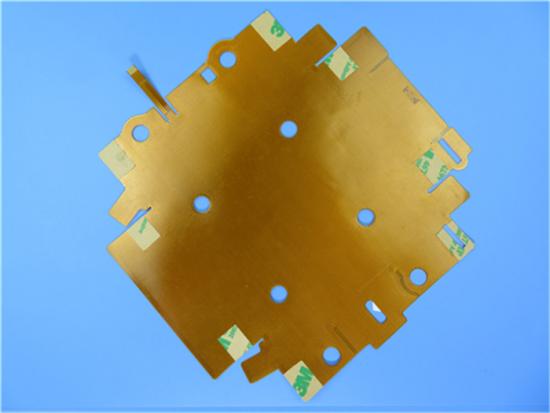

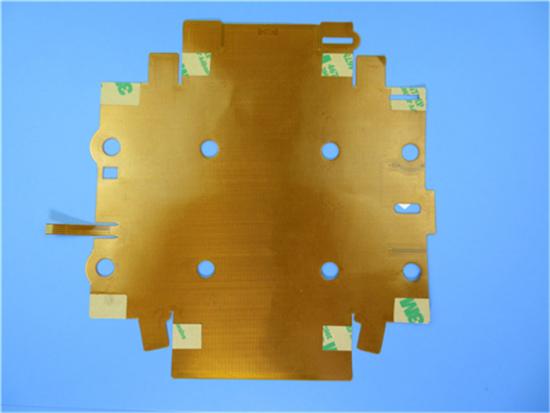

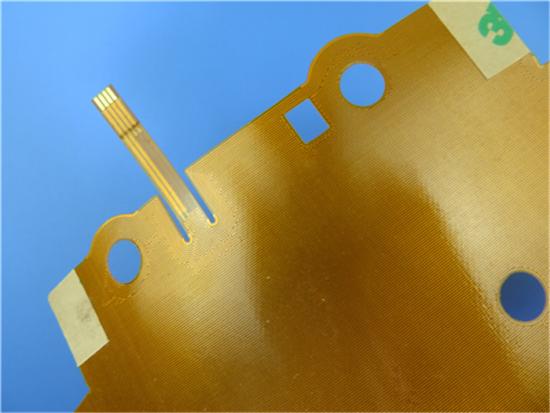

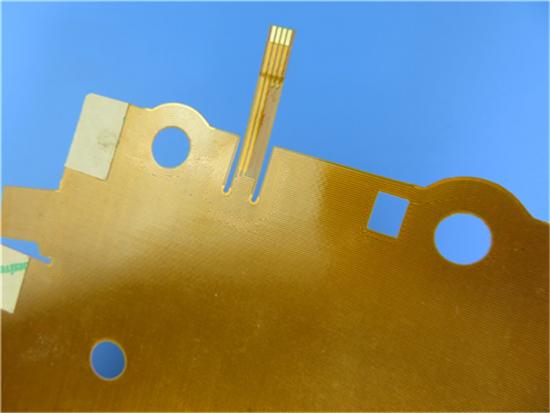

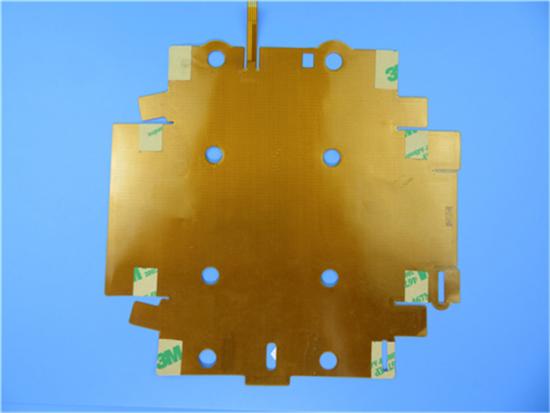

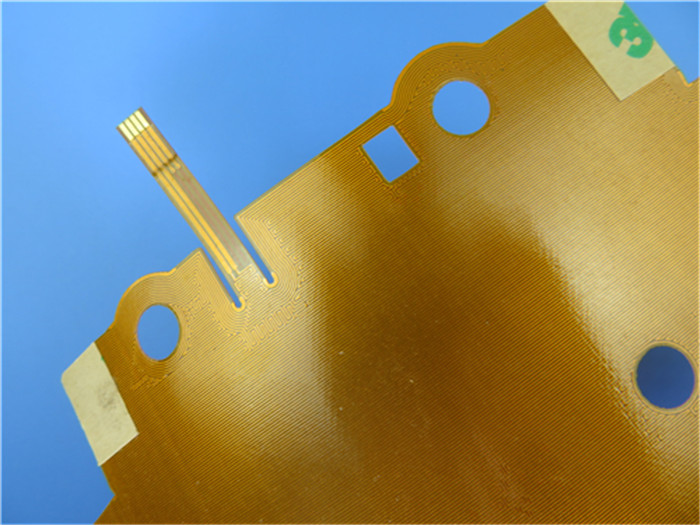

Large Flexible Circuits Fine Line FPC With Coil Design

This type of flexible PCB is build on polyimide with fine line coils for the application of GPS tracking systems.

  • Item NO.:

    BIC-263-v66.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$1.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

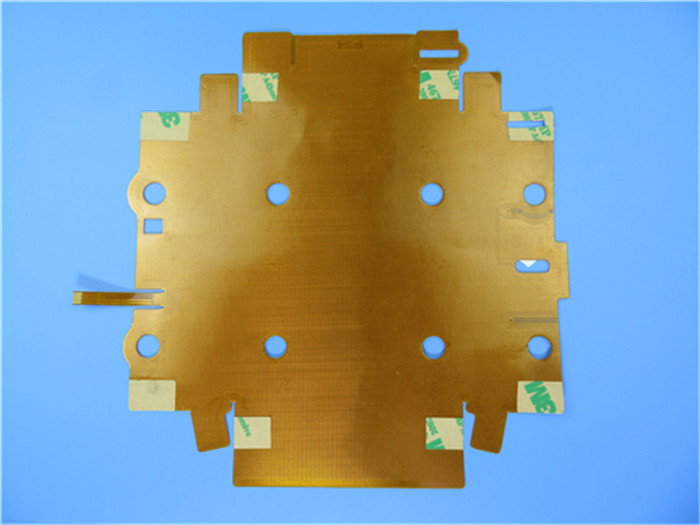

Large Flexible Circuits Fine Line FPC With Coil Design

(FPC’s are custom-made products, the picture and parameters shown are just for reference)


General description:

It’s a 2 layer board at 0.15mm thick. The base laminate is from Shengyi. It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. Polyimide stiffener is applied on the inserting part.


Flexible PCB


Parameter and data sheet:


Number of Layers 2
Board Size 160 x 165mm=1PCS
Board Type Flexbile cirucit
Board Thickness 0.15mm +/-10%
Board Material Polyimide (PI) 25um
Board Material Supplier ITEQ
Tg Value of Board Material  60℃
PTH Cu thickness ≥20 um
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 um (1oz)
Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 um
Stiffener NO
Type of Silkscreen Ink NO
Supplier of Silkscreen NO
Color of Silkscreen NO
Number of Silkscreen NO
Mininum Trace (mil) 4 mil
Minimum Gap(mil) 4 mil
Surface Finish Immersion Gold
RoHS Required Yes
Famability 94-V0
Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function  100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2


Flexible PCB


Features and benefits:


Excellent flexibility

Reducing the volume

Weight reduction

Consistency of assembly

Increased reliability

The end can be whole soldered

Low cost

Continuity of processing

Quick and on-time delivery

Make delivery on time. We keep higher than 98% on-time-delivery rate.


Applications:


Keypad FPC, Industrial control computer soft board, consumer ETC (Electronic Toll Collection ) soft board,


Basic Types of Flexible Circuit:


There are five basic types of flexible circuits as described below:


1. Single-Sided Flexible Circuits

This is the simplest type, and consists of a thin and flexible base material to which a copper foil is laminated by means of an adhesive. The finished circuit is frequently provided with a covercoat bonded to the copper side by means of an adhesive.


2. Double-Sided Flexible Circuits

As the name suggests, the circuit consists of a thin and flexible base material with copper foil laminated to each side. The outer sides of the finished circuits are frequently provided with covercoats bonded to the outer sides (copper).


3. Multilayer Flexible Circuits

A multilayer flexible circuit consists of a number of thin and flexible base laminates and copper foils laminated together by means of adhesive, in very much the same way as rigid multilayer boards. Also it is common practice to bond covercoats to the outer sides (copper).


4. Flex-Rigid Circuits

A flex-rigid circuit is a combination of rigid boards and flexible circuits, the latter creating flexible interconnects between the rigid boards to which they are laminated by means of bond plies.


5. Flexible Circuits with Rigid Areas

In some cases, the flexible circuit must support a number of relatively heavy components or even a connector part. Therefore it is necessary to reinforce such an area. This is accomplished by bonding a stiffener to that area. The stiffener can be an extra layer of not too thin polyimide, or it can be a glass/epoxy laminate.
