Hybrid PCB
Hybrid PCB
Products
Home Flexible Printed Circuit Single Sided Flexible PCBs FPC Polyimide Substrate 3M Tape Tesa Tape

Single Sided Flexible PCBs FPC Polyimide Substrate 3M Tape Tesa Tape

This type of flexible printed circuit is for the application of calculator keypad. It’s a single layer FPC at 0.15mm thick.



  • Item NO.:

    BIC-258-v61.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$1.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail


Single Sided Flexible PCBs FPC On Polyimide Substrate With 3M Tape Tesa Tape

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)


General description:


It’s a single layer FPC at 0.15mm thick. The base laminate is from Shengyi, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. 3M Tape is applied on the back side.


FPC with 3M Tape


Parameter and data sheet:


Size of Flexible PCB 30.53 X 59.37mm
Number of Layers 1
Board Type Flexible PCB
Board Thickness 0.150mm
Board Material Polyimide 25µm
Board Material Supplier ITEQ
Tg Value of Board Material  60℃
PTH Cu thickness N/A
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 µm
Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material Polyimide
Stiffener Thickness 0.2mm
Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1
Peeling test of Coverlay No peelable
Legend Adhesion 3M 90℃No peeling after Min. 3 times test
Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0
Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function  100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2


Features and benefits:


Excellent flexibility

Reducing the volume

Weight reduction

Consistency of assembly

Increased reliability

The end can be whole soldered

Low cost

Continuity of processing

Professional and experienced engineers

More than 18 years of experience


Applications:


Touch screen, LED display soft board, Tablet antenna soft board


Adhesives

Base laminates for rigid printed circuit boards are copper foils laminated together with the base materials, the adhesive coming from the prepreg material during lamination. Contrary to this is the flexible circuit where the lamination of the copper foil to the film material is achieved by means of an adhesive system.

It is, however, necessary to distinguish between two main systems of adhesive, namely thermoplastic and thermoset adhesives. The choice is dictated partly by the processing, and partly by the application of the finished flexible circuit.


Sheets Adhesives / 3M Tape / Tesa Tape

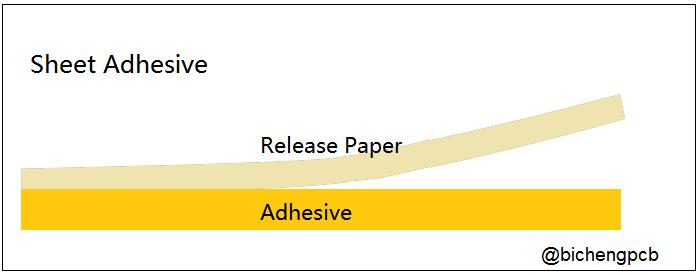

A sheet adhesive, frequently in the form of a low-flow acrylic, is an adhesive "cast" on a polypropylene paper from which the adhesive easily can be removed. The application of sheet adhesives is frequently used for bonding flexible circuits into multilayer flexible circuits, or for attaching stiffeners to flexible circuits.

\Sheet Adhesive 3M Tape Tesa Tape


More Displays of Flexible Circuits with 3M Tape:


More FPC with 3M tape  More FPC with 3M tape  More FPC with 3M tape  More FPC with 3M tape

More FPC with 3M tape
