RO3010 High Frequency PCB: An Advanced Circuit Material for High-Frequency, Stable Performance

  • January 17. 2024

The RO3010 PCB is an advanced circuit material that offers exceptional stability and performance. Made from ceramic-filled PTFE composites, this PCB has a higher dielectric constant and is suitable for a wide range of applications. In this blog, we will explore the features, benefits, construction details, and typical applications of the RO3010 10mil PCB.


The Rogers RO3010 PCB offers several notable features that make it an excellent choice for various applications. Here are some key features:

1. Rogers RO3010 ceramic-filled PTFE composites:

The use of ceramic-filled PTFE composites gives the PCB a higher dielectric constant, enabling it to perform well even at high frequencies.

2. Dielectric constant of 10.2+/- .30 at 10 GHz/23°C:

With a dielectric constant of 10.2, the RO3010 PCB provides excellent signal performance in high-frequency applications.

3. Dissipation factor of 0.0022 at 10 GHz/23°C:

The low dissipation factor of the RO3010 PCB ensures minimal signal loss and efficient signal transmission.

4. Low Coefficient of Thermal Expansion:

The RO3010 PCB has a low coefficient of thermal expansion, which ensures dimensional stability and compatibility with copper.

5. Td> 500°C:

The high thermal decomposition temperature of the RO3010 PCB makes it suitable for applications where high temperatures are involved.

6. Thermal Conductivity of 0.95 W/mK:

The excellent thermal conductivity of the RO3010 PCB allows for efficient heat dissipation, making it suitable for power applications.

7. Moisture Absorption of 0.05%:

The low moisture absorption of the RO3010 PCB ensures its stability even in humid environments.

8. -40℃ to +85℃ operation:

The RO3010 PCB can operate within a wide temperature range, making it suitable for various environments.


The Rogers 3010 PCB offers several benefits that make it a preferred choice for circuit miniaturization and volume manufacturing. Here are some key benefits:

1. Dimensional stability: The RO3010 PCB exhibits dimensional stability, thanks to its expansion coefficient matched to copper. This ensures that the PCB maintains its shape and performance over time.

2. Economical laminate pricing: The RO3010 PCB is competitively priced, making it suitable for volume manufacturing processes. This allows for cost-effective production without compromising on quality.

3. Suitable for multi-layer board designs: The RO3010 PCB is well-suited for use in multi-layer board designs, offering flexibility and compatibility with complex circuit layouts.

Rogers RO3010 PCB

PCB Stackup and Construction Details:

The RO3010 0.254mm laminate PCB is a 2-layer rigid PCB constructed with the following specifications:

1. Copper_layer_1: 35 μm

2. Rogers RO3010 Substrate: 10mil (0.254mm)

3. Copper_layer_2: 35 μm

The PCB's dimensions are 80.1mm x 56.74mm, and it has a minimum trace/space of 4/4 mils. The minimum hole size is 0.3mm, and there are no blind vias. The finished board thickness is 0.37mm, with a finished Cu weight of 1 oz (1.4 mils) on the outer layers. The via plating thickness is 20 μm. The surface finish is immersion gold, and the top silkscreen is white. The PCB does not have a bottom silkscreen or top/bottom solder masks. Prior to shipment, the PCB undergoes a thorough 100% electrical test to ensure its functionality.

PCB Statistics:

The RO3010 PCB consists of 24 components and a total of 71 pads. It has 51 through-hole pads, 23 top SMT pads, and no bottom SMT pads. Additionally, it has 67 vias and 3 nets.

Type of Artwork Supplied and Accepted Standard:

The RO3010 PCB is supplied in Gerber RS-274-X format, which is widely accepted in the industry as a standard for PCB manufacturing.


The Rogers RO3010 PCB is available worldwide, making it accessible to customers across different regions.

Typical Applications:

The RO3010 PCB has various applications across industries. Some typical applications include:

1.Automotive radar applications:

The high-frequency performance and stability of the RO3010 PCB make it ideal for automotive radar systems.

2.Global positioning satellite antennas:

The RO3010 PCB's excellent signal performance and stability make it suitable for GPS antenna applications.

3.Cellular telecommunications systems - power amplifiers and antennas:

The RO3010 PCB enables efficient signal transmission and stable performance in cellular telecommunications systems.

4. Patch antenna for wireless communications:

The RO3010 PCB's high dielectric constant and dimensional stability make it suitable for patch antenna designs in wireless communication systems.

5. Direct broadcast satellites:

The RO3010 PCB's high-frequency performance and stability make it ideal for direct broadcast satellite applications.

6. Datalink on cable systems:

The RO3010 PCB's low dissipation factor and excellent signal transmission characteristics make it suitable for data link applications in cable systems.

7. Remote meter readers:

The RO3010 PCB's stability and durability make it an excellent choice for remote meter reading systems.

8. Power backplanes:

The RO3010 PCB's high thermal conductivity and stability make it suitable for power backplane applications.

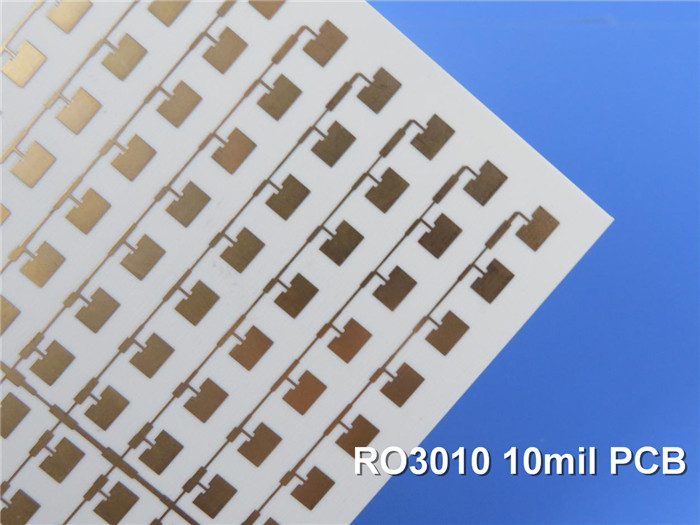

RO3010 high frequency PCB

In conclusion, the RO3010 high frequency PCB is an advanced circuit material that offers exceptional stability, high dielectric constant, and excellent signal performance. Its dimensional stability, competitive pricing, and suitability for volume manufacturing processes make it a preferred choice for various applications. Whether in automotive, telecommunications, or satellite systems, the RO3010 PCB provides reliable performance and durability. With its worldwide availability and compatibility with industry standards, the RO3010 10mil substrate PCB is a reliable PCB solution for demanding applications.
