TLY-5 PCB 60mil: Unleashing High Performance and Stability for Advanced Applications

  • January 10. 2024

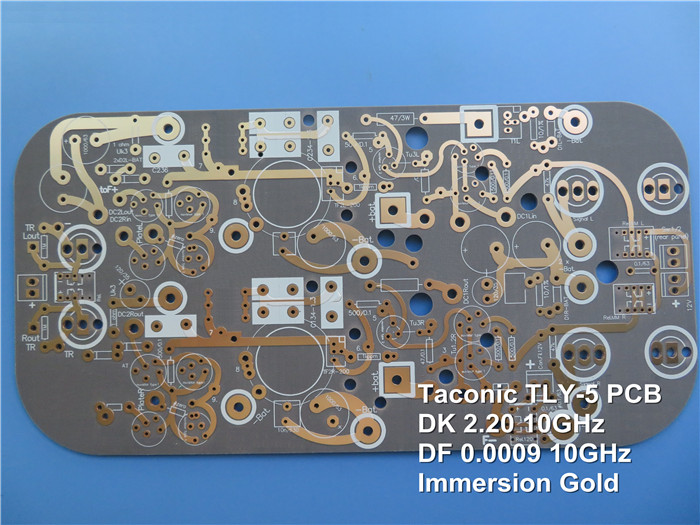

In the fast-paced world of electronics, where high performance and reliability are paramount, the TLY-5 PCB 60mil stands out as a game-changer. Engineered with lightweight woven fiberglass and exceptional dimensional stability, the Taconic TLY laminate sets new benchmarks for high-volume manufacturing. From automotive radar systems to millimeter-wave antennas, the TLY-5 60mil PCB delivers unparalleled performance and stability, making it the ultimate choice for cutting-edge applications.

Unveiling the Features:

The TLY-5 high frequency PCB is packed with an array of features that elevate its performance to new heights. Let's explore these features in detail:

1. Dielectric Constant and Loss Tangent:

With a dielectric constant of 2.2 and a tight tolerance of 0.02 at 10 GHz/23°C, the TLY-5 PCB ensures precise signal propagation and impedance control. This level of accuracy guarantees reliable data transfer and signal integrity, crucial for high-frequency applications. Additionally, its low loss tangent of 0.0009 at 10 GHz signifies minimal signal loss, enabling efficient transmission and reception.

2. Density and Moisture Absorption:

Weighing in at a specific gravity of 2.19 g/cm3, the TLY-5 PCB 60mil strikes the perfect balance between strength and weight. Its lightweight structure optimizes space utilization, making it ideal for compact electronic systems. Moreover, with a low moisture absorption rate of 0.02%, the PCB retains its electrical and mechanical properties even in humid environments, ensuring long-term reliability.

3. Coefficient of Thermal Expansion (CTE):

The TLY-5 PCB exhibits a CTE of 26 ppm/°C in the X-axis, 15 ppm/°C in the Y-axis, and 217 ppm/°C in the Z-axis. These balanced CTE values ensure superior dimensional stability, reducing the risk of warping or cracking due to temperature variations. This stability is vital for maintaining the integrity of the PCB in demanding environments.

4. Dimensional Stability and Copper Peel Strength:

Thanks to its woven fiberglass construction, the TLY-5 PCB offers exceptional dimensional stability. This stability minimizes any potential changes in the PCB's shape or size, ensuring reliable and consistent performance over time. Additionally, the PCB boasts high copper peel strength, enabling robust interconnectivity and reliable signal transmission.

5. Uniform and Consistent Dielectric Constant:

The TLY-5 PCB guarantees a uniform and consistent dielectric constant (DK) throughout the laminate. This uniformity eliminates any variations in signal propagation, reducing the risk of impedance mismatch and signal distortion. The result is enhanced signal integrity and improved overall performance.

6. Unraveling the Construction Details:

The TLY-5 PCB is meticulously constructed to meet the demanding requirements of high-frequency applications. Let's delve into its construction details:


PCB Stackup:

The TLY-5 PCB 60mil features a 2-layer rigid PCB stackup. It consists of a top copper layer with a thickness of 35 μm, by a TLY-5 60mil laminate with a thickness of 1.524 mm (60mil), and finally, a bottom copper layer also measuring 35 μm. This stackup design ensures optimal signal integrity, impedance control, and mechanical stability.

1. Precise Board Dimensions:

The TLY-5 PCB 60mil comes in a compact size, with board dimensions of 127.72mm x 97.07 mm. Its precise dimensions, with a tolerance of +/- 0.15mm, allow for easy integration into standard board housings and guarantee compatibility with electronic systems of varying sizes.

2. High-Density Design Capability:

With a minimum trace/space requirement of 5/6 mils, the TLY-5 PCB enables high-density routing and compact designs. This capability is crucial for modern electronic systems that demand miniaturization without compromising performance. The minimum hole size of 0.4mm facilitates the use of standard drill sizes for vias and component mounting holes, streamlining the manufacturing process.

3. Immersion Gold Surface Finish:

The TLY-5 PCB 60mil features an immersion gold surface finish, which offers numerous benefits. The gold coating ensures excellent solderability, enhances the PCB's resistance to oxidation and corrosion, and facilitates efficient wire bonding. Furthermore, the smooth and flat surface provided by the gold finish enables precise component placement, resulting in reliable and robust solder joints.

Quality Assurance and Typical Applications:

The TLY-5 PCB is designed and manufactured to meet the highest quality standards. Here's a glimpse into its quality assurance measures and typical applications:

IPC-Class-2 Standard:

The TLY-5 60milPCB  adheres to the IPC-Class-2 standard, ensuring that it meets stringent quality requirements. This standard guarantees the reliability, performance, and longevity of the PCB, making it a trusted choice for critical applications.

100% Electrical Testing:

Prior to shipment, each TLY-5 PCBTaconic60milsubstrateundergoes rigorous electrical testing to ensure its functionality and performance. This comprehensive testing verifies the integrity of the circuitry, the accuracy of signal propagation, and the absence of any defects or faults. By conducting 100% electrical testing, we provide our customers with peace of mind and assurance of a reliable product.

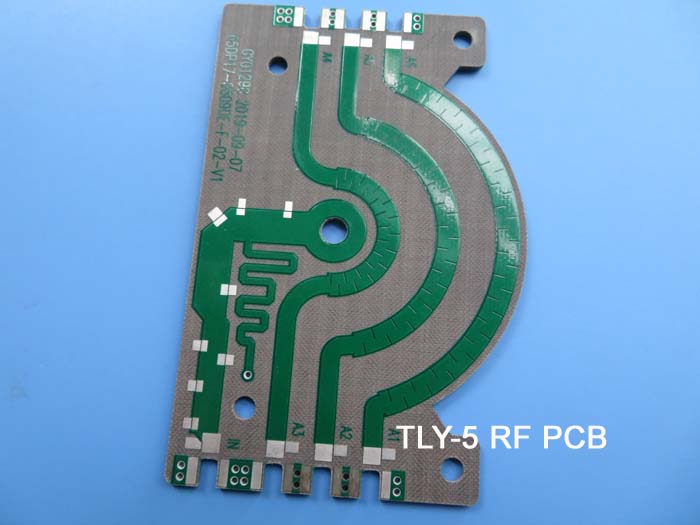

Taconic TLY-5 DK2.2 PCB

Wide Range of Applications:

The Taconic TLY-5 DK2.2 PCB finds application in a variety of high-frequency systems. Some typical applications include:

1. Automotive Radar:

The TLY-5 PCB is well-suited for automotive radar systems operating at 77 GHz. Its superior performance, stability, and low dissipation factor make it an ideal choice for radar applications, ensuring accurate detection and reliable performance.

2. Satellite/Cellular Communications:

The high-frequency capabilities of the TLY-5 PCB make it suitable for satellite and cellular communication systems. Its low loss tangent and uniform dielectric constant enable efficient signal transmission and reception, contributing to reliable and high-quality communication.

3. Power Amplifiers:

Power amplifiers require stable and high-performance PCBs to ensure optimal power delivery. The TLY-5 PCB, with its dimensional stability, low moisture absorption, and high copper peel strength, provides a solid foundation for power amplifier designs, resulting in efficient and reliable amplification.

4. LNBs, LNAs, LNCs:

The TLY-5 PCB is a preferred choice for Low Noise Block (LNB), Low Noise Amplifier (LNA), and Low Noise Converter (LNC) applications. Its low loss tangent and consistent dielectric constant enable these components to achieve low noise figures and high sensitivity, crucial for satellite and communication systems.

5. Aerospace:

The aerospace industry demands PCBs that can withstand extreme conditions and provide reliable performance. The TLY-5 PCB, with its stability, low moisture absorption, and high copper peel strength, excels in aerospace applications, ensuring robust and dependable operation.

6. Ka, E, and W Band Applications:

The TLY-5 PCB l is well-suited for high-frequency applications in the Ka, E, and W bands. Its tight dielectric constant tolerance, low loss tangent, and uniform DK enable accurate signal propagation, contributing to the success of these demanding applications.


The TLY-5 PCB 60mil sets a new standard in performance and stability for high-frequency applications. With its lightweight woven fiberglass construction, exceptional dimensional stability, and outstanding electrical characteristics, it surpasses traditional PCB materials. Whether it's automotive radar, satellite communications, power amplifiers, or aerospace applications, the TLY-5 PCB 60mil delivers unparalleled results. Embrace the future of electronic design and experience the power of the Taconic TLY-5 PCB to unlock a new level of performance and reliability in your applications. Trust in its quality, benefit from its features, and explore the endless possibilities it offers.
