Rogers RT/duroid 5870 31mil PCB: Redefining Reliability and Performance in Electronics

  • September 13. 2023
In the fast-paced world of electronics, staying ahead of the competition requires embracing cutting-edge technologies. One such innovation that has been making waves is the Rogers RT/duroid 5870 board. With its exceptional performance, this duroid 5870 is reshaping the industry and opening up new possibilities for engineers and designers. In this article, we will delve into the depths of this groundbreaking technology and explore how it can elevate your designs to unprecedented levels.

Our high-performance Rogers RT/duroid 5870 glass microfiber reinforced PTFE composites PCB is being introduced. This 2-layer rigid PCB has been constructed using state-of-the-art materials and processes to ensure exceptional performance.

The stackup of this PCB consists of a copper layer on top, by a 0.787 mm 31mil RT/duroid 5870 substrate, and another copper layer at the bottom. The copper layers have a thickness of 35 μm each, providing excellent conductivity.

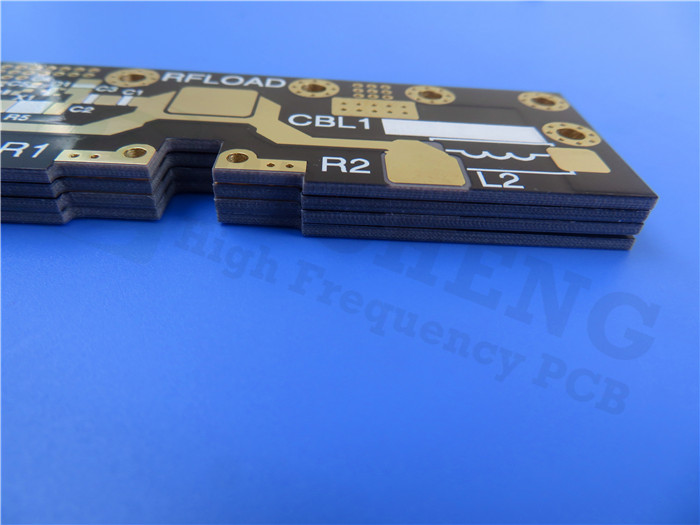

31mil RT/duroid 5870 substrate PCB

Careful attention has been given to the construction details to meet the highest standards. The duroid 5870 high frequency PCB dimensions are 315.12mm x 139.85 mm, and three different types are available with a tight tolerance of +/- 0.15mm. The minimum trace/space has been set at 5/6 mils, allowing for intricate and precise circuitry. The minimum hole size has been determined to be 0.3mm, providing flexibility for various components. There are no blind vias in this PCB.

With a finished board thickness of 0.91mm and a finished copper weight of 1oz (1.4 mils) on the outer layers, this duroid 5870 PCB strikes the perfect balance between durability and performance. The via plating thickness measures 20 μm, ensuring reliable connections throughout the board. The surface finish has been chosen to be immersion gold, providing excellent protection against oxidation and enhancing solderability.

For ease of use, it has been decided not to include a top or bottom silkscreen. The top and bottom solder mask have both been applied in green, providing visual clarity and protection. Each PCB undergoes a 100% electrical test prior to shipment, guaranteeing quality and reliability.

In terms of statistics, this PCB hosts 102 components and a total of 240 pads. There are 126 thru-hole pads and 114 top SMT pads, making it versatile for various assembly requirements. Additionally, there are 78 vias and 6 nets, ensuring optimal connectivity for your designs.

Unleashing Unparalleled Performance:

Rogers RT/duroid 5870 PCB boasts remarkable dielectric properties, making it a game-changer in the electronics domain. With a dielectric constant of 2.33, thisRT/duroid 5870 material ensures optimal signal integrity and minimal signal loss. Whether you are working with high-frequency applications or demanding digital circuits, this exceptional dielectric constant delivers unparalleled performance, ensuring your designs are on the cutting edge.

Exploring Dissipation Factor and Thermal Coefficient:

Another crucial aspect of any PCB is its dissipation factor and thermal coefficient. Rogers RT/duroid 5870 PCB excels in this area, with a dissipation factor as low as 0.0005. This remarkable characteristic minimizes energy loss and ensures efficient power transfer within your circuit. Additionally, with a thermal coefficient of -115 ppm/℃, this PCB displays remarkable stability over a wide temperature range, making it ideal for applications where thermal management is critical.

duroid 5870 PCB

Analyzing Conductivity and Resistivity:

When it comes to conductivity and resistivity, Rogers RT/duroid 5870 PCB stands out from the crowd. With a volume resistivity of 2 x 10^7 Mohm cm and a surface resistivity of 3 x 10^7 Mohm, this PCB ensures reliable electrical performance, reducing the risk of signal degradation or interference. This exceptional conductivity paves the way for high-speed data transmission and optimal circuit functionality.

Unlocking Mechanical Strength and Modulus:

Robust mechanical strength is essential for any PCB, and Rogers RT/duroid 5870 PCB delivers in this aspect. With a tensile modulus of 1300 MPa at 23℃ and 490 MPa at 100℃, this PCB can withstand the rigors of daily use, ensuring long-lasting performance. Additionally, the ultimate stress and strain values of this PCB make it highly resilient, even under challenging conditions.

Moisture Absorption and Thermal Conductivity Insights:

For applications exposed to varying environmental conditions, understanding moisture absorption and thermal conductivity is crucial. Rogers RT/duroid 5870 PCB demonstrates a low moisture absorption rate of just 0.02%, safeguarding against performance degradation in humid environments. Moreover, with a thermal conductivity of 0.22 W/m/k, this PCB efficiently dissipates heat, preventing overheating and ensuring reliable operation.

Evaluating Thermal Expansion and Td:

Thermal expansion often poses challenges in PCB design, but RogersRT/duroid 5870 tackles this issue head-on. With a coefficient of thermal expansion ranging from 22 to 173 ppm/℃, this PCB ensures dimensional stability over a wide temperature range, minimizing the risk of component failure. Moreover, with a Td (thermal decomposition temperature) of 500℃, this PCB can withstand high-temperature environments, making it suitable for demanding applications.

The artwork supplied for this RT/duroid 5870 31mil PCB is Gerber RS-274-X, a widely accepted standard in the industry. IPC-Class-2 standards are to ensure the highest quality in manufacturing. Our products are available worldwide, and if there are any technical questions or inquiries, our dedicated sales representative, Jane, can be contacted at

Experience the exceptional performance of our Rogers RT/duroid 5870 PCB. Trust in our expertise for your next project.
