TLX-9 PCB 20mil--What Are the Advantages of TLX-9 PCB Compared to Other Materials?

  • March 20. 2024


Introducing TLX-9 PCB 20mil, a high-performance composite material that revolutionizes the world of printed circuit boards. Taconic TLX PCB combines PTFE/woven glass laminates with meticulously controlled electrical and mechanical properties, providing engineers and designers with a versatile and reliable solution for their most demanding applications. In this product description, we will delve deep into the advantages of TLX-9 PCB compared to other materials, highlighting its exceptional properties, construction details, and typical applications.

TLX-9 PCB offers several advantages compared to other materials. Here are some key advantages:

1.Low Dielectric Constant:

TLX-9 PCB has a low dielectric constant with 2.5 at 10 GHz, which means it exhibits low signal loss and improved signal integrity. This is especially important for high-frequency applications where maintaining signal integrity is critical.

2.Low Dissipation Factor:

TLX-9 PCB has a low dissipation factor with 0.0019 at 10 GHz, indicating minimal power loss. This helps in preserving the quality and efficiency of signals transmitted through the PCB.

3.Low Moisture Absorption:

TLX-9 PCB has a low moisture absorption rate of <0.02%, which makes it more stable and less prone to changes in electrical properties due to humidity. This characteristic ensures reliable performance in various environmental conditions.

4.High Dielectric Breakdown:

TLX-9 PCB exhibits a high dielectric breakdown strength of>60 kV, indicating its ability to withstand high voltages without electrical breakdown. This makes it suitable for applications that require high voltage operation.

5.Good Peel Strength:

TLX-9 PCB provides good peel strength of12 lbs./linear in., ensuring strong adhesion between the copper layers and the substrate. This contributes to the overall mechanical durability and reliability of the PCB.

6.Controlled Coefficient of Thermal Expansion (CTE):

TLX-9 PCB has a controlled CTE, meaning it expands and contracts at a predictable rate with temperature changes. This property helps to minimize stress and the risk of component failure due to thermal expansion mismatch.

7.High Flexural Strength:

TLX-9 PCB exhibits high flexural strength of 9-12 ppm/°C in X-Y CTE and  130-145 ppm/°C, both lengthwise and crosswise. This helps to prevent bending or warping of the PCB, ensuring its structural integrity and reliability.

8.Excellent Thermal Conductivity:

TLX-9 PCB has good thermal conductivity with0.19 W/m/K, allowing for efficient dissipation of heat generated by components on the board. This helps to maintain optimal operating temperatures and prolongs the lifespan of the PCB and its components.

Overall, TLX-9 Taconic RF PCB circuit board boardoffers a combination of electrical, mechanical, and thermal properties that make it suitable for a wide range of applications, especially those requiring high-frequency performance, reliability, and stability.

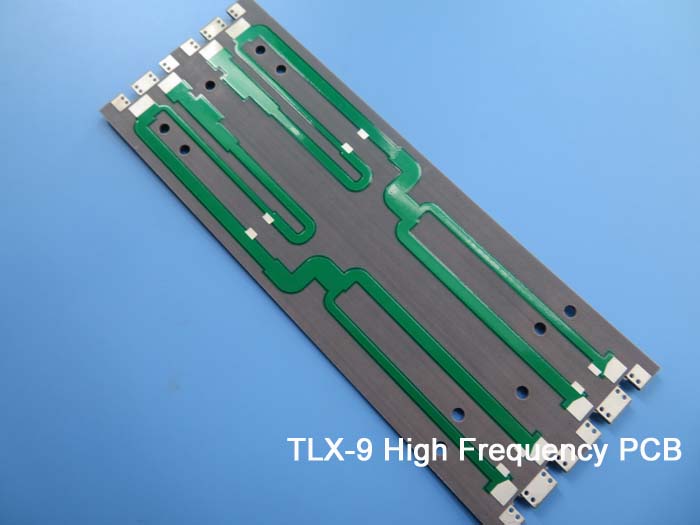

 Taconic TLX-9 PCB

20mil TLX-9 PCB Construction Details:

TLX-9 PCB 20mil features a 2-layer rigid PCB construction with precise specifications:

1) Board Dimensions: The PCB measures 41.5mm x 32.72mm, providing a compact and efficient solution for various applications.

2) Minimum Trace/Space: TLX-9 PCB supports a minimum trace/space width of 7/8 mils, allowing for intricate and high-density circuit designs.

3) Minimum Hole Size: The PCB accommodates holes as small as 0.4mm, enabling precise component mounting and interconnection.

4) Finished Board Thickness: The finished board thickness is 0.6mm, striking a balance between durability and space constraints.

5) Finished Copper Weight: TLX-9 PCB employs 1oz (1.4 mils) outer layers, ensuring optimal conductivity and signal performance.

6) Via Plating Thickness: The via plating thickness is 20μm, facilitating reliable interconnection between layers.

7) Surface Finish: TLX-9 PCB employs immersion gold as the surface finish, providing excellent solderability and corrosion resistance.

8) Silkscreen and Solder Mask: The TLX-9 PCB does not feature top or bottom silkscreen or solder mask layers, offering flexibility for specific applications.

9) Electrical Testing: Each TLX-9 PCB undergoes a 100% electrical test prior to shipment, ensuring functionality and reliability.

Typical Applications:

TLX-9 Taconic PCB finds extensive application in various high-performance designs, including:

1.LNAs, LNBs, and LNCs:

TLX-9's exceptional electrical properties, low moisture absorption, and controlled CTE make it an optimal choice for low-noise amplifiers, low-noise block downconverters, and low-noise converters. TLX-9 enhances the performance and reliability of these critical components.

2.Personal Communications Service / Personal Communications Network (PCS/PCN) Large Format Antennas:

TLX-9 PCB provides the necessary properties for large format antennas, including low dielectric constant, low moisture absorption, and controlled CTE. These features contribute to high-performance antenna designs for PCS/PCN applications.

3.High Power Amplifiers:

TLX-9's exceptional electrical properties, including low dissipation factor and high dielectric breakdown strength, make it an excellent choice for high-power amplifier applications. TLX-9 ensures efficient power transfer while maintaining signal integrity and reliability.

4.Passive Components:

TLX-9 PCB's low moisture absorption and controlled CTE contribute to the stability and durability of passive components. TLX-9 provides a reliable substrate for capacitors, resistors, and other passive components, enhancing their performance and longevity.

Quality Standards and Availability:

TLX-9 PCB 20mil adheres to the IPC-Class-2 quality standard, ensuring consistent and reliable manufacturing practices. Each PCB is meticulously crafted to meet the highest industry standards, guaranteeing optimal performance and durability.

TLX-9 PCB 20mil is available worldwide, providing engineers and designers from all corners of the globe with access to this cutting-edge technology. Whether you're located in North America, Europe, Asia, or any other region, TLX-9 PCB is readily accessible to meet your project requirements.


Taconic TLX-9 20mil PCB stands as a game-changer in the field of printed circuit boards. With its low dielectric constant, low dissipation factor, low moisture absorption, high dielectric breakdown, good peel strength, and controlled coefficient of thermal expansion, TLX-9 offers unparalleled performance and reliability.

Engineers and designers can leverage 20mil TLX-9 PCB for a wide range of applications, including LNAs, LNBs, and LNCs, PCS/PCN large format antennas, high power amplifiers, and passive components. TLX-9 empowers these designs with its exceptional electrical and mechanical properties, ensuring optimal signal integrity, durability, and stability.

Designed and manufactured to the highest quality standards, TLX-9 PCB 20mil is available worldwide, making it accessible to engineers and designers across the globe. Embrace the advantages of TLX-9 high frequency PCB and unlock new possibilities in your high-performance designs. Experience the reliability and performance of TLX-9 PCB for your next project.
