Why Use WL-CT440 Instead of FR4 or PTFE for 2-Layer RF PCBs?

When designing a 2-layer PCB for high-frequency RF applications—such as phased array antennas, airborne radar, or satellite communications—the choice of dielectric material is arguably the most consequential decision after the schematic itself. At frequencies above 1 GHz, the PCB substrate ceases to be a passive mechanical carrier and begins to behave as an active electrical component, directly affecting insertion loss, phase stability, impedance consistency, and thermal reliability.

The industry has long relied on two extremes: FR-4 for low-cost, low-frequency designs, and PTFE-based laminates (e.g., Rogers RT/duroid, Taconic TLY) for demanding RF and microwave applications. However, neither is optimal for many real-world RF systems that operate in the 1–10 GHz range—where the former is electrically inadequate and the latter is often overkill in terms of cost and fabrication difficulty.

This is where WL-CT440 enters the discussion. Developed by Wangling (Taizhou Wangling Insulating Materials Factory), WL-CT440 is a thermosetting hydrocarbon ceramic-fiberglass composite designed to occupy the middle ground: low-loss electrical performance comparable to specialized RF materials, but processable using standard FR-4 manufacturing workflows. This article provides a data-driven comparison of all three material families across four critical dimensions: electrical performance, thermal and mechanical stability, manufacturability, and cost.

1. FR-4: The Baseline

FR-4 (flame-retardant epoxy-woven glass) is the industry workhorse for digital and low-frequency analog PCBs. It is inexpensive, widely available, and well-understood by fabricators worldwide. However, its high-frequency limitations are severe and well-documented.

Electrical performance at GHz frequencies: FR-4 typically exhibits a dielectric constant (Dk) of approximately 4.3–4.7 at 1 GHz, but this value varies significantly with frequency [12†L19-L20]. More critically, its dissipation factor (Df) is high. At 10 GHz, standard FR-4 has a Df of approximately 0.02–0.025 [15†L8-L9][11†L4]. For context, a 0.025 Df at 10 GHz translates to insertion losses of approximately 0.8–1.2 dB per inch of microstrip trace [11†L13]. In a 100 mm transmission line, that represents over 3 dB of loss—more than half the signal power dissipated as heat before reaching the load.

FR-4 also suffers from poor Dk stability across temperature. While specific temperature coefficient data for standard FR-4 is rarely specified by manufacturers, measured Dk drift can exceed several hundred ppm/°C, causing phase shifts in antenna feed networks and beamforming systems that rely on precise electrical length matching.

Where FR-4 fails: For applications below 1 GHz with short trace lengths, FR-4 remains a viable choice [11†L15]. However, for 2-layer RF PCBs operating at 3 GHz and above—especially those with long feed lines such as phased array beam networks—FR-4 introduces unacceptable levels of signal attenuation and phase uncertainty.

2. PTFE-Based Laminates: The Gold Standard at a Price

PTFE (polytetrafluoroethylene) laminates, often reinforced with ceramic fillers and fiberglass, represent the high-performance benchmark in RF and microwave PCB materials. Products such as Rogers RT/duroid 5880 achieve a Df as low as 0.0009–0.0012 at 10 GHz [4†L10], an order of magnitude lower than FR-4.

Why PTFE is technically superior: The combination of extremely low Df, stable Dk across frequency and temperature, and low moisture absorption makes PTFE ideal for millimeter-wave radar (77 GHz), satellite downlinks (Ku/Ka band), and military-grade microwave systems. In a 2-layer antenna design, the minimal loss preserves signal-to-noise ratio and maximizes effective radiated power.

The drawbacks of PTFE: However, PTFE introduces substantial challenges in fabrication. As a thermoplastic material, PTFE is soft, dimensionally unstable, and chemically inert [17†L10-L12]. To achieve reliable copper adhesion in via barrels, PTFE laminates require plasma treatment or sodium-etching before electroless copper deposition. The material tends to expand during lamination, complicating registration in multilayer or mixed-dielectric builds [14†L9-L11]. Specialized drills and controlled drilling parameters are necessary to prevent smearing and hole-wall damage. Consequently, PTFE fabrication typically commands longer lead times and higher costs: while FR-4 material costs 6–12persquaremeter, PTFElaminatesrangefrom25–45 per square meter, with additional processing surcharges that further widen the gap [19†L10].

For many commercial and defense RF systems operating in the 1–10 GHz range, the ultra-low loss of PTFE is often more than what the application strictly requires—yet the fabrication complexity and cost penalty are unavoidable regardless of whether one is designing a 77 GHz radar front-end or a 3.5 GHz 5G antenna.

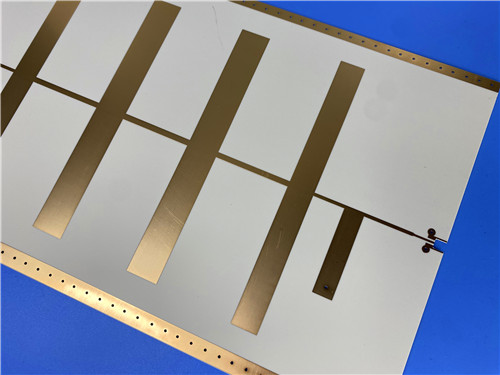

3. WL-CT440: The Hydrocarbon-Ceramic Alternative

Wangling WL-CT440 is a thermosetting hydrocarbon resin system filled with ceramic particles and reinforced with woven fiberglass [9†L2-L3]. This composition places it in the same material family as Rogers RO4000 series (RO4003C, RO4350B) and other ceramic-filled hydrocarbon laminates—materials that have become the workhorses for commercial RF and microwave applications from cellular base stations to automotive radar [18†L4-L10].

Electrical Performance at 10 GHz

WL-CT440 delivers a dielectric constant (Dk) of 4.1 and a dissipation factor (Df) of 0.005 at 10 GHz / 23°C [8†L21]. Independent testing by Wangling and third-party sources confirms that the WL-CT series achieves Df values between 0.002 and 0.003 at 10 GHz under optimized conditions [10†L14][9†L2-L3], placing it squarely in the low-loss category alongside international equivalents.

To put this in perspective:

A Df of 0.005 means that for a typical 100 mm microstrip trace at 10 GHz, insertion loss is approximately 0.4–0.6 dB per inch [11†L13-L14]. This represents a 75–80% reduction in dielectric loss compared to FR-4 at the same frequency—an improvement sufficient to render many 2-layer RF designs feasible without moving to PTFE.

Temperature Stability and Phase Integrity

WL-CT440 exhibits a Temperature Coefficient of Dielectric Constant (TCDk) of–21 ppm/°C [8†L22]. This means that across a typical operating range of–40°C to +125°C (the span encountered by airborne radar and outdoor antenna systems), the dielectric constant shifts by less than 0.4%. In a phased array antenna, such stability ensures that beam steering remains accurate and that calibration tables do not need continuous temperature compensation. Standard FR-4, by contrast, exhibits Dk drift more than an order of magnitude larger, often with non-linear behavior that is difficult to model.

The material also offers a glass transition temperature (Tg) exceeding 280°C [8†L22]. While FR-4 typically has a Tg between 130°C and 170°C (high-Tg variants extend to 180°C), a Tg of 280°C provides a substantial safety margin for lead-free assembly processes that peak at ~260°C. WL-CT440 will not undergo the dimensional relaxation and resin softening that can cause pad lifting or via barrel cracking in FR-4 during reflow.

Thermal and Mechanical Reliability

Thermal conductivity is a frequently overlooked parameter in material selection. For2-layer PCBs carrying power amplifiers or other heat-generating components, efficient heat transfer from the top layer through the dielectric to the bottom ground plane is essential. WL-CT440 achieves 0.66 W/mK thermal conductivity [8†L22]—more than double that of standard FR-4 (approximately 0.25 W/mK). This higher thermal conductivity reduces junction temperatures and improves long-term reliability in high-power RF applications.

Crucially, the coefficient of thermal expansion (CTE) of WL-CT440 is closely matched to that of copper: 14 ppm/°C in the X-axis, 18 ppm/°C in the Y-axis, and 35 ppm/°C in the Z-axis [8†L23-L24]. Copper has a CTE of approximately 17 ppm/°C. This match minimizes shear stress at the copper-dielectric interface during thermal cycling—a critical factor for plated through-hole (PTH) reliability in the Z-axis direction, where CTE mismatch is most problematic. FR-4 has a Z-axis CTE of approximately 50–70 ppm/°C, while PTFE can exceed 100 ppm/°C, making PTH barrel cracks a genuine concern in high-cycle thermal environments [15†L8-L9].

4. The Fabrication Advantage: FR-4 Compatibility

This is where WL-CT440 differentiates itself most clearly from PTFE. WL-CT440 can be processed using standard FR-4 fabrication techniques [9†L3][17†L11-L13]. No plasma treatment is required for desmear and electroless copper deposition. Standard FR-4 drill bits and lamination cycles are generally suitable (though bit life may be somewhat reduced due to the ceramic filler content).

The practical implications for a 2-layer PCB are substantial:

Lead times: A PTFE design often requires 10–15 working days for fabrication, whereas a WL-CT440 board can move through a standard FR-4 production line in 5–8 days [8†L6-L7].

Yield rates: PTFE's dimensional instability during lamination can lead to registration errors and scrap. WL-CT440's rigid, thermoset nature eliminates this variable.

Availability: While not as ubiquitous as FR-4, WL-CT440 is stocked by major Chinese laminators and can be sourced with lead times measured in days, not weeks.

Independent sources confirm that ceramic-filled hydrocarbon materials cost approximately 3–5 times FR-4 but remain significantly cheaper than pure PTFE laminates [18†L8][19†L10]. For a typical 2-layer RF board, the material cost delta between WL-CT440 and PTFE can be 40–60% in favor of the hydrocarbon-ceramic option, depending on panel size and volume.

5. Design Considerations and Limitations

No material is universally optimal, and WL-CT440 has its own set of engineering trade-offs.

Not for millimeter-wave. At frequencies above 20 GHz, the marginally higher Df of WL-CT440 relative to PTFE begins to matter. For 24 GHz automotive radar or 28 GHz 5G FR2 bands, WL-CT440 remains acceptable for moderate trace lengths. For 77 GHz long-range radar or 94 GHz imaging systems, PTFE or liquid crystal polymer (LCP) is necessary.

Dk value of 4.1. WL-CT440 has a fixed Dk of 4.1. Some RF designs—particularly those requiring broad impedance bandwidth or optimized antenna aperture matching—may benefit from lower-Dk materials such as PTFE (Dk≈2.2) or other WL-CT variants offering 3.0, 3.3, or 3.48 Dk values.

Material hardness. The ceramic filler content makes WL-CT440 harder than FR-4. While this does not require special equipment, drill bits wear more quickly and must be monitored more aggressively than in standard FR-4 production.

Summary Comparison

Conclusion: The Right Material for the Right Frequency Band

For 2-layer RF PCBs operating in the 1 GHz to 15 GHz range, WL-CT440 represents a compelling engineering trade-off. It is not the lowest-loss material available (PTFE holds that title). It is not the cheapest (FR-4 retains that distinction). But for the vast majority of commercial and defense RF applications—including phased array antennas, beamforming networks, airborne radar, and satellite navigation systems—WL-CT440 delivers electrical performance that is within 10–15% of PTFE at a fraction of the fabrication complexity and cost.

The ability to process WL-CT440 using standard FR-4 workflows removes the specialized fabrication barriers that often discourage designers from specifying high-performance laminates. Combined with its stable phase performance (TCDk–21 ppm/°C), high thermal conductivity (0.66 W/mK), and copper-matched CTE, WL-CT440 occupies the "sweet spot" for 2-layer RF PCB design.

When the signal must propagate cleanly but the budget and schedule cannot accommodate PTFE, WL-CT440 is the data-driven choice.
