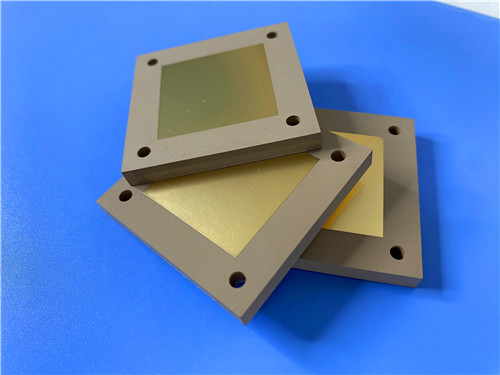

TP1600 PCB: The High-Dielectric-Constant Solution for Miniaturized High-Frequency Applications

In today's rapidly evolving electronics industry, the demand for smaller, lighter, and higher-performance devices continues to drive innovation in printed circuit board (PCB) materials. High-frequency applications, particularly in aerospace, defense, and satellite communications, require materials that can maintain stable electrical performance across extreme temperature ranges while enabling significant size reduction. Among the advanced materials available today, TP1600 PCB stands out as a unique high-dielectric-constant solution that addresses these critical challenges.

The Growing Need for High-Dk PCB Materials

As electronic systems become more compact, engineers face the persistent challenge of reducing component size without compromising performance. In high-frequency designs, antenna size is directly proportional to the wavelength of the operating signal, which is inversely related to the square root of the dielectric constant (Dk) of the substrate material. This fundamental relationship means that increasing the dielectric constant of the PCB substrate can dramatically reduce the physical dimensions of antennas and other high-frequency components.

Traditional high-frequency materials such as PTFE-based substrates typically offer dielectric constants in the range of 2.2 to 10. While these materials excel in low-loss performance, their relatively low Dk values limit the extent of miniaturization possible. Ceramic substrates, on the other hand, can provide very high dielectric constants but suffer from brittleness, poor machinability, and high manufacturing costs. This gap in the market has created a demand for materials that combine the high dielectric constants of ceramics with the manufacturability and mechanical robustness of polymer-based substrates.

TP1600: A Unique Thermoplastic Composite Solution

Wangling TP1600 is part of a distinctive family of high-frequency thermoplastic materials developed to bridge this performance gap. Unlike traditional PCB materials that use glass fiber reinforcement, TP1600's dielectric layer is composed of a carefully engineered blend of ceramic fillers and polyphenylene oxide (PPO) resin. This unique composition allows for precise control of the dielectric constant by adjusting the ratio of ceramic to resin, resulting in a material that offers the best of both worlds: the high dielectric performance of ceramics and the processability of polymers.

What sets TP1600 apart from other high-Dk materials is its exceptional combination of electrical, mechanical, and thermal properties. With a precisely controlled dielectric constant of 16.0±0.4 at 5 GHz and a tight tolerance of±2.5%, TP1600 provides consistent performance that is critical for high-frequency designs where even small variations in Dk can lead to significant performance degradation.

Core Technical Advantages of TP1600 PCB

Exceptional Electrical Performance

TP1600high frequency PCB delivers outstanding electrical characteristics that make it ideal for demanding high-frequency applications. Its low dissipation factor of 0.0015 at 5 GHz ensures minimal signal loss, even at elevated frequencies. While the loss does increase slightly with frequency, it remains relatively stable within the 10 GHz range, making it suitable for a wide variety of microwave applications.

Another key electrical advantage is TP1600's excellent dielectric constant temperature stability. With a temperature coefficient of -40 ppm/°C over the range of -55°C to 150°C, the material maintains consistent electrical performance across extreme temperature variations. This stability is particularly crucial for aerospace and defense applications that operate in harsh environmental conditions.

Superior Mechanical and Thermal Properties

TP1600 offers a broad operating temperature range from -100°C to +150°C, with excellent low-temperature performance that far exceeds many other polymer-based materials. While temperatures exceeding 180°C may cause deformation, copper foil delamination, or significant changes in electrical properties, the material's operating range covers the vast majority of high-frequency application requirements.

The high DK16 material also exhibits excellent adhesion between the copper foil and the dielectric substrate, with a peel strength greater than 0.6 N/mm under normal conditions and greater than 0.4 N/mm after alternating humidity and temperature exposure. This adhesion is significantly more reliable than the vacuum-deposited copper layers used on ceramic substrates, resulting in improved long-term reliability and durability.

Enhanced Manufacturability and Cost-Effectiveness

One of the most significant advantages of TP1600 over ceramic substrates is its excellent machinability. The material can be easily drilled, turned, ground, sheared, and etched using standard PCB manufacturing equipment. This ease of processing translates to higher production yields and significantly lower manufacturing costs compared to ceramic-based solutions.

TP1600 is available with standard ED copper foils in thicknesses of 0.018 mm and 0.035 mm, providing flexibility for different design requirements. The material is offered in a range of standard sizes including 150×150 mm, 160×160 mm, 200×200 mm, and 170×240 mm, with a dimensional tolerance of -2 mm. Thickness options range from 0.5 mm to 12 mm, with custom thicknesses available upon request.

Critical Manufacturing and Assembly Considerations

While TP1600 offers significant advantages, it is important to understand its limitations and follow proper manufacturing and assembly procedures to ensure optimal performance.

PCB Fabrication Guidelines

TP1600 is processed as a thermoplastic material, which simplifies manufacturing compared to ceramic substrates. However, due to its unique composition, there are some important considerations:

The material is generally not recommended for multilayer board construction. If multilayer designs are necessary, low-temperature bonding sheets should be used, and thorough feasibility testing is required.

Standard PCB fabrication processes can be used, but parameters may need adjustment to account for the material's thermoplastic nature.

The material has excellent dimensional stability, with tight thickness tolerances ranging from±0.05 mm for 0.8 mm thick boards to±0.3 mm for 12 mm thick boards.

Assembly and Soldering Recommendations

Proper soldering techniques are critical for ensuring the reliability of TP1600 PCB assemblies:

The material is not suitable for 260°C thermal shock testing and cannot be wave soldered.

Hand soldering with a temperature-controlled soldering iron is the recommended method.

Reflow soldering is generally not recommended. If reflow is necessary, the maximum peak temperature should not exceed 200°C, and extensive feasibility and reliability testing should be conducted.

Typical Applications of TP1600 PCB

TP1600's unique combination of high dielectric constant, low loss, and excellent manufacturability makes it the material of choice for several demanding applications:

1)Miniaturized Antennas

The high dielectric constant of TP1600 allows for significant reduction in antenna size, making it ideal for applications where space is at a premium. This includes antennas for portable communication devices, satellite terminals, and IoT devices.

2)Aerospace and Defense Systems

TP1600's excellent temperature stability, radiation resistance, and low outgassing properties make it suitable for aerospace applications. It is widely used in Beidou satellite systems, missile-borne electronics, and fuze systems where reliability in extreme environments is critical.

3)High-Frequency Microwave Components

The material's low loss and stable electrical performance make it suitable for a variety of microwave components including filters, couplers, and power dividers. Its high dielectric constant allows for more compact component designs compared to lower-Dk materials.

Choosing the Right TP1600 Specification for Your Project

When selecting TP1600 for your application, there are several important factors to consider:

1)Thickness requirement: Determine whether you need the total thickness including copper or just the dielectric thickness. This is crucial for ensuring proper impedance control.

2)opper foil thickness: Choose between 0.018 mm and 0.035 mm copper foils based on your current carrying requirements and manufacturing capabilities.

3)Board dimensions: Select from the standard sizes or request custom dimensions to optimize material utilization.

4)Operating environment: Consider the temperature range, radiation exposure, and other environmental factors that may affect performance.

At Bicheng PCB, we have extensive experience manufacturing high-quality TP1600 PCBs for customers worldwide. Our engineering team can work with you to select the optimal material specification and provide guidance on design and manufacturing considerations to ensure the success of your project.

Conclusion

TP1600 Wangling PCB represents a significant advancement in high-frequency PCB material technology, offering a unique combination of high dielectric constant, low loss, excellent temperature stability, and superior manufacturability. By bridging the gap between ceramic and polymer-based materials, TP1600 enables engineers to design smaller, lighter, and more reliable high-frequency electronic systems.

While the material has some limitations, particularly in terms of soldering and multilayer construction, its advantages far outweigh these considerations for many applications. With proper design and manufacturing practices, TP1600 can deliver exceptional performance in even the most demanding environments.

As a PCB supplier specializing in high-frequency and high-speed materials, Bicheng PCB is committed to providing our customers with the highest quality TP1600 PCBs at competitive prices. Contact us today to discuss your project requirements and learn how TP1600 can help you achieve your design goals.
