20mil Rogers RO4003C Material High Frequency RF PCB Circuit Board

20mil Rogers RO4003CMaterial High FrequencyPCB Circuit Board

The Rogers RO4003C PCB is a high-tech, high-quality circuit board with excellent electrical performance, thermal stability, and dimensional stability. This PCB is constructed with top-of-the-line Rogers RO4003C material, which provides a variety of characteristics and benefits that make it an excellent choice for high-frequency applications. In this essay, we'll look at the main features and benefits of the Rogers RO4003C PCB.

Our newly shipped PCB is made from high-quality Rogers RO4003C substrate and has been designed to operate in temperatures ranging from -40℃ to +85℃. It has been processed in a lead-free manner, making it an ideal choice for a wide range of applications.

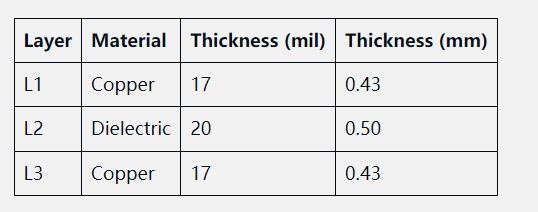

Stack-up:

With a stack-up of base copper thickness of 17um and a dielectric thickness of 20mil, this 20mil Rogers RO4003C PCB is perfect for high-frequency applications. The board dimensions of 70.00 x 50.00 mm, with a finished board thickness of 0.58 mm RO4003C PCB, have been manufactured to meet Greber standards. The finished copper weight of 1 oz (1.4 mils) all layers and via plating thickness of 1 mil ensure that this PCB is highly durable.

Construction details:

The minimum trace/space for this PCB is 5/7 mils, while the minimum hole size is 15 mils. There are no blind or buried vias, and the surface finish is Lead-free HASL with a green top solder mask. Additionally, a panelized solder paste stencil has been provided for the top side of the PCB.

PCB Statistics:

.

For any technical questions, please feel free to contact Jane at sales20@bichengpcb.com. Rest assured that our PCBs are reliable and high-performing, meeting your requirements with precision.
