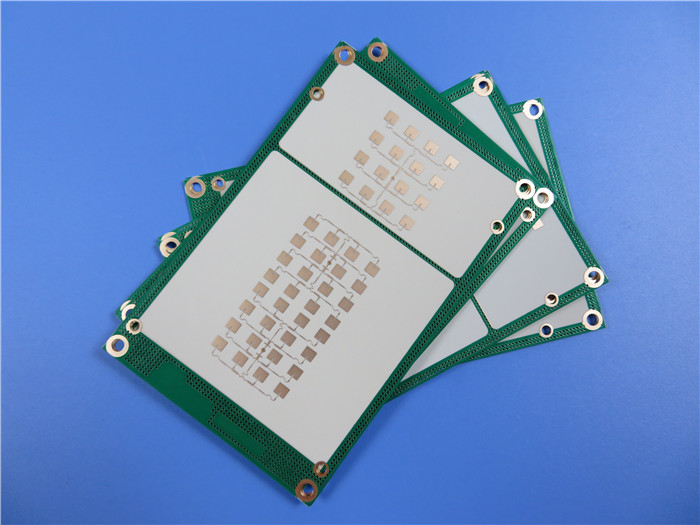

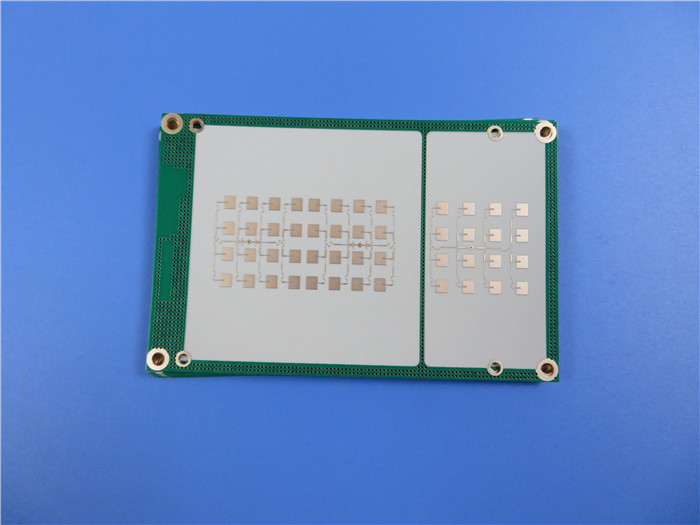

RF-10 PCB 2-layer 0.635mm 25mil Taconic RF PCB Circuit Board with Immersion Tin

RF-10 PCB 2-layer 0.635mm 25mil Taconic RF PCB Circuit Board with Immersion Tin

Introduction

RF-10 copper clad laminates, engineered with ceramic-filled PTFE and woven fiberglass, offer exceptional performance for RF applications. By combining high dielectric constant with low dissipation factor, RF-10 delivers outstanding electrical properties. The thin woven fiberglass reinforcement not only enhances dimensional stability and rigidity but also ensures minimal dielectric loss, making it ideal for multilayer circuits.

Designed to meet industry demands for cost-effective substrates with quick delivery times, RF-10 Taconic PCB is specifically tailored for size reduction in RF applications. Its perfect bonding with smooth, low-profile copper, coupled with its low dissipation properties, leads to optimal insertion losses at higher frequencies, where skin effect losses typically come into play.

Features

The RF-10 PCB boasts several remarkable features, making it an exceptional choice for RF circuits:

2.1 Dielectric Constant:

RF-10 offers a dielectric constant of 10.2±0.3 at a frequency of 10GHz, ensuring excellent performance in RF applications.

2.2 Dissipation Factor:

With a dissipation factor of 0.0025 at 10GHz, RF-10 provides low loss characteristics, minimizing signal degradation.

2.3 High Thermal Conductivity:

RF-10 exhibits a high thermal conductivity of 0.85 W/mK (unclad), enabling effective thermal management in demanding applications.

2.4 Coefficient of Thermal Expansion (CTE):

RF-10 offers reliable dimensional stability with an x CTE of 16 ppm/°C, y CTE of 20 ppm/°C, and z CTE of 25 ppm/°C, ensuring consistent performance over a wide temperature range.

2.5 Low Moisture Absorption:

With a moisture absorption rate of only 0.08%, RF-10 remains stable even in high-humidity environments.

2.6 Flammability Rating:

RF-10 holds a V-0 flammability rating, ensuring compliance with stringent safety standards.

Benefits

By choosing RF-10 Taconic RF PCB, customers can enjoy a multitude of benefits:

3.1 High DK for RF Circuit Size Reduction:

The high dielectric constant of RF-10 enables size reduction in RF circuits, contributing to overall space-saving and compact designs.

3.2 Excellent Dimensional Stability:

The thin woven fiberglass reinforcement enhances the rigidity and dimensional stability of RF-10, minimizing the risks of warping and ensuring accurate assembly.

3.3 DK Tolerance:

RF-10 boasts a precise dielectric constant tolerance of 10.2±0.3, providing consistent performance and minimizing variations across applications.

3.4 High Thermal Conductivity:

RF-10's high thermal conductivity facilitates efficient heat dissipation, ensuring reliable operation in thermally intensive environments.

3.5 Excellent Adhesion to Smooth Coppers:

RF-10 exhibits excellent adhesion properties to smooth copper surfaces, promoting reliable signal transmission and reducing potential signal loss.

3.6 Low X, Y, Z Expansion:

With low coefficients of thermal expansion in all three dimensions, RF-10 maintains its integrity under various thermal conditions, ensuring long-term reliability of the PCB.

3.7 Excellent Price/Performance Ratio:

RF-10 offers outstanding performance at a competitive price, delivering excellent value for money.

PCB Stackup: 2-Layer Rigid PCB

The RF-10 Taconic High Frequency PCB utilizes a 2-layer stackup configuration:

Copper_layer_1 - 35μm (1oz)

RF-10 Core - 25mil (0.635mm)

Copper_layer_2 - 35μm (1oz)

PCB Construction Details

The RF-10 25mil Taconic PCB Laminates offers the following construction and manufacturing specifications:

PCB Statistics

The RF-10 25mil Taconic PCB Substrate PCB is designed to cater to a wide range of applications and offers the following statistics:

Artwork Supplied: Gerber RS-274-X

The RF-10 Taconic RF PCB Circuit Board utilizes Gerber RS-274-X artwork, a widely accepted file format in the PCB manufacturing industry. This ensures compatibility and seamless production processes.

Quality Standard: IPC Class-2

Complying with IPC Class-2 quality standards, the RF-10 25mil High Frequency PCB meets industry-recognized benchmarks for performance, reliability, and manufacturing excellence. Customers can rely on the high quality and consistency of the product.

Worldwide Availability

The RF-10 PCB is available worldwide, enabling customers from various regions to benefit from its exceptional features and superior performance. It is readily accessible, ensuring quick delivery times to meet project deadlines.

Applications

The RF-10 PCB finds applications in a wide range of industries and scenarios, including:

Microstrip Patch Antennas

GPS Antennas

Passive Components (Filters, Couplers, Power Dividers)

Aircraft Collision Avoidance Systems

Satellite Components

Conclusion

In conclusion, the RF-10 25mil Taconic PCB Material sstands out as a high-performance solution for RF applications. Its exceptional electrical properties, dimensional stability, thermal conductivity, and adhesion characteristics make it an ideal choice for demanding applications. Supported by comprehensive manufacturing specifications and adhering to international quality standards, the RF-10 high frequency PCB delivers superior performance and reliability. With its worldwide availability, customers can satisfy their RF circuit requirements with confidence, knowing they have chosen a product that offers excellent price-to-performance.
