The dimensions of the board are 55.00 x 26.00 mm, with a tolerance of +/- 0.15mm. The board has 16 components, 26 total pads, 9 through-hole pads, 10 top SMT pads, 7 bottom SMT pads, 77 vias, and 82 nets.
Item NO.:
BIC-210v204.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

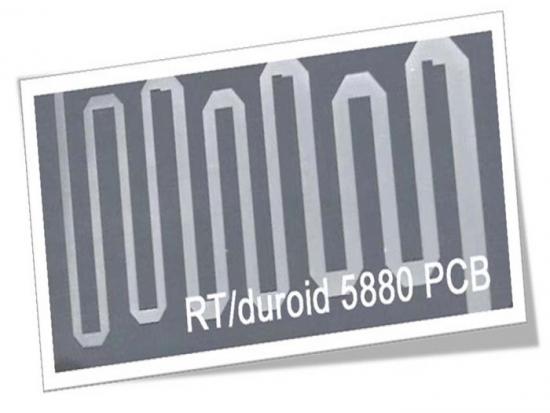

5mil Rogers RT/duroid 5880 MaterialLead-Free PCB with Immersion Gold Finish
This 5mil Rogers RT/duroid 5880 Material, a high-quality printed circuit board (PCB) designed using advanced materials and construction techniques. This PCB is suitable for a wide range of applications in various industries, including electronics, telecommunications, and aerospace.
Our PCB is made of Rogers RT/duroid 5880, which is known for its exceptional dielectric properties and high-temperature stability. The board is manufactured using a lead-free process and is designed to operate in temperatures ranging from -40℃to +85℃.
The stack-up of the PCB consists of base copper of 17um, a 5mil dielectric layer, and another base copper layer of 17um. This results in a finished board thickness of 0.25mm and a finished copper weight of 1 oz (1.4 mils) on all layers.
The construction details of the PCB are as follows:
The Rogers RT/duroid 5880 PCB does not include impedance matching (+/- 10%), but we offer a panelized solder paste stencil for top sides.
Our PCB statistics are as follows:
We are confident that our PCB will meet your needs and exceed your expectations. For any inquiries or further information, please do not hesitate to contact us. We look forward to serving you.
