The 50mil TLX-9 PCB: Unmatched Durability and Reliability for Your Projects

  • August 17. 2023
Introducing our Newly Shipped PCB: High-Quality and Reliable Circuitry for Your Electronic Projects

The newly shipped 50mil TLX-9 PCB from our company is a cutting-edge product designed to meet your electronic needs with utmost precision and reliability. Crafted with the finest materials and advanced manufacturing processes, this PCB offers exceptional performance and durability for a wide range of applications. Let's delve into its features and specifications in detail:

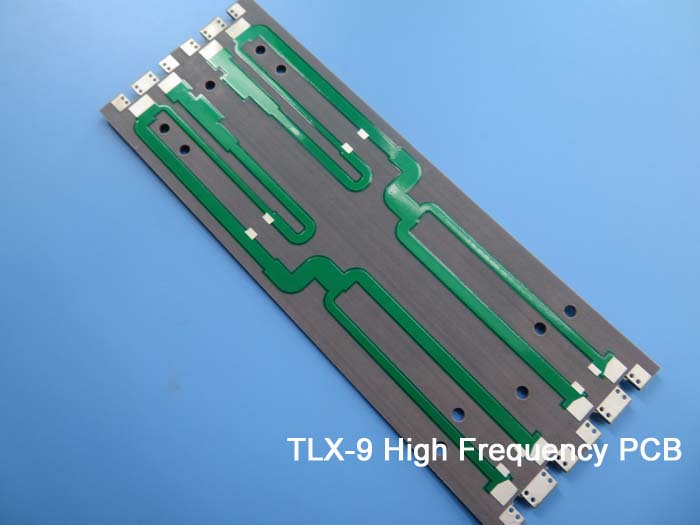

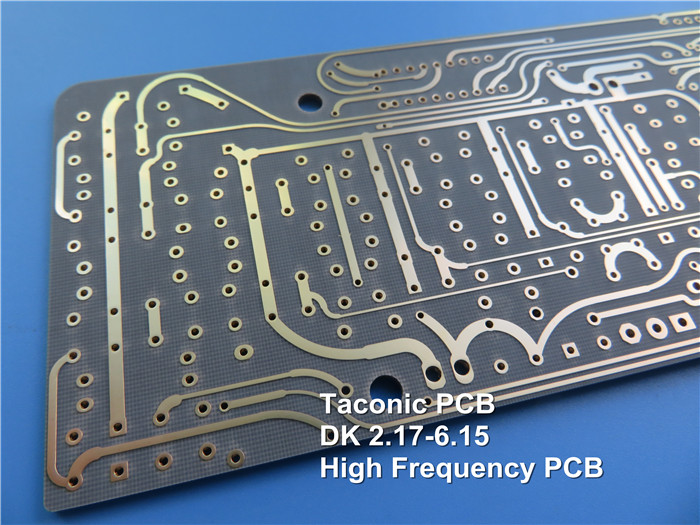

50mil TLX-9 Taconic PCB

TLX-9 Dielectric: A 50 mil (1.27mm) TLX-9 dielectric layer separates the copper layers, ensuring reliable insulation and signal integrity.

Construction: The construction details include a board dimension of 95mm x 87mm with a tolerance of +/- 0.15mm. The finished board thickness is 1.35mm.

Performance Specifications:

  • Minimum Trace/Space: The50mil TLX-9PCB supports a minimum trace/space width of 6/6 mils, enabling intricate circuit designs with high-density components.
  • Minimum Hole Size: With a minimum hole size of 0.5mm, the PCB accommodates various component types and ensures secure mounting.
  • No blind or buried vias: The TLX-9 PCB does not incorporate blind or buried vias, simplifying the manufacturing process and reducing costs.
  • Finished Cu Weight: With a finished copper weight of 1 oz (1.4 mils) across all layers, theTLX-9PCB offers optimal conductivity and durability.
  • Via Plating Thickness: The via plating thickness measures 1 mil, assuring reliable electrical connections.
  • Surface Finish:It’s features a Hot Air Soldering Level (HASL) surface finish, providing excellent solderability and corrosion resistance.
  • Silkscreen: The top silkscreen is white, allowing for clear component identification. The bottom silkscreen is not present, providing a clean aesthetic.
  • Solder Mask: The top solder mask is green, ensuring efficient soldering and protection against solder bridging. The bottom solder mask is not included.
  • Silkscreen on Solder Pads: The solder pads do not have silkscreen markings, minimizing the risk of misalignment during soldering.
  • Electrical Test: Each TLX-9 PCB undergoes a rigorous 100% electrical test, guaranteeing optimal functionality and reliability.

PCB Statistics:

  • Components: The TLX-9 PCB supports up to 68 components, offering ample space for diverse circuit designs.
  • Total Pads: With a total of 110 pads, the PCB accommodates various component types and ensures secure connections.
  • Thru Hole Pads: There are 81 through-hole pads available, enabling the installation of components requiring a more robust connection.
  • Top SMT Pads: The top surface provides 29 SMT pads, allowing for the efficient placement of surface-mount components.
  • Bottom SMT Pads: The bottom surface does not have SMT pads, providing a clean and unobstructed area for other circuitry.
  • Vias: The PCB incorporates 112 vias, facilitating interconnection between different layers and ensuring seamless signal flow.
  • Nets: With a total of 14 nets, the PCB enables efficient signal routing and ensures optimal performance.

Artwork and Standards:

  • Type of Artwork Supplied: TheTLX-9PCB is supplied with Gerber RS-274-X artwork, the industry-standard format for PCB manufacturing.
  • Accepted Standard: The TLX-9 PCB adheres to IPC-Class-2, ensuring high-quality fabrication and meeting industry specifications.


Are you ready to revolutionize your electronic projects? Look no further than the newly shipped 50mil TLX-9 PCB. With its cutting-edge features and unparalleled performance, this advanced circuit board is set to redefine the world of electronics. Whether you're an engineer, designer, or hobbyist, the TLX-9 PCB offers a paradigm shift in circuitry that will elevate your creations to new heights.

In this article, we will delve deep into the features, specifications, and advantages of the TLX-9 PCB. From its exceptional dielectric constant of 2.5 at 10 GHz to its ultra-low dissipation factor of 0.0019 at the same frequency, this 50mil TLX-9 PCB ensures superior signal integrity and minimal losses. Additionally, its moisture absorption rate of less than 0.02% guarantees long-term stability and reliability.

Unmatched Performance: Understanding the TLX-9 PCB's Key Attributes

The 50mil TLX-9 material PCB offers outstanding dielectric breakdown strength, exceeding 60 kV, ensuring resilience in high-voltage applications. Its volume and surface resistivity of 10^7 Mohm/cm make it an excellent choice for applications requiring high electrical insulation. Furthermore, with an arc resistance of over 180 seconds, the TLX-9 PCB demonstrates exceptional durability and reliability even in harsh environments.

Robust Construction: Ensuring Reliability and Durability

The TLX-9 PCB boasts impressive flexural strength, both lengthwise and crosswise, with values exceeding 23,000 lbs./in. and 19,000 lbs./in. respectively. This robust construction guarantees the board's ability to withstand mechanical stress and ensures its longevity. Additionally, the peelstrength of 12 lbs./linear in. (2.1 N/mm) for 1oz copper ensures secure adhesion of components, enhancing the overall reliability of your designs.

Design Flexibility: Meeting Trace/Space and Hole Size Requirements

The TLX-9 PCB offers design flexibility, allowing you to meet trace/space and hole size requirements with ease. Its thermal conductivity of 0.19 W/m/K enables efficient heat dissipation, making it ideal for applications that require effective thermal management. Moreover, its coefficient of thermal expansion (CTE) values of 9-12 ppm/°C (x-y direction) and 130-145 ppm/°C (z direction) ensure minimal dimensional changes over a wide temperature range, maintaining the integrity of your designs.

Quality Assurance: Compliance with Industry Standards

Rest assured, the TLX-9 PCB meets stringent industry standards. It holds a UL-94 flammability rating of V-0, ensuring its fire-resistant properties. Additionally, it complies with IPC-TM and ASTM test methods, guaranteeing consistent and reliable performance across various parameters.

Global Reach: Seamless Integration with Worldwide Service Coverage

The TLX-9 PCB is readily available worldwide, ensuring easy access for engineers and designers across the globe. With its global service coverage, you can rely on timely delivery and comprehensive technical support, enabling you to maximize the potential of your designs.

TLX-9 PCB in Real-World Applications:Case Studies and Success Stories

Discover how the TLX-9 PCB has revolutionized real-world applications through case studies and success stories. From aerospace to telecommunications, this PCB has empowered engineers and designers to create innovative solutions that push the boundaries of technology.

Looking Ahead:The TLX-9 PCB's Role in Future Technological Advancements

As technology continues to evolve, the 50mil TLX-9 substrate PCB remains at the forefront of innovation. With its exceptional electrical properties, durability, and reliability, it is poised to play a crucial role in future technological advancements. Stay tuned as we explore the exciting possibilities that lie ahead.

In conclusion, the TLX-9 PTFE Glass material PCB represents a groundbreaking advancement in circuit board technology. Its exceptional performance, robust construction, design flexibility, and adherence to industry standards make it the ultimate choice for engineers, designers, and enthusiasts alike. Embrace the TLX-9 PCB and unlock a world of possibilities for your electronic projects. Stay ahead of the curve and experience the future of electronics today.
