The Ultimate Guide to the 20mil Rogers RO3003 PCB: Unleashing its Potential in Electronic Applications

  • August 22. 2023
Introducing our newly shipped PCB, the 20mil Rogers RO3003 PCB. This high-quality PCB is designed to meet the demands of various electronic applications, ensuring reliable performance and optimal functionality.

The PCB is constructed using RO3003 ceramic-filled PTFE composites, offering exceptional electrical properties and durability. Designed with a lead-free process, this PCB is environmentally friendly and safe for use in various industries.

With an operating temperature range of -40℃ to +85℃, this PCB can withstand extreme conditions, providing consistent performance in any environment.

20mil Rogers RO3003 PCB

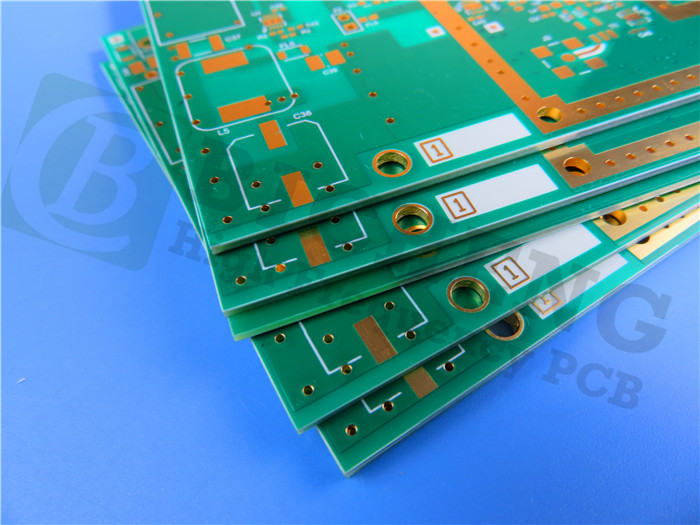

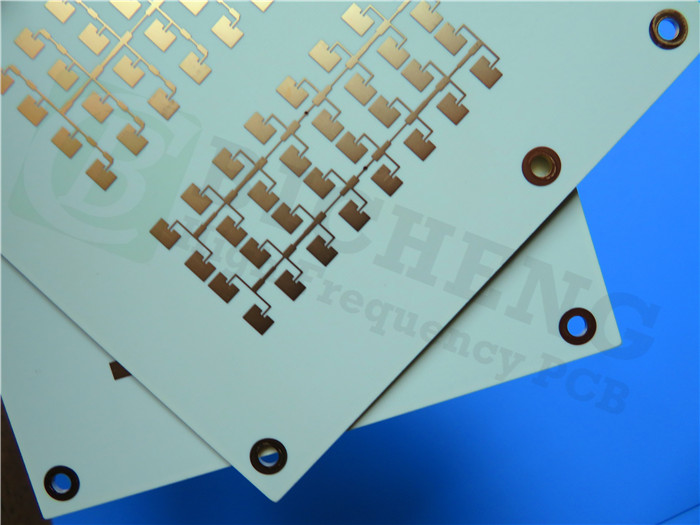

The 2-layer RO3003 rigid PCB features a stackup that consists of finished copper layers, with a thickness of 35um, sandwiching the RO3003 dielectric layer, which has a thickness of 20 mil (0.508mm). This stackup ensures excellent signal integrity and minimal signal loss.

  • The board dimensions are 117mm x 50mm, with a tolerance of +/- 0.15mm, allowing for precise and accurate design implementation. The minimum trace/space is 8/8 mils, enabling intricate and detailed circuit designs.
  • The construction details of the PCB include a finished board thickness of 1.6mm and a finished copper weight of 1 oz (1.4 mils) on all layers. The via plating thickness is 1 mil, ensuring reliable and consistent electrical connections. The surface finish is immersion tin, providing a protective layer and enhancing solderability.
  • This PCB does not feature top or bottom silkscreen, allowing for a clean and minimalistic design. The solder pads do not have any silkscreen, ensuring efficient soldering and preventing any interference.
  • To ensure quality and reliability, the PCB undergoes a 100% electrical test, guaranteeing the functionality of all components and connections.
  • With 77 components, 123 total pads, and 100 vias, this PCB is versatile and suitable for a wide range of applications.
  • The artwork supplied is Gerber RS-274-X, a widely accepted standard in the industry.
  • Compliant with IPC-Class-2 standards, thisRO3003 PCB meets the highest quality requirements and is suitable for various industries and applications.

20mil Rogers RO3003 PCB


In the ever-evolving field of electronics, staying ahead of the game requires the use of reliable and high-performance components. One such component is the 20mil Rogers RO3003 PCB, designed to meet the demands of various electronic applications. This article aims to provide a deep and informative insight into the features, benefits, and potential applications of the RO3003 PCB.

Introduction to the RO3003materialPCB: Unveiling its Features and Benefits

The 20mil RO3003 material PCB is a cutting-edge solution that offers exceptional electrical properties and durability. Its ceramic-filled PTFE composites, lead-free process compatibility, and wide operating temperature range make it suitable for a range of applications.

Understanding the Construction and Material of the RO3003 PCB

Delving into the construction details, the RO3003 PCB features a 2-layer rigid design with a stackup consisting of finished copper layers and the RO3003 dielectric layer. The precise dimensions, minimum trace/spaces, and hole sizes ensure accurate and intricate circuit designs.

Performance Analysis: Dielectric Constant and Dissipation Factor

The dielectric constant of the20milRO3003substrate plays a crucial role in signal integrity, and its low dissipation factor contributes to minimal signal loss. These properties make the RO3003 PCB highly reliable and efficient in high-frequency applications.

Thermal Properties: Coefficient of Thermal Expansion and Thermal Conductivity

The RO3003 PCB exhibits excellent dimensional stability and thermal conductivity, allowing it to withstand temperature variations and dissipate heat effectively. Its low coefficient of thermal expansion ensures reliability even in extreme conditions.

Mechanical Strength and Dimensional Stability of the RO3003 PCB

The RO3003 PCB boasts impressive mechanical strength and dimensional stability. Its low moisture absorption and superior copper peel strength make it suitable for demanding environments.

Electrical Properties: Volume Resistivity and Surface Resistivity

With high volume and surface resistivity, the RO3003 PCB ensures reliable electrical connections and prevents leakage. This property is essential for maintaining signal integrity and preventing electrical shorts.

Moisture Absorption and Flame Retardancy of the RO3003 PCB

The RO3003 PCB exhibits low moisture absorption, protecting its electrical properties and ensuring long-term reliability. Additionally, its V-0 flame retardancy rating guarantees safety in critical applications.

Compatibility with Lead-Free Processes: Ensuring Environmental Safety

The RO3003 PCB is compatible with lead-free processes, aligning with environmental regulations and promoting sustainability. This compatibility ensures that the PCB can be used in various industries without compromising safety.

Real-Life Applications and Industry Uses of the RO3003 PCB

The RO3003 PCB finds applications in telecommunications, aerospace, automotive, and many other industries. Its high-performance characteristics make it ideal for radar systems, satellite communications, power amplifiers, and more.

Conclusion: Embracing the Power of the RO3003 PCB in Your Projects

The RO3003 PCB offers unmatched performance, reliability, and versatility in electronic applications. By incorporating this PCB into your projects, you can unleash its potential and elevate your designs to new heights of efficiency and innovation.

In conclusion, the 20mil Rogers 3003 PCB is a game-changer in the world of electronic components. Its exceptional features, compatibility with lead-free processes, and wide range of applications make it an ideal choice for various industries. Embrace the power of the RO3003 PCB and unlock a new realm of possibilities in your electronic projects.
