Choose the 20mil Taconic TLY-5 Board PTFE Glass DK 2.2 PCB for Its Versatility in Various Applications

  • August 16. 2023
Introducing the Taconic TLY-5 PTFE Glass DK 2.2 PCB – a high-quality and reliable solution for your electronic needs. With exceptional performance and durability, thisTLY-5 PCB is perfect for a wide range of applications. Here are some key features and specifications that make it stand out:

PCB Material:

  • Taconic TLY-5 PTFE Glass DK 2.2 ensures excellent electrical properties and mechanical stability.
  • Lead-free process for environmentally-friendly manufacturing.
  • Designed to operate in temperatures ranging from -40℃ to +85℃, making it suitable for various environments.


  • 4-layerTLY-5 rigid PCB construction with optimal layer arrangement for enhanced performance.
  • Copper thickness of 35um ensures efficient signal transmission and conductivity.
  • TLY-5 dielectric layer with a thickness of 20 mil (0.508mm) provides stable impedance control.

Construction Details:

  • Precise board dimensions of 157mm x 112mm, ensuring a perfect fit for your electronic projects.
  • Minimum Trace/Space of 9/9 mils allows for intricate designs and compact layouts.
  • Minimum Hole Size of 0.4mm enables seamless component integration.
  • Includes blind vias for improved connectivity and space-saving benefits.
  • Finished board thickness of 1.2mm guarantees durability and longevity.
  • 1 oz (1.4 mils) copper weight across all layers ensures reliable signal performance.
  • Immersion Gold surface finish provides excellent corrosion resistance and solderability.
  • White top silkscreen for clear component labeling.
  • Matt black top and bottom solder mask for enhanced protection and aesthetics.
  • No silkscreen on solder pads for optimal functionality.
  • 100% Electrical test conducted for quality assurance.

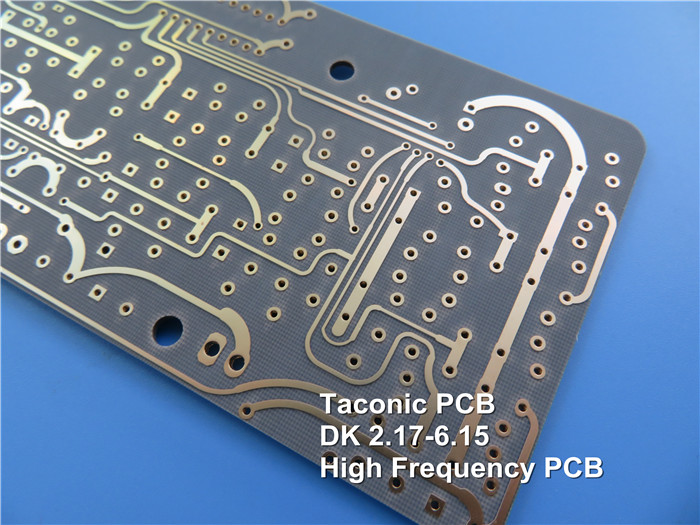

20MIL Taconic TLY-5 PCB

Just for reference.

PCB Statistics:

  • Accommodates up to 80 components, providing versatility for various applications.
  • Total of 97 pads, including 59 thru hole pads and 38 top SMT pads.
  • 47 vias for efficient connectivity.
  • 15 nets for organized and reliable circuit connections.

Artwork and Standards:

  • Artwork supplied in Gerber RS-274-X format for seamless integration with existing manufacturing processes.
  • Meets IPC-Class-2 standards, ensuring high-quality production and assembly.

Worldwide Service:

Our services are available worldwide, ensuring that you can access our exceptional products and support no matter where you are located.

The world of electronics is constantly evolving, and the demand for high-performance printed circuit boards (PCBs) is on the rise. Taconic, a renowned leader in PCB manufacturing, has recently introduced the 20mil TaconicTLY-5 material PCB, a groundbreaking solution that pushes the boundaries of performance and reliability. In this article, we will explore the exceptional features and capabilities of the TLY-5 PCB, shedding light on its applications and why it stands out from the competition.

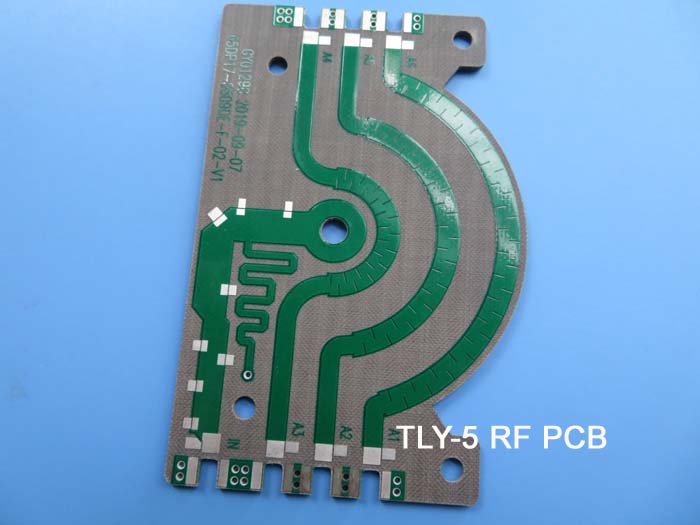

Taconic TLY-5 PTFE Glass DK 2.2 PCB

Unparalleled Electrical Properties and Mechanical Stability

When it comes to PCBs, electrical properties and mechanical stability are of utmost importance. The 20mil Taconic TLY-5 substrate excels in both these aspects, making it a top choice for demanding electronic applications. With a DK value of 2.2 at 10 GHz, this PCB ensures efficient signal transmission and minimizes signal loss, resulting in enhanced overall performance.

To validate its exceptional electrical properties, the TLY-5 PCB undergoes rigorous testing according to industry standards. The Df (dissipation factor) at 10 GHz is an impressive 0.0009, showcasing its ability to maintain signal integrity even at high frequencies. These low-loss characteristics make the TLY-5 PCB ideal for high-speed digital and RF applications where signal integrity is critical.

Environmentally-Friendly Manufacturing Process

In today's environmentally-conscious world, sustainable manufacturing practices are highly valued. Taconic understands this, and the 0.508mm TLY-5 PCB is manufactured using an environmentally-friendly process. By opting for a lead-free manufacturing process, Taconic ensures that the production of these PCBs aligns with global environmental regulations without compromising on performance or quality.

The TLY-5 PCB's eco-friendly approach extends beyond the manufacturing process. It also boasts a low moisture absorption rate of just 0.02%, as tested according to the IPC-650 standard. This moisture resistance helps maintain the PCB's electrical properties and mechanical stability, even in humid environments, ensuring reliable performance over the long term.

With its commitment to sustainability, Taconic provides electronics designers and manufacturers with a high-performance PCB solution that not only meets their technical requirements but also aligns with their environmental values.

For any technical inquiries or further information about this 20mil Taconic TLY-5 PCB, please reach out to Jane at Our team of experts is ready to assist you in finding the best solution for your specific requirements. Trust in our expertise and choose this reliable PCB for your next project.
