Home Taconic PCB Board Taconic TLY-5Z High Frequency 50mil 1.27mm 2-Layer PCB with Immersion Gold

Taconic TLY-5Z High Frequency 50mil 1.27mm 2-Layer PCB with Immersion Gold


It is a double layer board manufactured as per IPC class 2 standard. All of the boards are 100% electrical tested, flying probe or test fixture, before shipment.



  • Item NO.:

    BIC-194-v128.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

Taconic TLY-5Z High Frequency PCB 50mil 1.27mm TLY-5Z 2-Layer Printed Circuit Board with Immersion Gold

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


General Description:


This is a type of low weight antenna PCB made on Taconic TLY-5Z substrate with 30mil thickness, starting 0.5oz copper, finished 1oz copper, green solder mask on both sides and immersion gold plated on pads.


PCB Specifications:


PCB SIZE 72 x 55mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
TLY-5Z 0.762mm
copper ------- 17um(0.5 oz) + plate  BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 4 mil
Minimum / Maximum Holes: 0.3 mm / 3.0 mm
Number of Different Holes: 5
Number of Drill Holes: 97
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy:  TLY-5Z 0.762mm
Final foil external:  1.0 oz
Final foil internal:  N/A
Final height of PCB:  0.8 mm ±0.1
PLATING AND COATING
Surface Finish Immersion Gold, 31.8%
Solder Mask Apply To:  Top side and bottom side
Solder Mask Color:  Green
Solder Mask Type: LPI
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Component side
Colour of Component Legend White
Manufacturer Name or Logo:  N/A
VIA Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension:   0.0059"
Board plating: 0.0029"
Drill tolerance:  0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

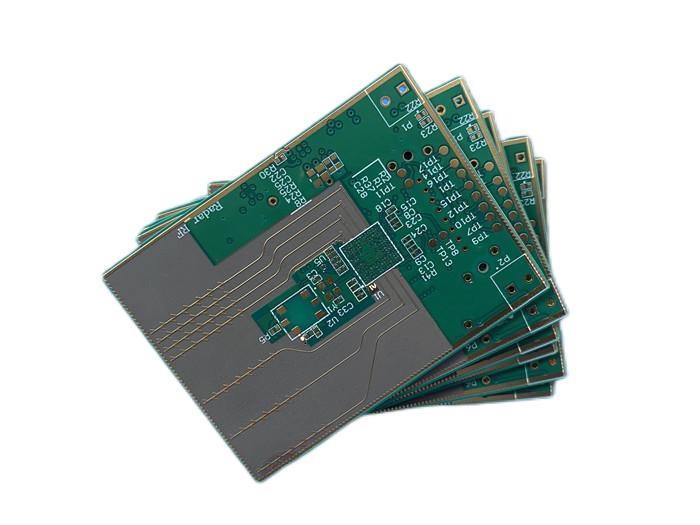

2L 30mil TLY-5Z PCB


Our Advantages:


1. Powerful PCB capabilities support your research and development, sales and marketing;

2. PCB Products and Manufacturing are certified by authorized organizations;

3. 16000㎡ workshop with 30000㎡ output capability and 8000 types of PCB's per month;

4. Quick CADCAM checking and free PCB quotation;

5. No minimum order quantity. 1 piece is available;

6. A Team with passion, discipline, responsibility and honesty;

7. More than 19+ years of high frequency PCB experience;

8. Prototype PCB capability to Volume Production capability;

9. Delivery on time: >98%, Customer complaint rate: <1%

10. IPC Class 2 / IPC Class 3;


Our PCB Capabilities(2022):


Parameter Value
 Layer Counts  1-32
 Substrate Material  RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD450, AD600, AD1000, TC350; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
 Maximum Size  Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
 Board Outline Tolerance  ±0.0059" (0.15mm)
 PCB Thickness 0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)  ±8%
Thickness Tolerance(t<0.8mm)  ±10%
 Insulation Layer Thickness 0.00295" - 0.1969" (0.075mm--5.00mm)
 Minimum Track 0.003" (0.075mm)
 Minimum Space  0.003" (0.075mm)
 Outer Copper Thickness  35µm--350µm (1oz-10oz)
 Inner Copper Thickness  17µm--350µm (0.5oz - 10oz)
 Drill Hole(Mechanical) 0.0079" - 0.25" (0.2mm--6.35mm)
 Finished Hole(Mechanical) 0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical) 0.00295" (0.075mm)
 Registration (Mechanical) 0.00197" (0.05mm)
 Aspect Ratio  12:1
 Solder Mask Type  LPI
 Min Soldermask Bridge 0.00315" (0.08mm)
 Min Soldermask Clearance 0.00197" (0.05mm)
 Plug via Diameter 0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance  ±10%
 Surface Finish HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc.


Appendix: Typical Value of TLY-5Z:


TLY-5Z Typical Values
Property Test Method Unit Value Unit Value
Dk @ 1.9 GHz IPC-650 2.5.5.5.1 Mod. 2.20+/- 0.04 2.20+/- 0.04
Df @ 1.9 GHz IPC-650 2.5.5.5.1 Mod. 0.001 0.001
Df @ 10 GHz IPC-650 2.5.5.5.1 Mod. 0.0015 0.0015
Tc(D)K (-55 ~150°C) IPC-650 2.5.5.6 Mod. ppm/°C -72 ppm/°C -72
Dielectric Breakdown Voltage IPC-650 2.5.6 kV 45 kV 45
Dielectric Strength IPC-650 2.5.6.2 V/mil 770 V/mm 30,315
Moisture Absorption IPC-650 2.6.2.1 % 0.03 % 0.03
Peel Strength (1 oz. copper) IPC-650 2.4.8 lbs./inch 7 N/mm 1.3
Volume Resistivity IPC-650 2.5.17.1 Mohms/cm 10^9 Mohms/cm 10^9
Surface Resistivity IPC-650 2.5.17.1 Mohms 10^8 Mohms 10^8
Tensile Strength (MD) IPC-650 2.4.18.3 psi 9137 N/mm2 63
Tensile Strength (CD) IPC-650 2.4.18.3 psi 9572 N/mm2 66
Tensile Modulus (MD) IPC-650 2.4.18.3 psi 182,748 N/mm2 1260
Tensile Modulus (CD) IPC-650 2.4.18.3 psi 165,344 N/mm2 1140
Elongation (MD) IPC-650 2.4.18.3 % 6 % 6
Elongation (CD) IPC-650 2.4.18.3 % 6.9 % 6.9
Flex Strength (MD) ASTM D790 psi 10,300 N/mm2 71
Flex Strength (CD) ASTM D790 psi 11,600 N/mm2 80
Flex Modulus (MD) ASTM D790 psi 377,100 N/mm2 2600
Flex Modulus (CD) ASTM D790 psi 432,213 N/mm2 2980
Dimensional Stability (MD) IPC-650 2.4.39(Bake) % (10 mil) -0.05 % (30 mil) -0.05
Dimensional Stability (CD) IPC-650 2.4.39(Bake) % (10 mil) -0.17 % (30 mil) -0.11
Dimensional Stability (MD) IPC-650 2.4.39(Stress) % (10 mil) -0.07 % (30 mil) -0.07
Dimensional Stability (CD) IPC-650 2.4.39(Stress) % (10 mil) -0.22 % (30 mil) -0.14
Density (Specific Gravity) IPC-650 2.3.5 g/cm3 1.92 g/cm3 1.92
Specific Heat IPC-650 2.4.50 J/g°C 0.95 J/g°C 0.95
Thermal Conductivity IPC-650 2.4.50 W/M*K 0.2 W/M*K 0.2
CTE (x-y) (50 - 150°C) IPC-650 2.4.41 ppm/ºC 30-40 ppm/ºC 30-40
CTE (z) (50 - 150°C) IPC-650 2.4.41 ppm/ºC 130 ppm/ºC 130
Hardness ASTM D2240(Durometer) - 68 - 68
UL-94 Flammability Rating UL-94 V-0 V-0
