TLX-0 PCB 10mil: Empowering RF Microwave Designs with Unparalleled Versatility and Reliability

  • December 27. 2023
Introduction

The TLX-0 PCB 10mil, part of the TLX series laminates, represents a groundbreaking advancement in the field of RF microwave substrates. Crafted with PTFE fiberglass composites, this PCB offers a remarkable blend of reliability and versatility, making it an ideal choice for a wide range of RF applications. With its exceptional mechanical and thermal properties, resistance to extreme environments, and low layer count microwave design suitability,TaconicTLX-0 PCB is a workhorse in the RF microwave substrate world.


TLX-0 PCB Overview

The TLX series laminates, including TLX-0, are engineered using PTFE fiberglass composites, enabling them to thrive in demanding RF applications. Boasting a dielectric constant (DK) range of 2.45 - 2.65, TLX-0 offers excellent electrical properties, making it an attractive choice for RF circuitry. Notably, TLX-0 stands out with its dielectric constant of 2.45, tightly controlled with a tolerance of ± 0.04, ensuring consistent performance across designs.

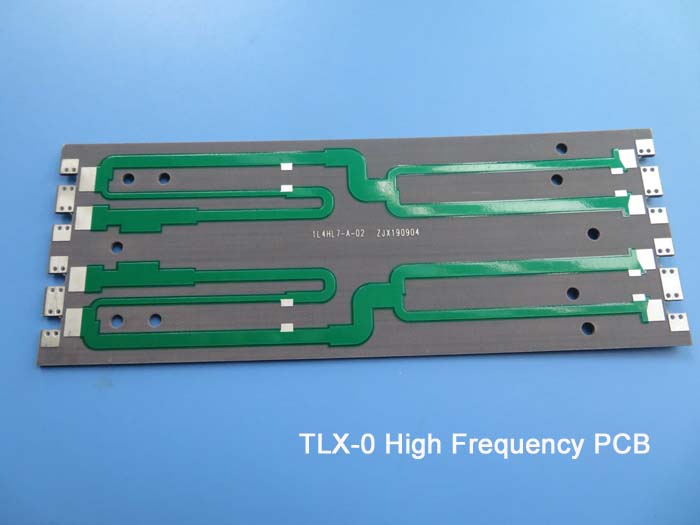

TLX-0 high frequency PCB


Features and Benefits

The TLX-0 PCB 10mil comes equipped with a host of impressive features that enhance its performance and reliability. With a DK of 2.45 +/- 0.04 at 10GHz and a dissipation factor (DF) of 0.0021 at the same frequency, TLX-0 ensures low signal loss and excellent signal integrity. Additionally, its low moisture absorption of 0.02% safeguards against environmental moisture effects.


The dimensional stability of TLX-0 is a key benefit, as it enables precise manufacturing and consistent performance over time. With X, Y, and Z coefficient of thermal expansion (CTE) values of 21 ppm/°C, 23 ppm/°C, and 215 ppm/°C respectively, TLX-0 remains stable even in challenging temperature environments. Its peel strength of 12 lbs/in showcases its robust mechanical properties, ensuring reliable bonding and durability.


PCB Construction and Specifications

The TLX-0 PCB 10mil substrate is a 2-layer rigid PCB constructed with meticulous attention to detail. With a copper layer thickness of 35 μm on both sides and a TLX-0 core thickness of 0.254 mm (10mil), this PCB strikes the perfect balance between performance and compactness.


The board dimensions of 80mm x 40.8 mm, with a tolerance of +/- 0.15mm, provide ample space for diverse RF designs. The minimum trace/space of 6/7 mils and a minimum hole size of 0.3mm further contribute to the PCB's flexibility and adaptability. The finished board thickness of 0.32mm, coupled with a 1oz (1.4 mils) outer layer copper weight, ensures a compact yet robust structure.


To enhance reliability, the Taconic TLX-0 PCB features 20 μm via plating thickness and an immersion gold surface finish. While it does not include top or bottom silkscreen or solder mask, the absence of these elements allows for precise and efficient manufacturing without compromising performance. Each PCB undergoes a rigorous 100% electrical test before shipment, ensuring optimal functionality.

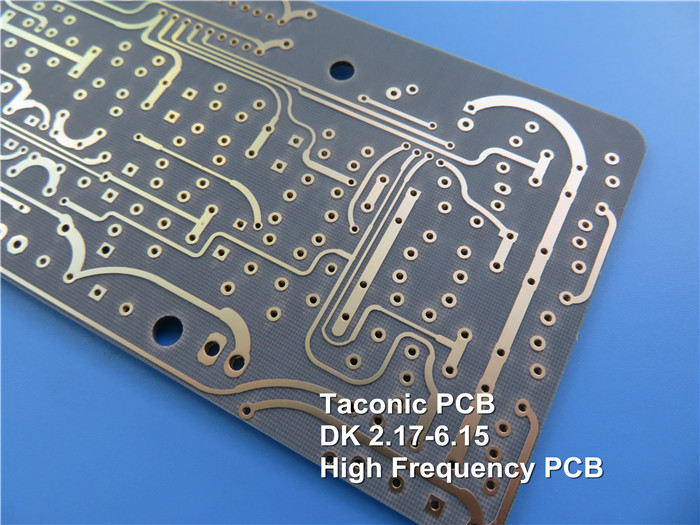

Taconic TLX-0 PCB


Applications and Impact

The TLX-0 PCB 10mil finds extensive applications across various RF domains, revolutionizing the way RF components and systems are designed and implemented. Its excellent PIM values, measured lower than -160 dBc, make it an ideal choice for couplers, splitters, combiners, amplifiers, antennas, and passive components. Additionally, its reliability and stability make it indispensable in radar systems, mobile communications, microwave test equipment, and microwave transmission devices.


By providing a reliable substrate for RF components, TLX-0 PCB empowers engineers to unleash their creativity and push the boundaries of RF technology. Its impact extends to sectors such as aerospace, defense, telecommunications, and scientific research, where its resistance to vibration, high temperatures, radiation, and extreme environments is highly valued.


Conclusion

The TLX-0 PCB 10mil stands tall as a game-changer in the realm of RF microwave substrates. Its unique blend of reliability, versatility, and exceptional mechanical and thermal properties make it an indispensable tool for RF engineers and designers. With its low and stable DK, tight tolerance, and UL 94 V0 rating, the TLX-0 PCB Taconic 10mil substrate sets a new standard for performance, enabling groundbreaking RF designs across the globe. Embrace the TLX-0 high frequency PCB and unlock a world of possibilities inRF microwave applications, where innovation and reliability go hand in hand. With TLX-0, the future of RF technology is within reach.
