What Is RT/duroid 6006 PCB?
What Is RT/duroid 6006 PCB?
In the realm of electronic and microwave circuit applications, the Rogers RT/duroid 6006 laminates stand tall as ceramic-PTFE composites that redefine performance benchmarks. Engineered to deliver exceptional dielectric properties and reliability, the RT/duroid 6006 PCB 25mil is a game-changer in the world of high-frequency circuits.
Introductionto RT/duroid 6006
The RT/duroid 6006 laminates by Rogers Corporation represent a fusion of ceramic and PTFE, tailored to meet the demands of high-frequency circuitry. Boasting a high dielectric constant, these materials excel in applications requiring miniaturization without compromising performance. With a focus on low loss characteristics, the Rogers 6006 High Frequency PCB shines in X-band operations and beyond. Its precise Dk and thickness control ensure consistent circuit performance, setting a new standard in reliability.
Features that Define Excellence
1) Impressive Specifications: With a dielectric constant (Dk) of 6.15 +/- 0.15 at 10 GHz/23°C and a dissipation factor of 0.0027 at the same frequency and temperature, RT/duroid 6006 sets a new standard in performance.
2) Thermal Durability: Td exceeding 500°C TGA ensures reliability even in high-temperature environments.
3) Minimal Moisture Absorption: With just 0.05% moisture absorption, these laminates maintain stability under varying conditions.
4) Precise Control: The CTE values in different axes (X-axis of 47 ppm/°C, Y-axis of 34 ppm/°C, and Z-axis of 117 ppm/°C) ensure consistent performance.
5) Copper Cladding: Clad with standard and reverse treated electrodeposited copper foil, guaranteeing superior conductivity.
Benefits That Redefine Possibilities
1) Size Efficiency:The high dielectric constant facilitates circuit size reduction, optimizing space utilization.
2) Performance Optimization: Low loss characteristics make it perfect for X-band or lower frequency operations.
3) Consistent Results: Tightεr and thickness control ensure repeatable circuit performance, eliminating variability.
4) Reliability: Low moisture absorption and reliable plated through-holes in multi-layer boards enhance long-term functionality.

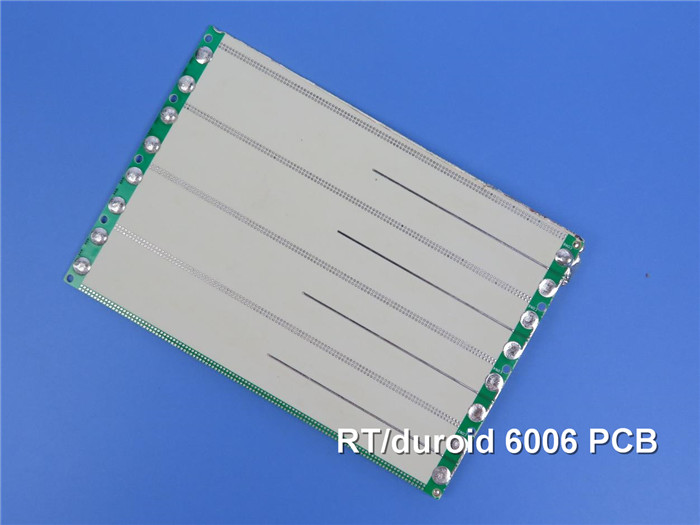

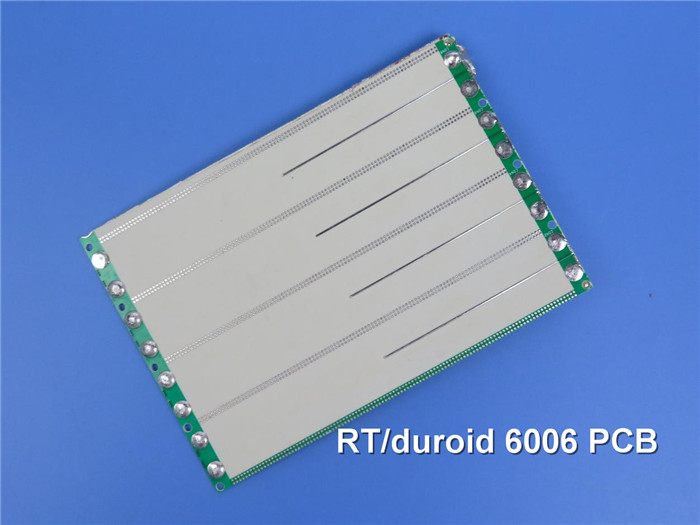

Rogers 6006 PCB Stackup
The Rogers 6006 PCB Prototype comes in a 2-layer rigid design, featuring a copper layer on each side with a thickness of 35um. The core of the PCB comprises the RT/duroid 6006 material, measuring 0.635 mm (25mil) in thickness. This construction ensures robustness and stability, essential for demanding applications.
Rogers 6006 PCB Construction Details
Board Dimensions: 65.33mm x 59.89 mm with a tolerance of +/- 0.15mm.
Minimum Trace/Space: 5/5 mils, enabling intricate circuit layouts.
Minimum Hole Size: 0.5mm, accommodating various components and connectors.
Finished Board Thickness: 0.7mm, striking a balance between durability and flexibility.
Surface Finish: Immersion silver, ensuring superior conductivity and corrosion resistance.
Electrical Testing: 100% electrical testing before shipment guarantees product reliability.
Statistics
Components: 16, indicating versatility in accommodating various circuit elements.
Total Pads: 50, facilitating seamless connectivity and integration.
Thru Hole Pads: 26, ensuring robust connections for through-hole components.
SMT Pads: 24 on the top layer, catering to surface mount components.
Vias: 19, enabling efficient signal routing and interconnection.
Accepted Standard: IPC-Class-2, adhering to industry quality benchmarks.
Availability: Worldwide, ensuring accessibility for global projects.
Applications
The Rogers 6006 PCB Printed Circuit finds its application across a spectrum of industries, including:
Patch Antennas: Ensuring reliable signal transmission in communication systems.
Satellite Communications: Powering seamless data exchange in satellite systems.
Power Amplifiers: Enhancing performance in amplification circuits.
Aircraft Collision Avoidance: Contributing to safety systems in aviation.
Ground Radar Warning: Enabling robust radar systems for threat detection.
Conclusion: Elevate Your Circuits with RT/duroid 6006 PCB
In conclusion, the RT/duroid 6006 Rogers PCB is a testament to precision engineering and cutting-edge technology. With its exceptional dielectric properties, low loss design, and robust construction, it sets a new standard for high-frequency circuitry. Whether you are exploring advanced communication systems or aerospace applications, this high frequency PCB is poised to elevate your projects to new heights of performance and reliability.
Elevate your circuits with RT/duroid 6006 PCB and experience the difference precision can make!
