Why TLY-5 PCB Is the Go-To Choice for Automotive Radar and Satellite Communications？

In the ever-evolving world of electronics, the demand for high-performance, reliable, and dimensionally stable printed circuit boards (PCBs) is at an all-time high. Whether it's for automotive radar systems, satellite communications, or aerospace applications, the need for PCBs that can operate efficiently at high frequencies while maintaining mechanical stability is critical. Enter the TLY-5 PCB 20mil—a cutting-edge solution designed to meet the rigorous demands of modern high-frequency applications. In this blog, we’ll take a deep dive into the features, benefits, and applications of this PCB, and explore why it’s the ideal choice for your next project.

TLY-5 PCB 20mil: An Overview

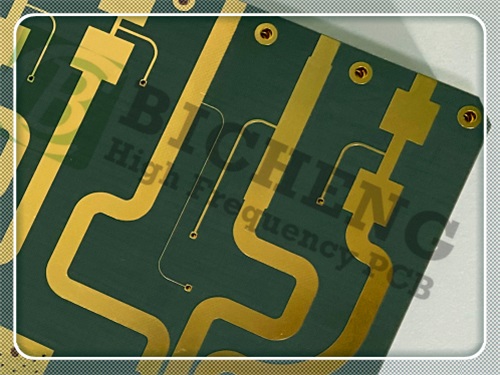

The Taconic TLY-5 PCB is a 2-layer rigid PCB constructed using TLY-5 laminates, a material renowned for its exceptional performance in high-frequency applications.TLY-5 substrates are manufactured with lightweight woven fiberglass, offering superior dimensional stability compared to traditional chopped fiber-reinforced PTFE composites. This woven matrix ensures mechanical stability, making it suitable for high-volume manufacturing processes. With its low dissipation factor and consistent dielectric properties, theTLY-5 PCB is perfectly suited for applications such as automotive radar systems operating at 77 GHz and other millimeter-wave frequency antennas.

Key Features of the TLY-5 PCB 20mil

The TLY-5 Taconic RF PCB stands out in the market due to its impressive technical specifications and performance characteristics. Here’s a closer look at its key features:

1. Dielectric Constant (Dk) of 2.2 with Tight Tolerance (±0.02 at 10 GHz/23°C)

The TLY-5 PCB offers a low and stable dielectric constant, ensuring consistent signal integrity across high-frequency applications. This tight tolerance is critical for maintaining performance in demanding environments.

2. Ultra-Low Loss Tangent (0.0009 at 10 GHz)

With a dissipation factor as low as 0.0009, the TLY-5 PCB minimizes signal loss, making it ideal for high-frequency designs where signal integrity is paramount.

3. Low Moisture Absorption (0.02%)

The TLY-5 material’s low moisture absorption rate ensures reliable performance even in humid or challenging environments, reducing the risk of performance degradation over time.

4. Excellent Thermal Stability (CTE in X-axis: 26 ppm/°C, Y-axis: 15 ppm/°C, Z-axis: 217 ppm/°C)

The PCB’s coefficient of thermal expansion (CTE) is carefully engineered to match the thermal properties of copper, reducing the risk of delamination or warping during thermal cycling.

5. High Copper Peel Strength

The TLY-5 PCB boasts exceptional copper peel strength, ensuring robust mechanical and electrical connections even under stress.

6. Uniform and Consistent Dielectric Properties

The uniformity of the TLY-5 material ensures consistent performance across the entire board, which is crucial for high-frequency and high-speed designs.

Benefits of the TLY-5 PCB 20mil

The TLY-5 Taconic High Frequency PCB 20mil isn’t just about impressive specs—it delivers tangible benefits that can make a significant difference in your designs:

1. Dimensionally Stable for High-Volume Manufacturing

The woven fiberglass matrix of the TLY-5 material provides exceptional dimensional stability, making it ideal for high-volume production processes. This stability ensures consistent performance across multiple batches, reducing the risk of defects or failures.

2. Optimized for High-Frequency Applications

With its low dielectric constant and ultra-low loss tangent, the TLY-5 PCB is perfectly suited for high-frequency applications such as automotive radar, satellite communications, and millimeter-wave antennas.

3. Reliable in Harsh Environments

The low moisture absorption rate and excellent thermal stability make the TLY-5 PCB a reliable choice for applications in challenging environments, including automotive and aerospace systems.

4. Enhanced Signal Integrity

The uniform dielectric properties and low dissipation factor ensure minimal signal loss and distortion, making it an excellent choice for high-speed and high-frequency designs.

5. Cost-Effective Solution

Despite its advanced features, the TLY-5 PCB is designed to be cost-effective, offering exceptional value for high-performance applications.

Technical Specifications and Construction Details

The TLY-5 20mil Taconic PCB Substrate is engineered with precision to meet the highest standards of quality and performance. Here’s a detailed breakdown of its construction and technical specifications:

- PCB Stackup:

- Copper Layer 1: 35μm

- TLY-5 Core: 0.508 mm (20 mil)

- Copper Layer 2: 35μm

- Board Dimensions: 175 mm x 170 mm (1 PCS), with a tolerance of±0.15 mm.

- Trace/Space: Minimum trace/space of 9/12 mils, ensuring high-density designs with reliable signal routing.

- Hole Size: Minimum hole size of 0.3 mm, suitable for a wide range of component mounting requirements.

- Finished Board Thickness: 0.6 mm, providing a balance between durability and flexibility.

- Copper Weight: 1 oz (1.4 mils) on outer layers, ensuring robust electrical conductivity.

- Via Plating Thickness: 20μm, providing reliable interlayer connections.

- Surface Finish: Immersion gold, offering excellent solderability and corrosion resistance.

- Electrical Testing: 100% electrical testing is performed prior to shipment, ensuring reliability and performance.

- Artwork Format: Gerber RS-274-X, the industry-standard format for PCB design files.

- Accepted Standard: IPC-Class-2, ensuring high-quality manufacturing and reliability.

Applications

The TLY-5 Taconic RF PCB Circuit Board is a versatile solution designed for a wide range of high-frequency and high-performance applications. Some of its typical uses include:

1. Automotive Radar Systems

With its low dissipation factor and stable dielectric properties, the TLY-5 PCB is ideal for automotive radar systems operating at 77 GHz, ensuring accurate and reliable performance.

2. Satellite and Cellular Communications

The PCB’s high-frequency capabilities make it a perfect choice for satellite and cellular communication systems, where signal integrity and reliability are critical.

3. Power Amplifiers

The TLY-5 PCB’s low loss tangent and high copper peel strength make it an excellent choice for power amplifier designs, ensuring efficient signal transmission and durability.

4. Low-Noise Blocks (LNBs), Low-Noise Amplifiers (LNAs), and Low-Noise Converters (LNCs)

The PCB’s consistent dielectric properties and low moisture absorption make it a reliable choice for sensitive RF components.

5. Aerospace Systems

The TLY-5 PCB’s thermal stability and low moisture absorption make it a dependable solution for aerospace applications, where reliability is paramount.

6. Ka, E, and W Band Applications

The PCB’s high-frequency performance makes it suitable for a wide range of millimeter-wave applications, including Ka, E, and W band systems.

Why Choose the TLY-5 PCB 20mil?

The Taconic TLY-5 PCB 20mil is more than just a PCB—it’s a solution designed to address the challenges of modern high-frequency applications. With its advanced features, reliable performance, and cost-effective design, it’s the ideal choice for engineers and designers looking to push the boundaries of what’s possible. Whether you’re working on automotive radar systems, satellite communications, or aerospace applications, the TLY-5 PCB 20mil delivers the performance, reliability, and consistency you need to succeed.

Availability and Ordering Information

The TLY-5 20mil Taconic PCB Laminates is available worldwide, making it easy to incorporate into your designs no matter where you are. With its IPC-Class-2 certification and 100% electrical testing, you can trust that every board meets the highest standards of quality and reliability.

Ready to take your designs to the next level? Contact us today to learn more about the Taconic TLY-5 DK2.2 PCB and how it can benefit your next project. Whether you’re looking for a reliable solution for automotive radar, satellite communications, or aerospace systems, the TLY-5 high frequency PCB is here to help you achieve your goals.
