The IsoClad 933 Rogers PCB represents a significant advancement in substrate technology, offering a blend of flexibility, stability, and high performance.
Item NO.:
BIC-256-v321.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

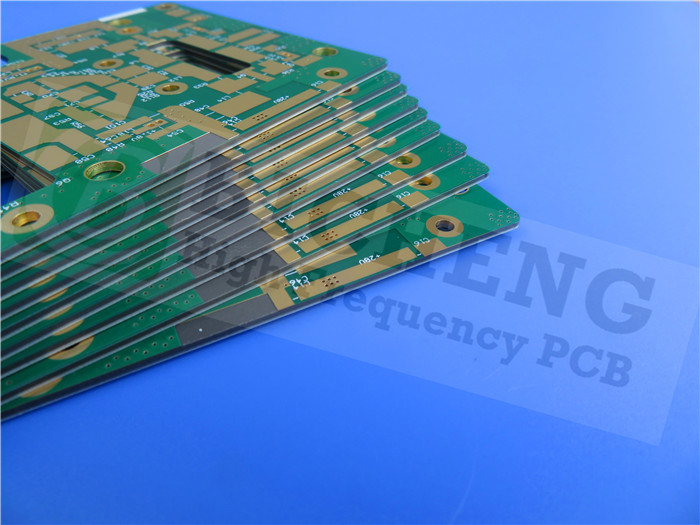

IsoClad 933 PCB Rogers 15mil 2-layer High Frequency Circuit Board
In the ever-evolving landscape of PCB substrate, the IsoClad 933 from Rogers Corporation emerges as a game-changer, offering unparalleled performance and versatility in high-frequency applications. Crafted from non-woven fiberglass/PTFE composites, this laminate is designed to meet the demands of modern electronics where flexibility and dimensional stability are paramount. Let's delve deeper into the features, benefits, construction details, statistics, and applications of the IsoClad 933 PCB.
Introduction to IsoClad 933
The Rogers IsoClad 933 laminates are engineered with non-woven reinforcement, allowing for exceptional conformability in PCB applications. By utilizing longer random fibers and a proprietary manufacturing process, IsoClad 933 delivers outstanding dimensional stability and increased mechanical strength, setting a new standard in substrate performance.
Features of IsoClad 933
Dielectric Constant (DK): 2.33 at 10GHz/23°C
Dissipation Factor: 0.0016 at 10GHz/23°C
Peel Strength: 10 lbs. per inch
Low Water Absorption: 0.05%
Low Outgassing: 0.03% TML, 0 CVCM, 0.02% WVR
Excellent Dk Uniformity
Benefits of IsoClad 933
Flexibility: Less rigid than woven fiberglass, ideal for applications requiring conformability.
Isotropic Properties: Highly isotropic in X, Y, and Z axes, ensuring uniform performance.
Stable Dk: Maintains a stable dielectric constant across a range of frequencies.
Dimensional Stability: Offers improved dimensional stability for reliable performance.
IsoClad 933 PCB Stackup and Construction Details
2-layer Rigid PCB:
Copper Layer 1: 35 μm
Rogers IsoClad 933 Core: 0.381 mm (15mil)
Copper Layer 2: 35 μm
Board Specifications
Parameter |
Value |
Board Dimensions |
170mm x 170mm=1PCS, +/- 0.15mm |
Minimum Trace/Space |
4/6 mils |
Minimum Hole Size |
0.3mm |
Blind Vias |
No |
Finished Board Thickness |
0.5mm |
Finished Cu Weight |
1oz (1.4 mils) outer layers |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion Gold |
Top Silkscreen |
White |
Bottom Silkscreen |
No |
Top Solder Mask |
Green |
Bottom Solder Mask |
No |
Electrical Test |
100% prior to shipment |
PCB Statistics
Parameter |
Value |
Components |
41 |
Total Pads |
135 |
Thru Hole Pads |
89 |
Top SMT Pads |
46 |
Bottom SMT Pads |
0 |
Vias |
76 |
Nets |
2 |
Compliance and Standards
Artwork Format: Gerber RS-274-X files are utilized for manufacturing, ensuring seamless translation of design specifications.
Quality Standard: Meeting IPC-Class-2 standards, these PCBs adhere to stringent quality and reliability benchmarks.
Typical Applications
The versatility of IsoClad 933 15mil substrate PCB makes it suitable for a wide range of high-frequency applications, including:
Conformal Antennas
Stripline and Microstrip Circuits
Guidance Systems
Radar and Electronic Warfare Systems
Conclusion
In conclusion, the IsoClad 933 Rogers PCB represents a significant advancement in substrate technology, offering a blend of flexibility, stability, and high performance. With its exceptional features, benefits, and applications, it stands as a top choice for demanding high-frequency electronic designs. Experience the future of high frequency PCB substrates with IsoClad 933 - where innovation meets reliability.
