TP450 PCB 2-Layer TP-series Laminates 2.5mm Thick Bare Copper

TP450 PCB 2-Layer TP-series Laminates 2.5mm Thick Bare Copper

Product Overview

The TP450 PCB is a high-performance 2-layer rigid printed circuit board designed for demanding high-frequency applications. Built with TP450 PCB laminate, this PCB offers exceptional dielectric stability, low signal loss, and high reliability in extreme environments. With a finished thickness of 2.6mm, 1oz copper weight, and ENIG (Electroless Nickel Immersion Gold) surface finish, this board is ideal for aerospace, military, and advanced RF applications.

Engineered for precision, the 2-layer TP450 PCB features a 6/4 mil trace/space capability and supports 0.5mm minimum hole size, ensuring robust signal integrity. The glass-free thermoplastic construction provides superior thermal and mechanical stability, making it suitable for missile systems, satellite navigation, and antenna designs.

Key Features & Benefits

• Dielectric Constant (Dk): 4.5±0.2 @ 10GHz (stable across frequencies)
• Ultra-Low Loss Tangent (Df): 0.0010 @ 10GHz (minimizes signal attenuation)
• Low CTE (Coefficient of Thermal Expansion):
• -X/Y-axis: 50 ppm/°C
• -Z-axis: 60 ppm/°C (prevents warping under thermal stress)
• Thermal Conductivity: 0.44 W/mK (effective heat dissipation)
• Moisture Absorption: 0.01% (excellent humidity resistance)
• UL 94-V0 Flame Retardant (meets stringent safety standards)

PCB Construction Details

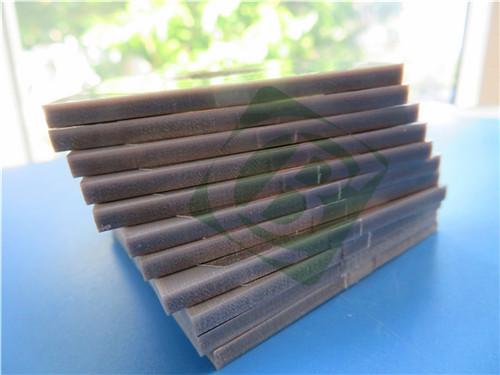

The 2.5 mm TP450 PCB is constructed with a high-frequency thermoplastic core, ensuring excellent signal integrity and thermal performance. Below are the detailed specifications:

PCB Stackup

The PCB stackup consists of athick TP450 PCB core with symmetrical copper layers for balanced signal transmission.

PCB Statistics

The TP450 PCB board supports a moderate component density with a mix of through-hole and SMT pads.

Additional Technical Information

• -Artwork Format: Gerber RS-274-X (industry-standard for PCB fabrication)
• -Quality Standard: IPC-Class-2 (high-reliability applications)
• -Availability: Worldwide (ready for global procurement)

Why Choose TP450 Material?

The TP-series PCB laminates are unique in the PCB industry due to their ceramic-PPO resin composition, which eliminates fiberglass reinforcement. This results in:

• Precise Dielectric Constant (Dk) Control (adjustable from 3.0 to 25)
• Ultra-Low Loss at High Frequencies (ideal for 5G, mmWave, and radar)
• Superior Thermal & Mechanical Stability (resists warping and delamination)

Typical Applications

Due to its exceptional high-frequency performance, this TP450 high frequency PCB is widely used in:

-Global Satellite Navigation (GPS, GLONASS)

-Missile-Borne Electronics & Fuze Systems

-High-Frequency Antennas & RF Filters

-Military & Aerospace Communication Systems

Conclusion

The TP450 PCB (2-Layer, 2.5mm Thick, Bare Copper) is a high-reliability, high-frequency circuit board engineered for mission-critical applications. With low-loss signal transmission, excellent thermal stability, and robust construction, it is the ideal choice for defense, aerospace, and advanced RF systems.

For custom configurations or bulk orders, contact our sales team for worldwide availability and quick-turn manufacturing options.
