RT/duroid 5880LZ PCB: Key Properties, Customization, and High-Performance Uses

In high-performance electronics, PCB material selection defines a product’s functionality—especially for high-frequency or weight-constrained designs.Rogers RT/duroid 5880LZ laminates stand out as filled polytetrafluoroethylene (PTFE) composites, engineered explicitly for demanding strip-line and micro-strip circuits. Their unique formulation solves two critical challenges: delivering top-tier electrical performance while keeping components lightweight—a must for industries like aerospace and defense.

The laminate’s specialized filler is its defining feature, enabling low density and a lightweight profile. For applications where every gram impacts efficiency (e.g., airborne systems), this trait is transformative. It lets engineers design high-performance circuits without compromising weight limits, makingRT/duroid 5880LZ a go-to for weight-sensitive, high-performance needs.

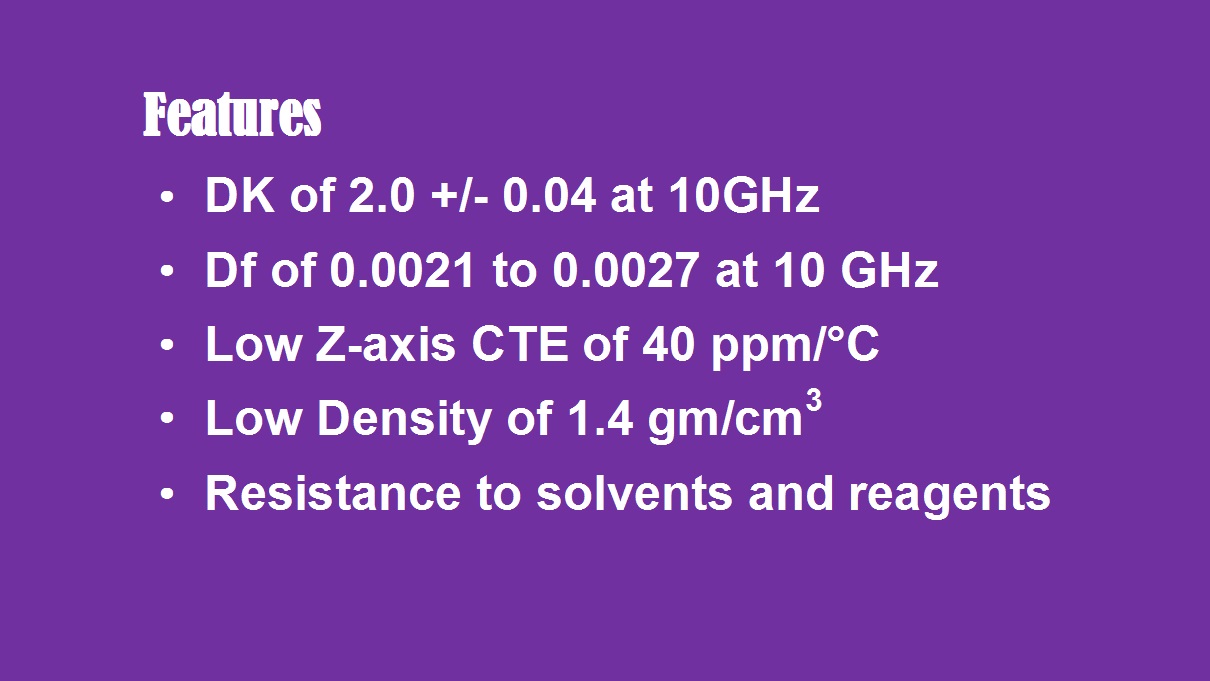

Core Properties of RT/duroid 5880LZ

Rogers 5880LZ’s reputation stems from properties tailored to fix common electronic design pain points.

First, its low dielectric constant (Dk) of 2.00 +/- 0.04 minimizes signal delay and loss in high-frequency circuits—critical for clear data/power transmission. What makes this stand out is consistency: Dk is uniform across panels and stable over a wide frequency range, ensuring reliability for multi-band systems.

Complementing this is a low dissipation factor (0.0021–0.0027 at 10GHz). This measures energy lost as heat; a low value means minimal waste, which is vital for radar or satellite systems where efficiency dictates operational range.

Thermal stability is another strength, thanks to a low Z-axis coefficient of thermal expansion (CTE) of 40 ppm/°C. Z-axis CTE controls vertical expansion, protecting plated through-holes (PTHs) from cracking during temperature fluctuations—essential for harsh environments like aerospace thermal shocks.

Its low density (1.4 gm/cm³) reinforces weight efficiency, while exceptional chemical resistance ensures durability during manufacturing. It withstands solvents/reagents used in etching/plating (hot or cold) without degrading structural or electrical integrity.

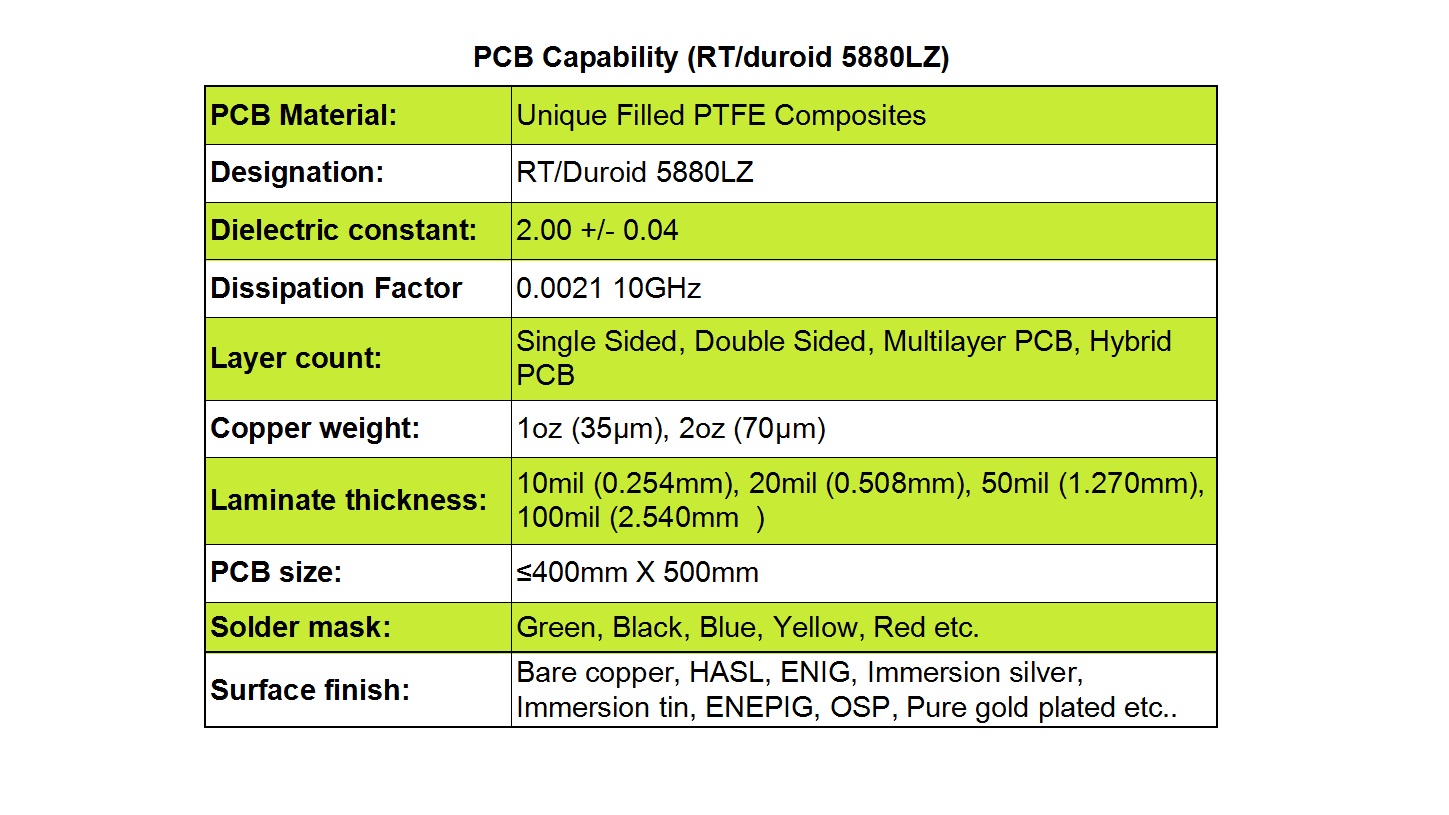

Our RT/duroid 5880LZ Manufacturing Capabilities

We prioritize customization to meet unique design needs, offering a range of flexible options for RT/duroid 5880LZ PCBs:

Configurations:

Single-sided (simple, low-cost designs), double-sided (extra routing flexibility), multilayer (high-density compact systems), and hybrid (specialized material/structure combinations) to suit projects of all scopes.

Copper Weight:

1oz (35µm, balances conductivity and weight) and 2oz (70µm, for high-power components like radar transmitters).

Thickness:

10mil (0.254mm, compact devices), 20mil (0.508mm), 50mil (1.270mm), and 100mil (2.540mm, rugged industrial use)—matching design size and stability needs.

Maximum Size:

400mm X 500mm, accommodating large designs like airborne antenna panels.

Aesthetics & Compatibility:

Solder mask colors (green, black, blue, etc.) for branding/design alignment; surface finishes (bare copper, HASL, ENIG, immersion silver/tin, ENEPIG, OSP, pure gold) to fit assembly processes and reliability requirements.

Key Applications

RT/duroid 5880LZ high frequency PCBs excel in industries needing performance and weight efficiency:

1.Airborne Antennas:

Lightweight design cuts fuel use, while low Dk/dissipation factor ensures minimal signal loss at high altitudes.

2.Lightweight Feed Networks:

Distribute signals efficiently without adding weight, critical for antenna performance.

3.Radar Systems:

High-frequency stability and thermal resistance handle transmitter heat, avoiding signal distortion.

4.Guidance Systems:

Withstand extreme conditions (temperature, vibration) while maintaining precise signal processing.

5.Point-to-Point Digital Radio Antennas:

Enable long-range communication with minimal signal loss, ideal for rural/emergency networks.

In short, RT/duroid 5880LZ PCBs merge high performance with weight efficiency. Paired with our customizable manufacturing, they meet the most complex design needs—from aerospace to industrial radar. For projects prioritizing reliability, frequency performance, or weight, they deliver consistent, trusted results.
