What Makes Rogers AD250C PCB the Ideal Choice for High-Frequency Antenna Applications?

In the rapidly evolving world of wireless communication, the demand for high-performance, reliable antenna systems continues to grow. Rogers Corporation’s AD250C antenna laminates stand out as a premier specialty material engineered to address the exacting requirements of modern RF and microwave antenna markets. These advanced laminates are constructed from PTFE-based substrates reinforced with woven glass, resulting in superior high-frequency performance, exceptional passive intermodulation (PIM) characteristics, and outstanding processability for printed circuit board fabrication.

One of the most significant advantages of Rogers AD250C material is its composition. The glass-reinforced polytetrafluoroethylene (PTFE) structure ensures a tightly controlled dielectric constant while delivering remarkably low signal loss. This makes it an excellent foundation for antenna systems where signal integrity is paramount. Furthermore, the material is available with either standard electrodeposited copper foil or reverse-treated ED copper, providing designers the flexibility to optimize circuit efficiency and minimize passive intermodulation, a critical factor in multi-frequency and high-power environments.

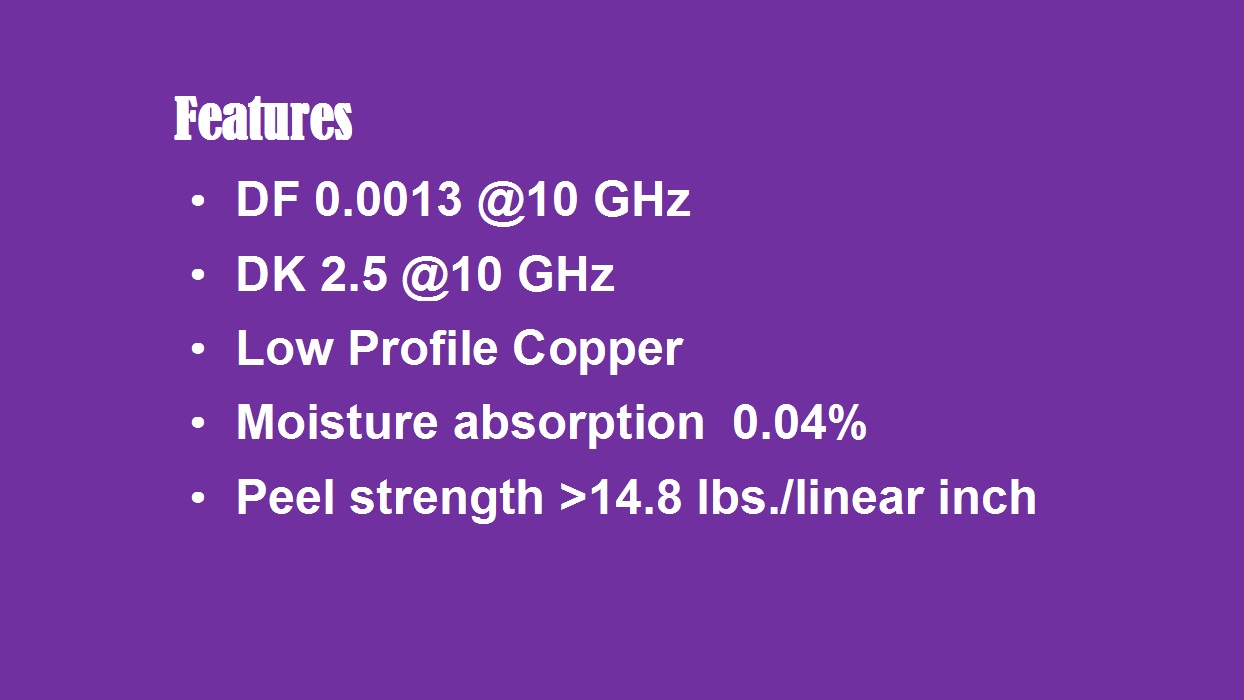

Key Features of AD250C Antenna Laminates:

Extremely low dissipation factor of 0.0013 at 10 GHz, ideal for base station and other high-frequency applications, ensuring minimal signal loss and enhanced efficiency.

Consistent dielectric constant (Dk) of 2.50 with a narrow tolerance of±0.04, allowing accurate impedance matching and reliable signal propagation.

Low-profile copper foil options significantly reduce conductor losses, contributing to improved overall antenna gain and performance.

Moisture absorption as low as 0.04% guarantees stable operation under varying environmental conditions, maintaining electrical properties and prolonging service life.

Exceptional copper peel strength reaching 14.8 lbs per inch ensures robust mechanical adhesion between copper layers and substrate, enhancing durability in demanding applications.

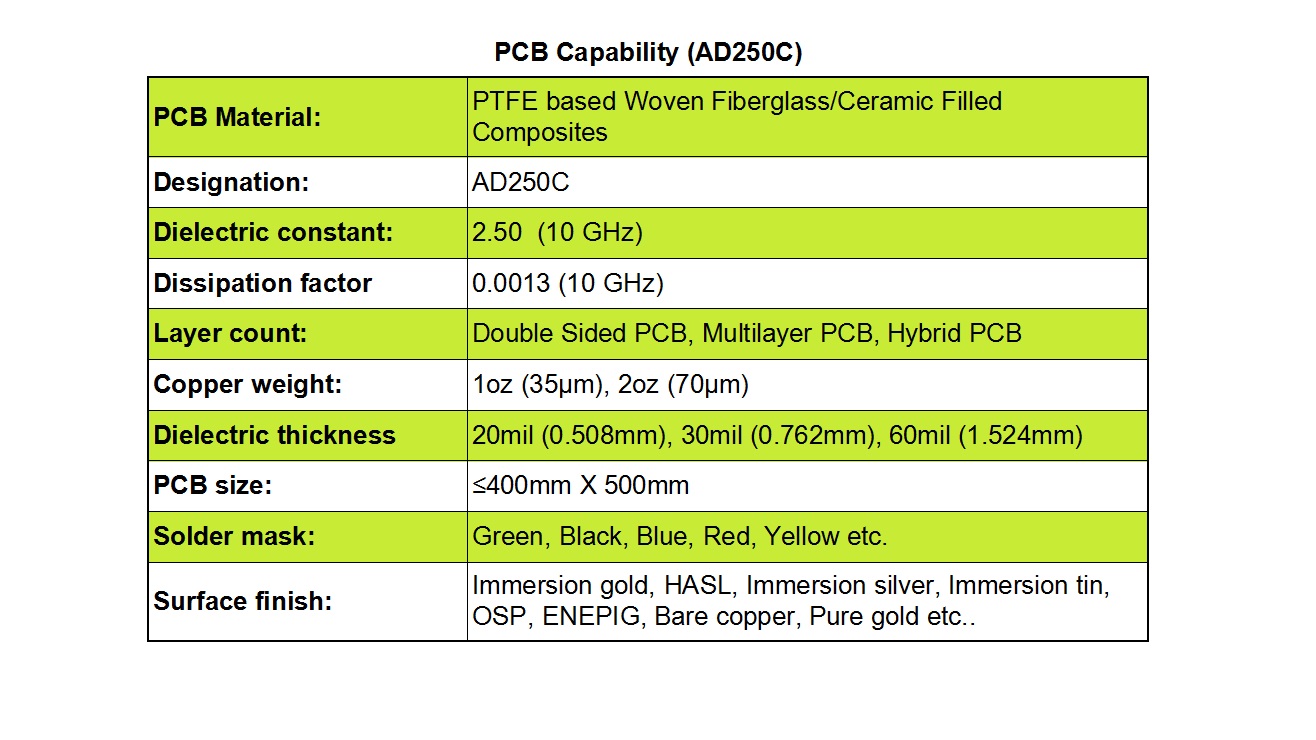

PCB Fabrication Capabilities with AD250C:

Our manufacturing services fully support AD250C substrates with a comprehensive suite of PCB solutions. We provide single-layer, double-layer, and multi-layer board configurations, as well as hybrid builds combining different materials. Standard thickness offerings include 20 mil, 30 mil, and 60 mil, with flexibility to accommodate custom requirements. Finished copper weights of 1oz and 2oz are available for traces and pads, balancing current carrying capacity and fine-line patterning.

We can produce large-format PCBs up to 400mm x 500mm, facilitating both individual large antennas and multi-design panelization for cost-effective production. A variety of solder mask colors—including green, black, blue, red, and yellow—are offered for aesthetic and functional preferences. We also support multiple surface finishes such as immersion gold (ENIG), hot air solder leveling (HASL), immersion silver, immersion tin, OSP, ENEPIG, as well as bare copper or selective gold plating.

Application Areas:

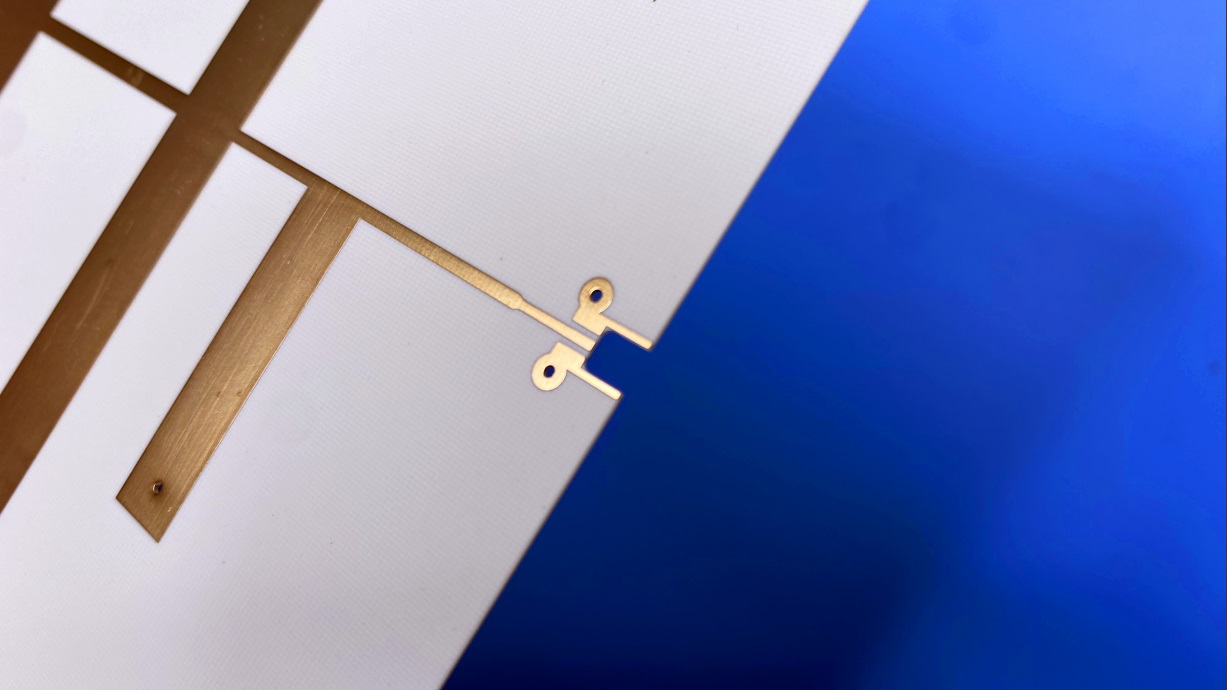

AD250C high frequency PCBs are widely used in critical communication infrastructure, including cellular base station antennas, automotive telematics and vehicle-to-everything (V2X) antenna systems, commercial satellite radio antennas, and other high-frequency wireless applications where low loss, high reliability, and consistent performance are essential.

Whether you are developing next-generation 5G infrastructure, advanced automotive radar, or satellite communication equipment, AD250C Rogers PCB provide the electrical and mechanical properties needed to achieve superior performance. Partner with us for your PCB manufacturing needs and leverage our expertise in high-frequency materials to bring your most challenging designs to life.
