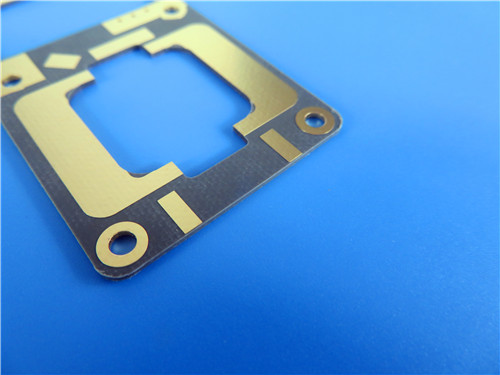

Why Choose 10mil Rogers 5880LZ for High-Frequency, Low-Loss PCB Designs?

In the competitive landscape of RF and microwave engineering, selecting the optimal PCB substrate is a foundational decision that directly impacts performance, reliability, and system success. Among high-performance materials, Rogers RT/duroid 5880LZ stands out, particularly in the 10mil (0.254mm) thickness variant for double-layer designs. For engineers prioritizing signal integrity and minimal loss in high-frequency applications, this combination is often the superior choice. Here’s a detailed breakdown of why.

1. Unmatched Electrical Performance at Microwave Frequencies

The primary driver for choosing 5880LZ is its exceptional and stable electrical properties, which are critical as frequencies climb into the Ku-band and beyond.

• Low & Stable Dielectric Constant (Dk=2.0): A consistent Dk of 2.0±0.04 across panels and over frequency ensures predictable signal propagation velocity and impedance. The 10mil thickness is particularly advantageous here, as it allows for manageable, manufacturable trace widths to achieve standard 50-ohm impedance in microstrip designs, minimizing design iteration and risk.

• Ultra-Low Dissipation Factor (Df as low as 0.0021): This is the key to "low-loss" performance. The exceptionally low Df directly translates to reduced signal attenuation, preserving power and integrity in sensitive applications like satellite communications, radar systems, and point-to-point radio links.

2. The "10mil" Thickness: A Sweet Spot for Design and Performance

The specified core thickness is not arbitrary; it offers a strategic balance:

• Optimal for Impedance Control: As mentioned, a 10mil substrate with a Dk of 2.0 yields sensible trace widths for controlled impedance lines, avoiding extremely narrow (hard to manufacture) or overly wide (space-inefficient) traces.

• Mechanical Robustness: While lightweight, a 10mil core provides sufficient rigidity for handling and assembly in many compact or lightweight feed networks, offering better structural integrity than ultra-thin cores while remaining svelte.

• Thermal Management: The material’s low Z-axis CTE (40 ppm/°C) combined with this thickness helps maintain plated through-hole (PTH) reliability during thermal cycling, a critical factor for reliability.

3. Engineered for Weight-Sensitive and Demanding Environments

Rogers RT/duroid 5880LZ is specifically formulated with a low density (1.4 gm/cm³). Choosing the 10mil thickness directly contributes to minimizing the overall weight of the PCB assembly. This is a decisive advantage for:

• Airborne and Aerospace Systems: Every gram saved in avionics, antenna systems, or missile guidance components is crucial.

• Space-Constrained Portable Electronics: Where performance cannot be sacrificed for size or weight.

• High-Reliability Applications: Its UL 94V-0 flammability rating and superior outgassing properties (meeting NASA standards) make 10mil 5880LZ PCBs suitable for vacuum and space environments.

4. Superior Manufacturing Consistency and Reliability

A 10mil Rogers 5880LZ laminate isn't just about electrical specs; it's about real-world buildability.

• Dimensional Stability: The material exhibits minimal shrinkage or movement during lamination and etching, ensuring that your precise high-frequency layouts are faithfully reproduced.

• Process Compatibility: It withstands standard PCB fabrication processes, including desmear and plating cycles, and is compatible with lead-free soldering. When paired with an Immersion Gold (ENIG) surface finish, you get a flat, oxidation-resistant surface ideal for fine-pitch components and reliable solder joints over time.

• Proven Quality: Fabrication to IPC-Class-2 standards, supported by 100% electrical testing, ensures that the theoretical benefits of the material translate into reliable, high-yielding physical boards.

5. Cost-Effectiveness for Performance Tier

While premium compared to standard FR-4, the 10mil 5880LZ in a 2-layer stack-up represents a highly cost-optimized path to elite RF performance. It avoids the complexity and cost of multilayer bonded structures or more exotic materials when your design can be effectively realized on two layers. It delivers maximum performance per dollar for applications that need its specific combination of low loss, stable Dk, and light weight.

Conclusion: A Targeted Solution for Elite Performance

Choosing 10mil Rogers 5880LZ for high-frequency, low-loss PCB designs is a calculated decision to prioritize:

• Predictable Signal Integrity through stable electrical properties.
• Minimal RF Loss for efficient system performance.
• Lightweight Construction without compromising rigidity.
• Manufacturing Reliability in demanding operating environments.

For engineers designing the next generation of military radar, airborne antennas, or high-speed digital radios, this material and thickness combination provides a trusted, proven foundation. It solves the core challenges of RF design—managing loss, controlling impedance, and reducing weight—making it not just a choice, but the strategic choice for mission-critical high-frequency applications.
