How the Low DK and DF of TLX-7 Improve RF Signal Integrity in High-Frequency PCBs?

In the world of RF (Radio Frequency) and microwave engineering, the PCB is not just a holder for components; it is a critical component of the circuit itself. As we push into higher frequencies (into the mmWave range), the margin for error shrinks dramatically. Every material property, every trace width, and every via introduces the potential for signal loss and distortion.

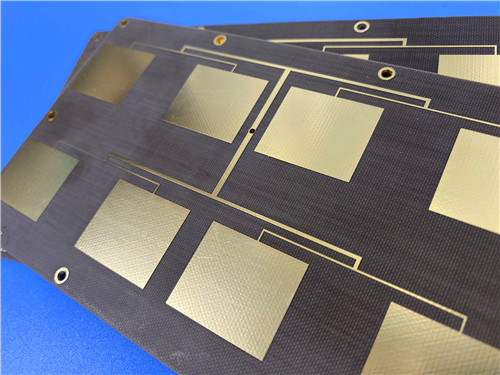

At Bicheng, we specialize inproviding high-precision PCBs that meet these exacting standards. A prime example of this capability is our 2-layer rigid PCB featuring the advanced Taconic TLX-7 laminate. Measuring 102mm x 86mm with a finished thickness of 0.8mm, this board is engineered specifically for demanding RF applications.

But what makes this specific material choice so critical? The answer lies in two key material properties: DK (Dielectric Constant) and DF (Dissipation Factor) . Let’s dive deep into how the low and stable DK (2.6) and ultra-low DF of Taconic TLX-7 directly improve signal integrity.

Understanding the Loss: DK and DF in RF Circuits

To understand the "how," we must first understand the "what."

DK (Dielectric Constant orεr): This measures a material's ability to store electrical energy in an electric field. In practical PCB terms, it determines the speed at which an RF signal travels through the medium. A lower DK allows for faster signal propagation. More importantly, for RF design, the DK dictates the physical width of a trace required to achieve a specific characteristic impedance (usually 50Ωor 75Ω).

DF (Dissipation Factor or Loss Tangent): This measures the inherent inefficiency of the dielectric. It quantifies how much of the high-frequency AC signal is lost as heat within the board material. A lower DF means less energy is absorbed by the substrate, resulting in a stronger signal arriving at the destination.

The Taconic TLX-7 Advantage: A Closer Look at the Core

Our PCB stack-up is simple yet highly effective: Copper (35μm) /Taconic TLX-7 Core(0.762mm) / Copper (35μm) . While the stack-up is a standard 2-layer construction, the core is anything but standard.

Taconic TLX-7 Taconic PCB is a PTFE (polytetrafluoroethylene) based composite reinforced with woven fiberglass and filled with ceramic. This specific composition yields the exceptional properties listed in your product introduction. Here is how these properties translate to real-world signal integrity improvements:

1. Minimal Signal Attenuation with Ultra-Low DF

The most direct impact on signal integrity is loss. The dissipation factor (DF) of Taconic TLX-7 is exceptionally low. In RF engineering, total loss is a combination of conductor loss (copper roughness/skin effect) and dielectric loss (DF).

The Mechanism: As frequency increases, the electric field interacts more with the dielectric. In standard materials like FR-4, the DF can rise sharply with frequency, turning your signal into heat.

TLX-7 Impact: With its ultra-low DF, TLX-7 minimizes this dielectric absorption. For the applications listed—such as phased array antennas and microwave test equipment—this means lower insertion loss. The signal maintains its amplitude integrity across the 102mm length of the board, ensuring that the power reaching the antenna elements or the receiver is as intended by the design.

2. Stable Impedance Control with Low and Consistent DK

Impedance control is the backbone of RF signal integrity. Any deviation from the target impedance (e.g., 50Ω) causes reflections, which manifest as signal degradation and standing waves.

The Mechanism: Impedance is directly related to the DK of the material and the physical geometry of the trace. With a standard DK of 2.6, TLX-7 is considered a "low" DK material. This is advantageous because it allows for wider trace widths for a given impedance compared to higher DK materials. For your PCB specifications, which feature a minimum trace/space of 4/6 mils, designing 50Ωtraces on a 0.762mm thick core is highly feasible and manufacturable.

TLX-7 Impact: More importantly, the DK is "tightly controlled" and stable across frequency. Inconsistent DK leads to unpredictable impedance. By using TLX-7, we ensure that the impedance calculated during the design phase (using Gerber RS-274-X files) is the impedance you get on the physical board. This stability is critical for radar systems where phase consistency is paramount.

3. Reliable Performance in Variable Environments

Signal integrity isn't just about performance on the test bench; it's about performance in the field. RF PCBs often face temperature fluctuations and humidity.

The Mechanism: Standard materials can absorb moisture, which drastically changes the DK (water has a DK of ~80). Similarly, thermal expansion can warp the board and change the physical dimensions of the circuit.

TLX-7 Impact: TLX-7 boasts low moisture absorption and excellent thermal properties. The DK remains stable regardless of environmental conditions. For mobile communication systems and outdoor microwave transmission devices, this guarantees that the link budget calculated on a sunny day remains valid during a rainstorm. The UL 94 V-0 rating also ensures safety without compromising RF performance.

Manufacturing Precision: Bringing TLX-7 to Life

A great material is nothing without the precision to manufacture it. PTFE materials like TLX-7 are notoriously soft and require specialized handling compared to standard FR-4. This is where our expertise as your PCB supplier comes into play.

We combine the advanced material with precise fabrication techniques:

Controlled Impedance Etching: To achieve the 4/6 mil traces required for impedance control on TLX-7 high frequency PCB, we utilize precise etching processes. The finished 1oz copper weight (1.4 mils) on the outer layers is maintained with tight tolerances to control conductor loss.

Plated Through-Holes (PTH): The board features 29 vias and 32 thru-hole pads with a via plating thickness of 20μm. In RF designs, vias act as inductive elements. By maintaining a consistent plating thickness and a minimum hole size of 0.5mm, we ensure that the transition between Layer 1 and Layer 2 is as seamless as possible, minimizing parasitic inductance.

Surface Finish: The Immersion Gold finish provides a flat, corrosion-resistant surface ideal for soldering the 31 components (24 Top SMT Pads) while maintaining excellent surface conductivity for RF signals.

Quality Assurance: Every board undergoes a 100% Electrical Test prior to shipment. For RF boards, this often includes not just netlist continuity but also impedance testing (TDR) to validate that the signal integrity designed into the Gerber files is realized in the physical hardware.

Conclusion: The Perfect Match for Microwave Designs

For low-layer count microwave designs, the combination of a superior laminate like Taconic TLX-7 and precise manufacturing is non-negotiable. The low DK (2.6) allows for practical, manufacturable trace geometries, while the low DF ensures that your signal power is used for transmission, not wasted as heat.

Whether you are designing a sophisticated phased array antenna or a sensitive RF component, the material properties of TLX-7 provide the foundation for excellent signal integrity. AtBicheng, we are equipped to take your Gerber files and deliver a finished board that meets IPC-Class-2 standards, leveraging the full potential ofTaconic materials for your high-frequency success.

Looking to prototype your next RF design? Contact us today to discuss your TLX-7 requirements and experience the difference in signal integrity.
