Why Choose a Hybrid PCB Construction?

Benefits of Combining RO4350B and FR-4 in a 4-Layer Hybrid PCB.

In the world of advanced electronics, especially for RF, microwave, and high-speed digital applications, the choice of Printed Circuit Board (PCB) materials is a critical decision that directly impacts performance, reliability, and cost. A purely high-performance laminate like Rogers RO4350B offers superior electrical characteristics but at a premium.Standard FR-4 is cost-effective and robust but lacks the necessary performance for critical high-frequency circuits. This is where the intelligent hybrid construction—specifically combining a RO4350B core with FR-4 in a 4-layer PCB stack-up—emerges as the optimal engineering compromise. Here’s a detailed breakdown of the key benefits.

1. Optimal Cost-Performance Ratio (The Core Benefit)

This is the primary driver for choosing a hybrid design.

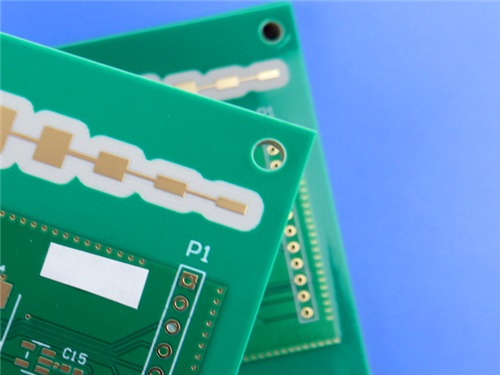

Targeted Performance: Instead of constructing the entire board from expensive high-frequency laminate, you use Rogers 4350B only where it matters most—for the critical signal layers carrying RF or high-speed signals. In our featured 4-layer stack-up, the outer layers (L1 & L4) are built on the 0.508mm RO4350B core, ensuring minimal signal loss and stable impedance for your most sensitive traces.

Cost Containment: The inner layers (L2 & L3), typically used as solid ground and power planes, are fabricated using reliable, industry-standard TG170 FR-4. FR-4 is significantly less expensive than specialized RF laminates and is perfectly suited for this purpose, providing excellent electrical isolation and structural rigidity without compromising the board's function. This strategic partitioning can reduce overall material costs by 20-40% compared to an all-RO4350B board.

2. Superior Electrical Performance Where It Counts

The hybrid PCB design directly leverages the standout electrical properties of RO4350B for signal integrity:

Low and Stable Dielectric Constant (Dk=3.48±0.05): This ensures predictable impedance control (e.g., 50-ohm transmission lines) on your RF paths, reducing signal reflection and mismatch.

Extremely Low Dissipation Factor (Df=0.0037): This minimizes dielectric loss at high frequencies (e.g., 10 GHz and beyond), preserving signal strength and integrity for applications like cellular antennas, automotive radar, and satellite LNBs. The FR-4 inner layers, not carrying high-speed signals, do not detrimentally affect this performance.

3. Enhanced Thermal Management and Mechanical Stability

The combination of materials addresses both thermal expansion and reliability concerns.

Matched CTE to Copper: RO4350B has a Coefficient of Thermal Expansion (CTE) closely matched to copper. This excellent dimensional stability is crucial in a hybrid structure, preventing stress, delamination, and via failure at the material interface during thermal cycles.

High Tg (>280°C) and Low Z-Axis CTE: RO4350B's high glass transition temperature and low expansion through the board's thickness ensure that plated through-holes (PTHs—your 125 vias) remain reliable even under severe thermal shock, a common requirement in automotive and outdoor infrastructure applications.

4. Simplified Manufacturing and FR-4 Process Compatibility

Unlike pure PTFE-based microwave materials, RO4350B is designed for ease of fabrication.

Seamless Integration: RO4350B processes like FR-4. It uses standard drilling, desmear, and plating techniques. This means your hybrid board can be manufactured on standard PCB production lines without the need for special processes, exotic chemistries, or costly handling procedures required for PTFE.

Predictable Yield and Lead Time: This common processability streamlines production, leading to higher manufacturing yields, faster turnaround times, and reduced fabrication risk and cost. It simplifies the lamination process when bonding the RO4350B core to the FR-4 prepreg and core.

5. Structural Rigidity and Design Versatility

The hybrid circuit board stack-up creates a robust, versatile platform.

FR-4 Provides Robust Backbone: FR-4 offers excellent mechanical strength, making the final 0.98mm thick board durable and resistant to warpage. This is important for larger boards or those used in high-vibration environments.

Ideal for Multi-Function Designs: This construction is perfect for modern modules that combine RF front-ends with digital control and power sections. You can route sensitive RF lines on the RO4350B-based outer layers while using the inner FR-4 layers for power distribution, digital grounding, and lower-speed signaling—all in one compact, reliable package.

Conclusion: Who Should Choose This Hybrid Construction?

The 4-layer hybrid PCB with RO4350B and FR-4 is not a one-size-fits-all solution, but it is the engineer's smart choice for specific, high-value applications:

When your design has defined critical signal paths (e.g., antenna feeds, filter networks, RF transceivers) alongside supporting digital logic.

When system cost is a constraint, but performance on key circuits cannot be compromised.

When reliability under thermal stress is required (e.g., automotive, telecom outdoors).

When you need the electrical performance of a high-end laminate but with the supply chain simplicity and proven manufacturability of FR-4.

In essence, choosing this hybrid RO4350B FR4 4-layer PCB construction is a strategic decision to allocate your budget precisely where it delivers the highest return: unparalleled electrical performance for critical circuits, without over-engineering and over-spending on the entire board. It represents the optimal balance between the cutting-edge capabilities of advanced materials and the pragmatic economics of volume electronics manufacturing.
