Why Choose RO3206 Ceramic-Filled Laminates for Superior Signal Integrity and Thermal Management?

In the rapidly advancing world of high-frequency electronics, the demand for reliable and high-performance printed circuit boards (PCBs) is greater than ever. Among the leading materials engineered to meet these stringent requirements is Rogers RO3206, a high-frequency circuit laminate renowned for its exceptional electrical and mechanical properties. Designed as an evolution of the acclaimed RO3000 series laminate, RO3206 incorporates ceramic fillers and woven fiberglass reinforcement, offering an optimal balance of performance, durability, and cost-effectiveness.

Superior Electrical and Thermal Properties

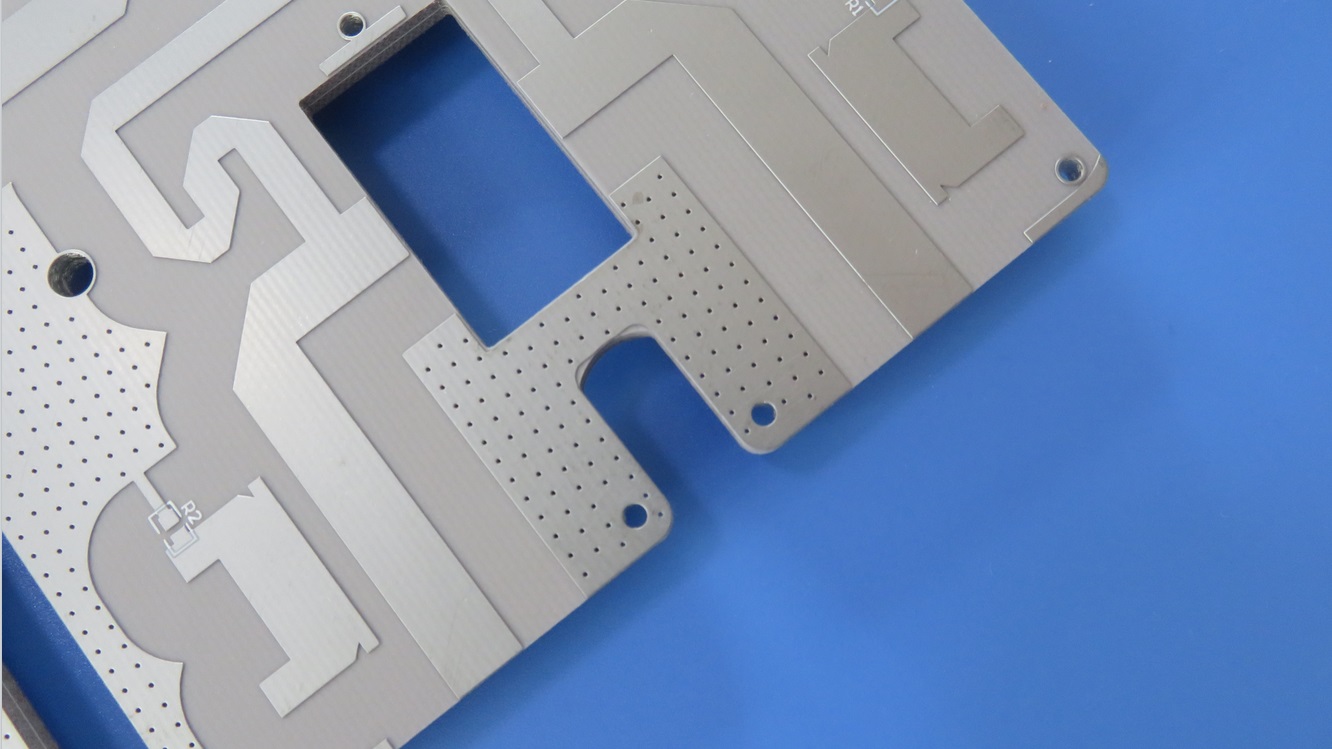

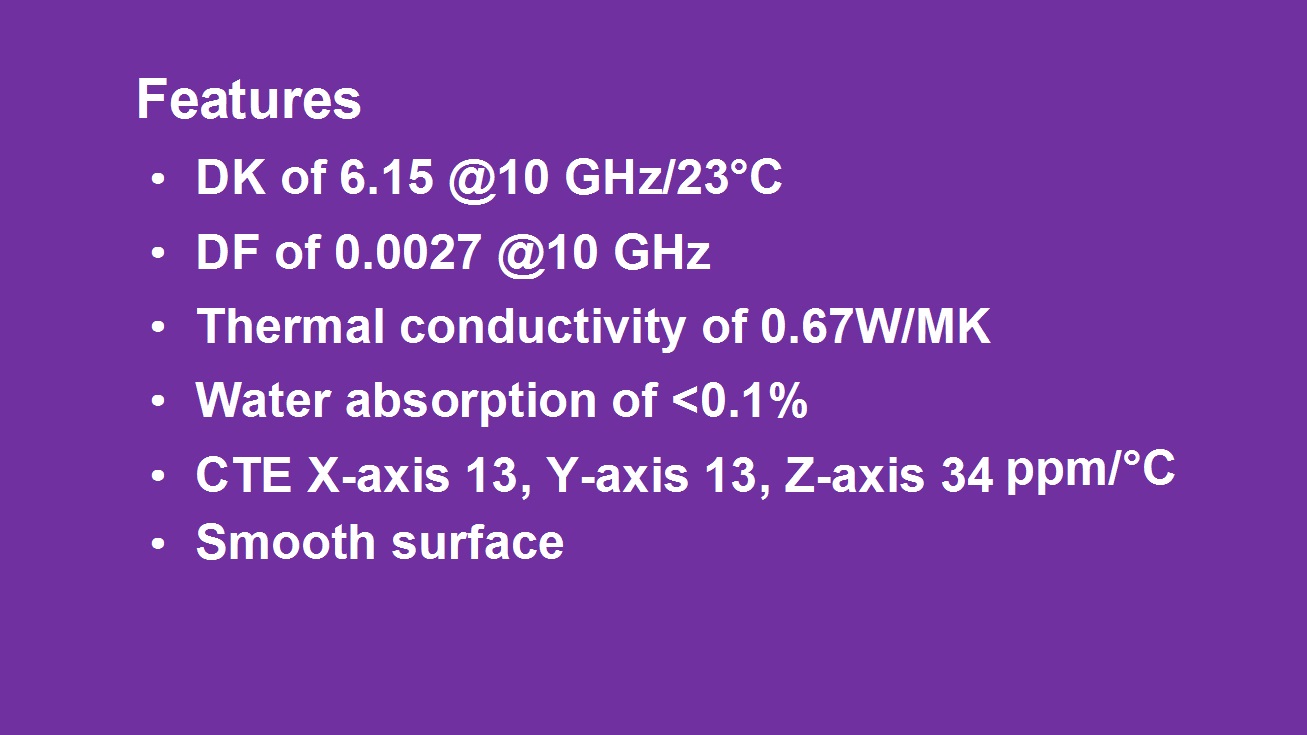

RO3206 high frequency PCBs are characterized by a stable dielectric constant of 6.15 with tight tolerance, measured at 10 GHz and 23°C. This consistency ensures minimal signal deviation, making it an excellent choice for high-speed and RF applications. Moreover, the material boasts an impressively low dissipation factor of 0.0027 at 10 GHz, which significantly reduces signal loss and enhances overall signal integrity.

Another standout feature is its high thermal conductivity, rated at 0.67 W/m·K. This allows for efficient heat dissipation, critical in power-intensive applications where thermal management is essential to maintain performance and longevity. Additionally, Rogers 3206 exhibits low moisture absorption of less than 0.1%, ensuring reliability even in humid environments. Its copper CTE (coefficient of thermal expansion) is well-matched across all three axes (13, 13, and 34 ppm/°C), providing dimensional stability and reducing the risk of delamination in complex multilayer assemblies.

Enhanced Mechanical Stability and Manufacturing Ease

The inclusion of woven glass reinforcement not only improves mechanical rigidity but also simplifies handling during the fabrication process. This structural integrity makes RO3206 PCB  particularly suitable for intricate and high-layer-count PCBs. The material’s smooth surface finish further allows for precise fine-line etching, supporting the trend toward miniaturization and high-density interconnects.

Comprehensive PCB Capabilities with RO3206

We offer extensive manufacturing flexibility to accommodate diverse design requirements using RO3206 laminates. Our capabilities include:

1) Layer Options: From Single Sided and Double Sided to Multi-layer and Hybrid PCB constructions.

2) Copper Weight: Available in 1oz (35µm) and 2oz (70µm) to suit various current-carrying and thermal needs.

3) Dielectric Thickness: Options include 25mil (0.635mm) and 50mil (1.27mm), providing designers with critical impedance control and flexibility.

4) Maximum Board Size: We support designs up to 400mm x 500mm.

5) Solder Mask Colors: A variety of options including Green, Black, Blue, Yellow, Red, and more.

6) Surface Finishes: Comprehensive choices such as Immersion Gold (ENIG), HASL, Immersion Silver, Immersion Tin, ENEPIG, OSP, Bare Copper, and Pure Gold Plated.

Wide-Ranging Applications

RO3206 Rogers PCBs are utilized across numerous high-tech industries, including automotive GPS antennas, base station infrastructure, direct broadcast satellites, cable data links, and microstrip patch antennas. Their reliable performance under high-frequency and thermal stress makes them ideal for next-generation communication systems, radar applications, and aerospace technology.

Conclusion

RO3206 high-frequency PCB materials represent a robust solution for modern electronic designs that demand high speed, thermal resilience, and mechanical durability. With superior electrical properties, versatile manufacturing options, and broad applicability, RO3206 is an excellent choice for engineers and designers aiming to push the boundaries of performance and innovation.
