Why is RO4830 the Ideal Thermoset Material for 76-81 GHz Automotive Radar Sensors?

In the rapidly advancing field of high-frequency electronics, particularly in automotive safety systems like radar, selecting the right printed circuit board (PCB) material is paramount to performance, reliability, and cost-effectiveness. While traditional PTFE-based laminates have long been the go-to for high-frequency applications, designers and engineers are increasingly seeking robust alternatives that offer easier manufacturability. Enter Rogers RO4830 high-frequency laminate, a thermoset material engineered to meet these exacting demands. This article provides a comprehensive overview of the RO4830 material, its standout properties, our fabrication capabilities, and its primary applications, positioning it as a superior choice for your next high-frequency project.

RO4830: A High-Performance, Thermoset Alternative

Rogers 4830 laminates represent a significant innovation in high-frequency circuit materials. As a thermoset composite, they provide a dependable and highly cost-effective substitute for conventional PTFE (Polytetrafluoroethylene) based laminates. One of the most compelling advantages of RO4830 is its compatibility with standard epoxy/FR-4 multi-layer board manufacturing processes. This compatibility eliminates the need for specialized equipment or complex procedures often associated with PTFE, thereby streamlining production, reducing lead times, and ultimately lowering overall costs. This characteristic makes RO4830 particularly suitable for millimeter-wave applications where cost-efficiency is critical without compromising on electrical performance.

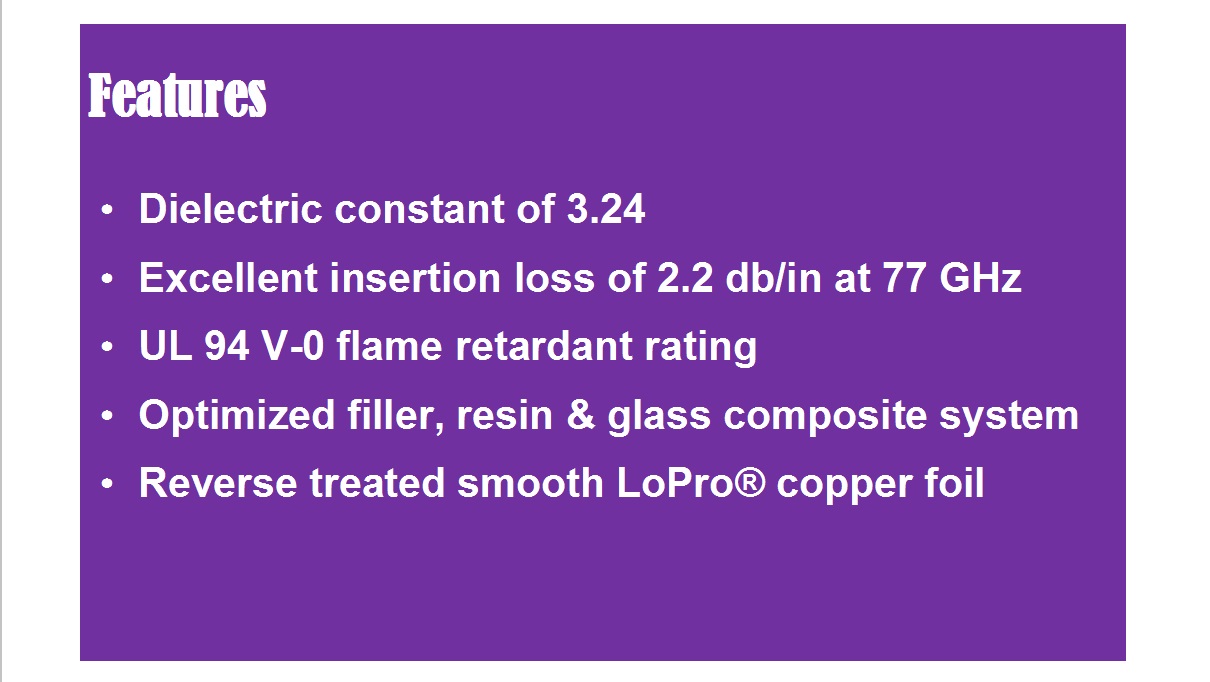

Key Features and Electrical Performance

The exceptional performance of RO4830 substrate is driven by a carefully optimized set of material properties:

1) Stable Dielectric Constant (Dk): RO4830 boasts a dielectric constant of 3.24. This stable Dk is crucial for maintaining consistent impedance control across the circuit, which is essential for signal integrity in high-frequency designs.

2) Exceptionally Low Insertion Loss: Signal loss is a primary concern at high frequencies. RO4830 exhibits impressively low insertion loss, measured at just 2.2 dB per inch for a 5mil (0.127mm) thickness. This value is further reduced to an exceptional 1.8 dB per inch for a 9.4mil (0.239mm) thickness at 77 GHz. This minimal loss ensures that signals remain strong and clear, leading to reliable and accurate data transmission even in demanding applications like automotive radar.

3) Optimized Material System:The laminate features an optimized composite system of filler, resin, and glass, which contributes to its stable electrical and mechanical properties. Furthermore, it holds a UL 94 V-0 flame retardant rating, ensuring safety and compliance with industry standards.

4) Enhanced Signal Quality with LoPro® Copper: To further improve electrical performance, RO4830 utilizes reverse-treated smooth LoPro® copper foil. This specialized foil reduces signal loss caused by skin effect at high frequencies and contributes to more efficient, consistent, and predictable electrical performance across the board.

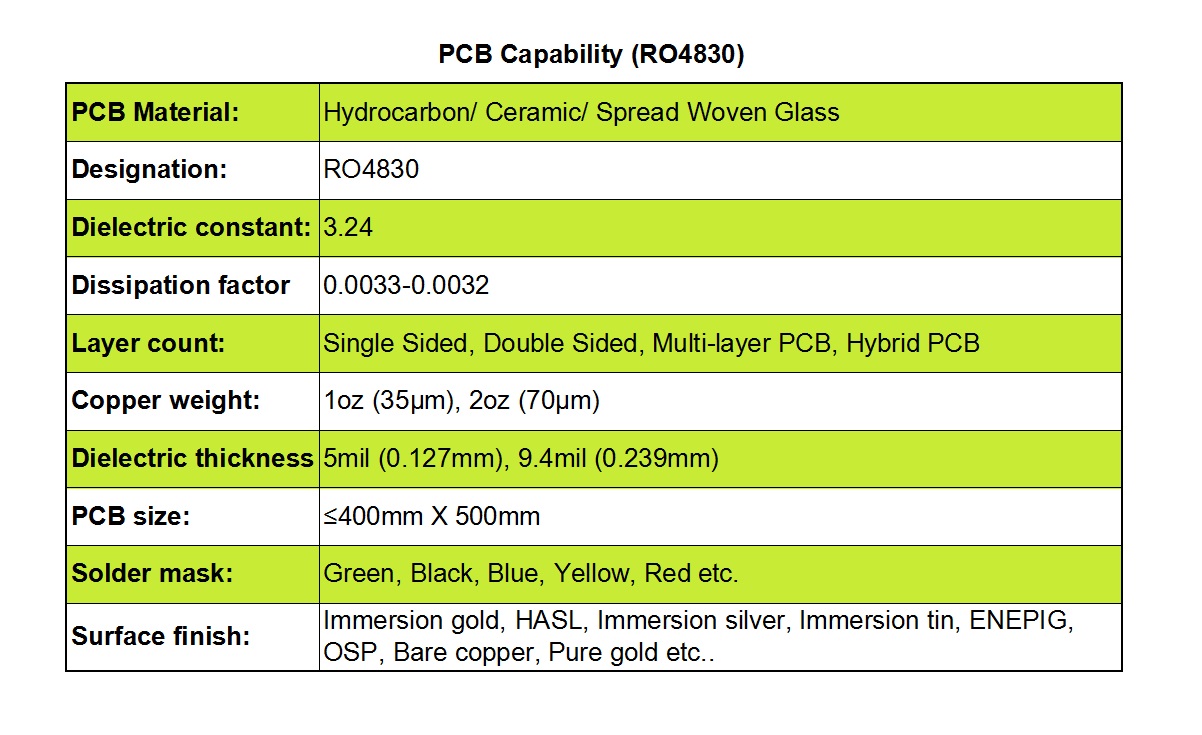

Our PCB Fabrication Capabilities with RO4830

As your trusted PCB supplier, we leverage the excellent processability of RO4830 to deliver high-quality boards tailored to your specifications. Our manufacturing capabilities are designed to offer maximum flexibility:

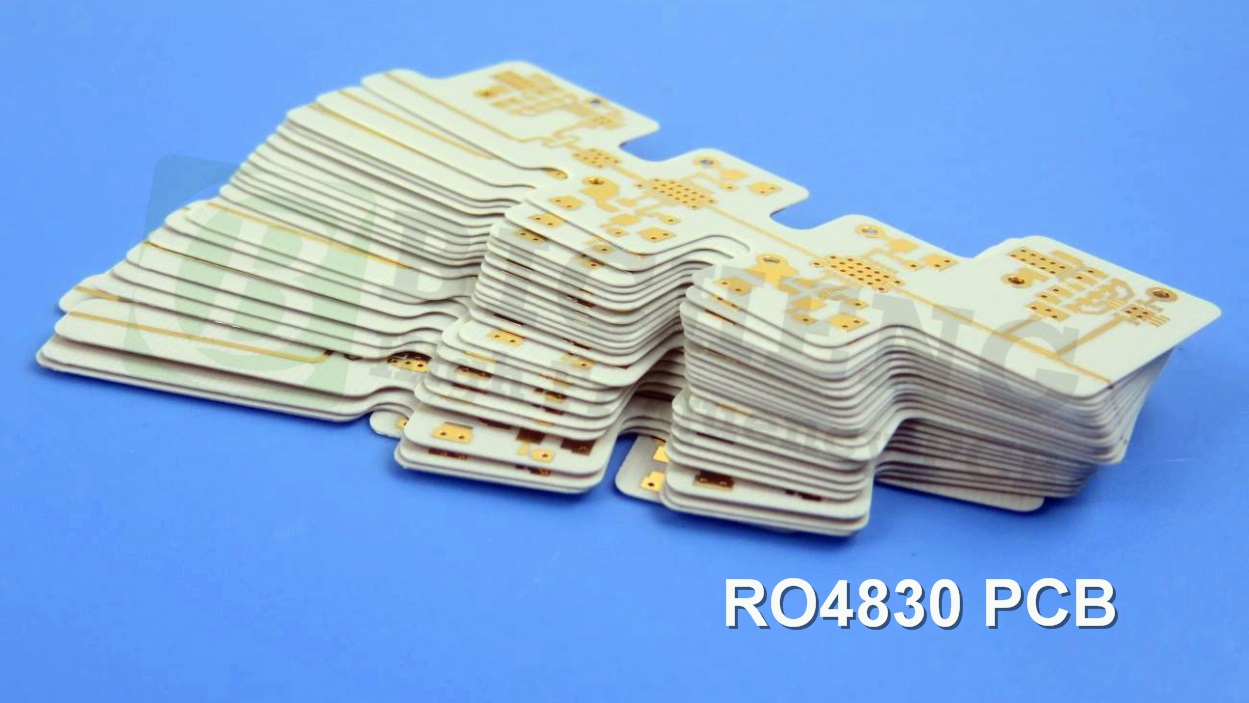

1) Board Configurations: We can fabricate RO4830 PCBs as single-sided, double-sided, or complex multi-layer boards. We also specialize in creating hybrid constructions where RO4830 is used as a cap layer on top of standard FR-4 cores, a common and cost-effective design for 76-81 GHz automotive radar sensors.

2) Dielectric Thickness: We offer RO4830 laminates in the two standard thicknesses: 5mil (0.127mm) and 9.4mil (0.239mm).

3) Copper Weight: Choose from 1oz (35µm) or 2oz (70µm) copper weights to suit your current-carrying and thermal management needs.

4) Board Dimensions & Aesthetics: We can accommodate panel sizes up to 400mm x 500mm. You have the freedom to select from a variety of solder mask colors, including green, black, blue, yellow, red, and more.

5) Surface Finishes: A wide range of surface finish options is available to meet your assembly and reliability requirements. These include Immersion Gold (ENIG), Hot Air Solder Leveling (HASL), Immersion Silver, Immersion Tin, ENEPIG, OSP, Bare Copper, and Pure Gold.

Primary Applications: Powering Automotive Radar and Beyond

The combination of electrical performance and manufacturability makes RO4830 laminates ideally intended for high-frequency applications where precision is non-negotiable. The primary application is in the automotive industry, specifically for 76-81 GHz automotive radar sensors and antennas. These sensors are the eyes of advanced driver-assistance systems (ADAS), enabling features like adaptive cruise control, blind-spot detection, and collision avoidance. The material's low loss and stable Dk at these extreme frequencies are critical for the accuracy and reliability of these safety-critical systems.

Conclusion

RO4830 high frequency PCB successfully bridges the gap between the high performance of specialized materials and the practical, cost-effective realities of volume PCB manufacturing. Its excellent electrical properties, coupled with seamless integration into standard FR-4 production lines, make it an intelligent choice for engineers designing next-generation millimeter-wave devices. If you are developing applications for the automotive radar market or any other high-frequency field, partnering with us ensures you have access to expert fabrication services for your RO4830 PCBs.

Contact us today to discuss how we can support your high frequency PCB requirements with RO4830 laminates.
