How Can CLTE-XT Laminates with Ultra-Low Loss and CTE Enhance Your Circuit Performance?

In the rapidly advancing world of electronics, particularly within the realms of RF, microwave, and millimeter-wave technologies, the choice of printed circuit board (PCB) substrate is paramount. It directly influences signal integrity, power efficiency, and overall system reliability. For engineers and designers pushing the boundaries of performance, Rogers CLTE-XT high-frequency PCBs emerge as a premier material solution, expertly balancing exceptional electrical properties with outstanding mechanical stability.

Introduction to CLTE-XT Laminates: A Superior Dielectric Composite

Rogers Corporation engineered CLTE-XT laminates to address the critical challenges faced in high-frequency circuit design. This advanced material is a sophisticated composite system comprising a PTFE (Polytetrafluoroethylene) base, reinforced with woven fiberglass and a micro-dispersed ceramic filler. This unique formulation is pivotal in achieving an improved, ultra-low loss tangent while simultaneously ensuring excellent dimensional stability—a combination that is often difficult to attain. A standout characteristic of Rogers CLTE-XT laminates is their exceptionally low coefficient of thermal expansion (CTE) in the X-Y, or planar, direction. This minimal expansion and contraction with temperature fluctuations make these laminates exceptionally well-suited for precision applications, such as those incorporating sensitive embedded passive components like resistors, where positional accuracy is non-negotiable.

Furthermore, within the competitive landscape of PTFE-based dielectric materials, the CLTE-XT PCB product line demonstrates remarkably consistent performance with minimal variance, providing designers with a reliable and predictable foundation for their most ambitious projects. To accommodate a wide spectrum of design requirements, CLTE-XT supports an extensive selection of metal cladding options. These range from standard electrodeposited copper and specialized reverse-treated foils for enhanced bond strength to high-performance rolled copper variants ideal for critical RF transmission lines, along with other specialty conductor materials.

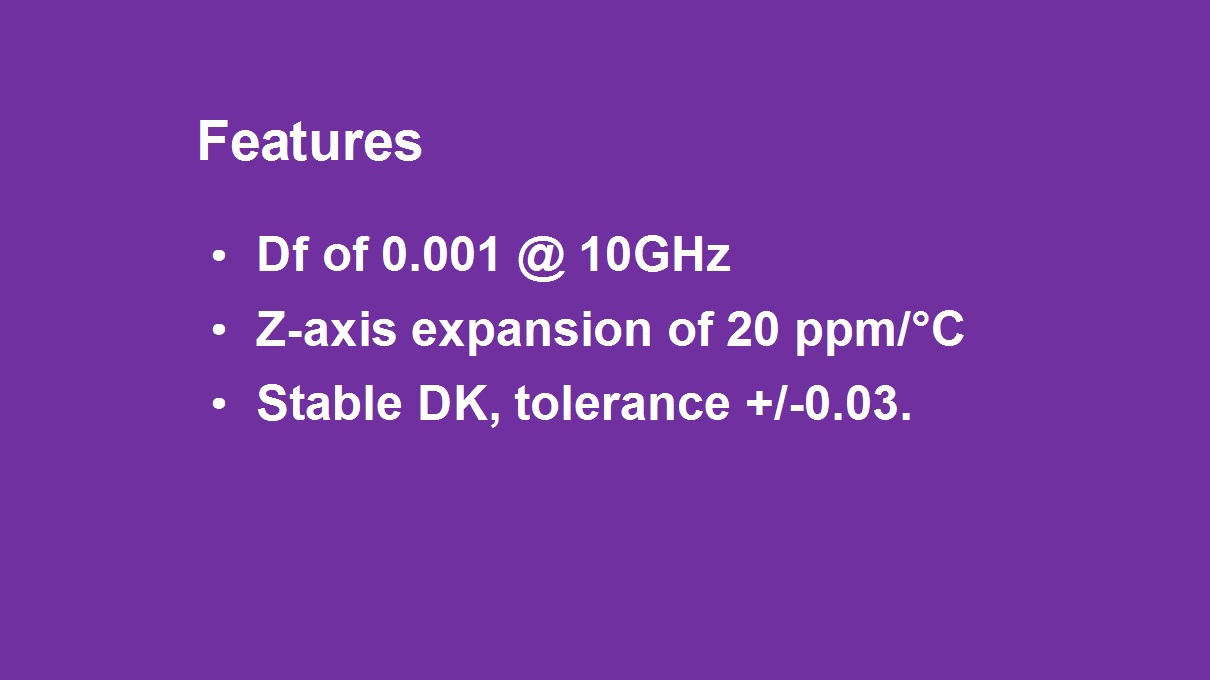

Distinguishing Features: Unpacking the Performance Advantages

The exceptional performance of Rogers CLTE-XT PCBs is anchored in several key features that collectively set them apart from conventional high-frequency materials.

1) Ultra-Low Dissipation Factor for Minimal Signal Loss: The most significant feature is its ultra-low dissipation factor (Df), measured at an impressively low 0.0010 at an operating frequency of 10 GHz. This property is directly correlated to signal loss; a lower Df translates to significantly reduced dielectric losses, enabling signals to travel further and with greater fidelity. This is crucial for maintaining signal strength and integrity in high-speed digital and high-frequency analog circuits, all while the material maintains its inherent dimensional stability.

2) Exceptional Z-Axis CTE for Unmatched Reliability: Beyond planar stability, the material's Z-axis (through-thickness) thermal expansion characteristics are equally commendable. With a CTE of 20 ppm/°C, CLTE-XT ensures exceptional reliability for plated through-hole (PTH) structures. This low Z-axis CTE closely matches that of copper, minimizing stress on the copper barrels during thermal cycling—a common cause of failure in demanding environments—thereby dramatically enhancing the long-term durability of the PCB.

3) Stable Dielectric Constant Across Temperature: Maintaining consistent electrical performance under varying operational temperatures is a critical requirement. CLTE-XT laminates exhibit a highly stable dielectric constant (Dk) over a broad temperature range, with an exceptionally tight tolerance of just±0.03. This stability ensures minimal signal distortion and provides optimal impedance control, granting a critical performance edge in sensitive RF applications where even minor deviations can degrade system functionality.

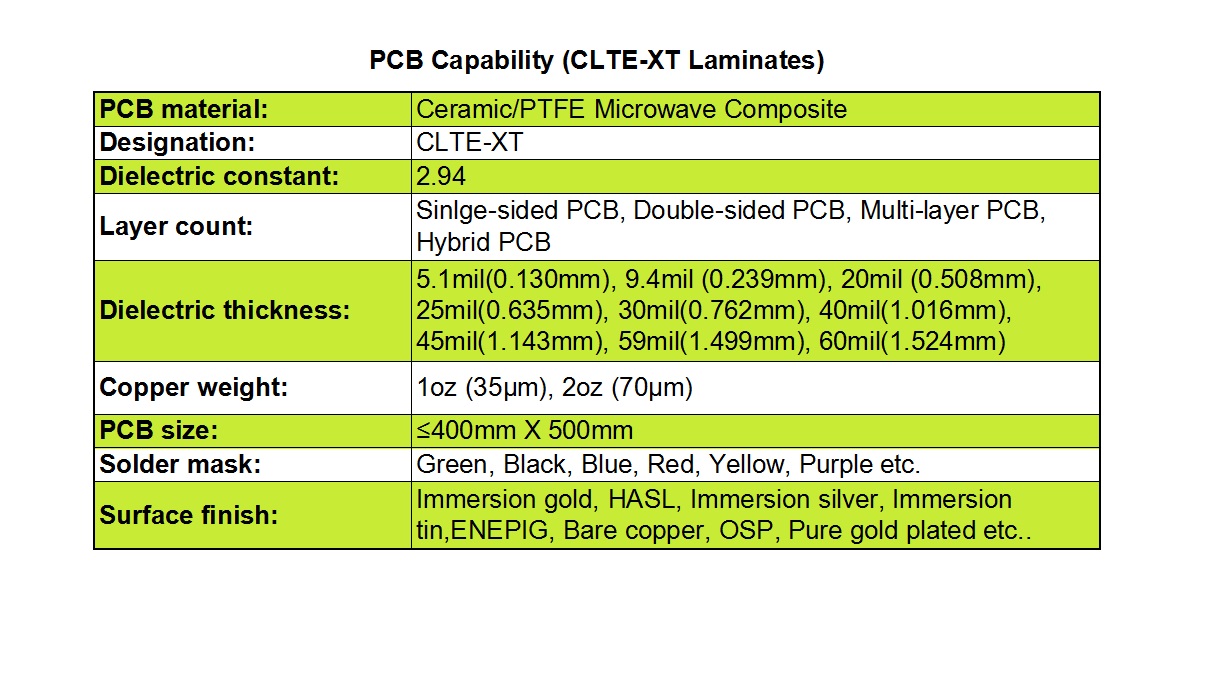

Advanced PCB Manufacturing Capabilities for CLTE-XT

Possessing a superior material is only half the equation; precision manufacturing is essential to fully realize its potential. Our manufacturing facility is equipped with advanced processes specifically tailored for handling high-performance materials like CLTE-XT. We support a comprehensive range of board constructions, from simple single-sided and double-sided boards to complex conventional multilayer and advanced hybrid architectures that combine different materials.

Designers can select from an extensive range of dielectric thicknesses, spanning from 0.130mm (5.1 mil) to 1.524mm (60 mil), to meet precise impedance control targets. Standard copper weights of 1 oz (35µm) and 2 oz (70µm) are readily available. Our production panels can accommodate sizes up to 400mm x 500mm, suitable for a single large board or multiple smaller designs in a single panel for efficient production.

To cater to both functional and aesthetic needs, we offer multiple solder mask color alternatives, including green, black, blue, red, yellow, and purple. The available surface finish selections encompass the full spectrum of industry-standard options, such as Immersion Gold (ENIG), Hot Air Solder Leveling (HASL), Immersion Silver, Immersion Tin, ENEPIG, bare copper, OSP, and specialized pure gold.

Typical Applications: Powering Cutting-Edge Technologies

The unique property set of CLTE-XT Rogers PCBs has led to their extensive adoption in some of the most technologically advanced fields. They are a preferred choice for:

1) Advanced Driver Assistance Systems (ADAS) and automotive radar sensors, where reliability and signal accuracy are critical for safety.

2) Microwave patch antennas and phased-array radar antenna systems, which demand low loss and stable electrical performance for precise beamforming and targeting.

3) High-power RF amplifier circuits, where efficient thermal management and minimal signal loss are paramount.

In conclusion, CLTE-XT High Frequency PCBs represent a top-tier material solution, offering an optimal synergy of ultra-low loss, exceptional thermal stability, and manufacturing versatility. For projects where performance, reliability, and signal integrity cannot be compromised, CLTE-XT provides the technological foundation necessary for success.
