Why is TLX-9 the Preferred High-Frequency Laminate for Demanding Aerospace and Telecom Systems?

In the rapidly advancing world of high-frequency electronics, the choice of printed circuit board (PCB) material is critical to the performance, reliability, and efficiency of the end product. Taconic’s TLX-9 high-frequency PCB material stands at the forefront of this innovation, offering an exceptional blend of electrical, mechanical, and thermal characteristics tailored for demanding applications. This article delves into the core attributes, capabilities, and uses of TLX-9, illustrating why it is a top-tier choice for engineers and designers in industries where precision and performance are non-negotiable.

An Introduction to TLX-9 High Frequency Material

TLX-9 is a premium-gradehigh-frequency laminate constructed from a polytetrafluoroethylene (PTFE) base reinforced with woven fiberglass. This sophisticated composite represents a significant achievement in copper-clad PTFE technology, merging outstanding high-frequency electrical properties with excellent mechanical durability. It is manufactured under strict controls to ensure consistent performance, making it ideal for applications where signal integrity and operational stability are paramount.

Moreover, Taconic TLX-9 complies with the UL 94 V-0 flammability standard, enhancing its suitability for safety-sensitive environments. The material is also compatible with standard PCB fabrication processes—including shearing, drilling, milling, and plating—enabling straightforward integration into existing production workflows without the need for specialized equipment or techniques.

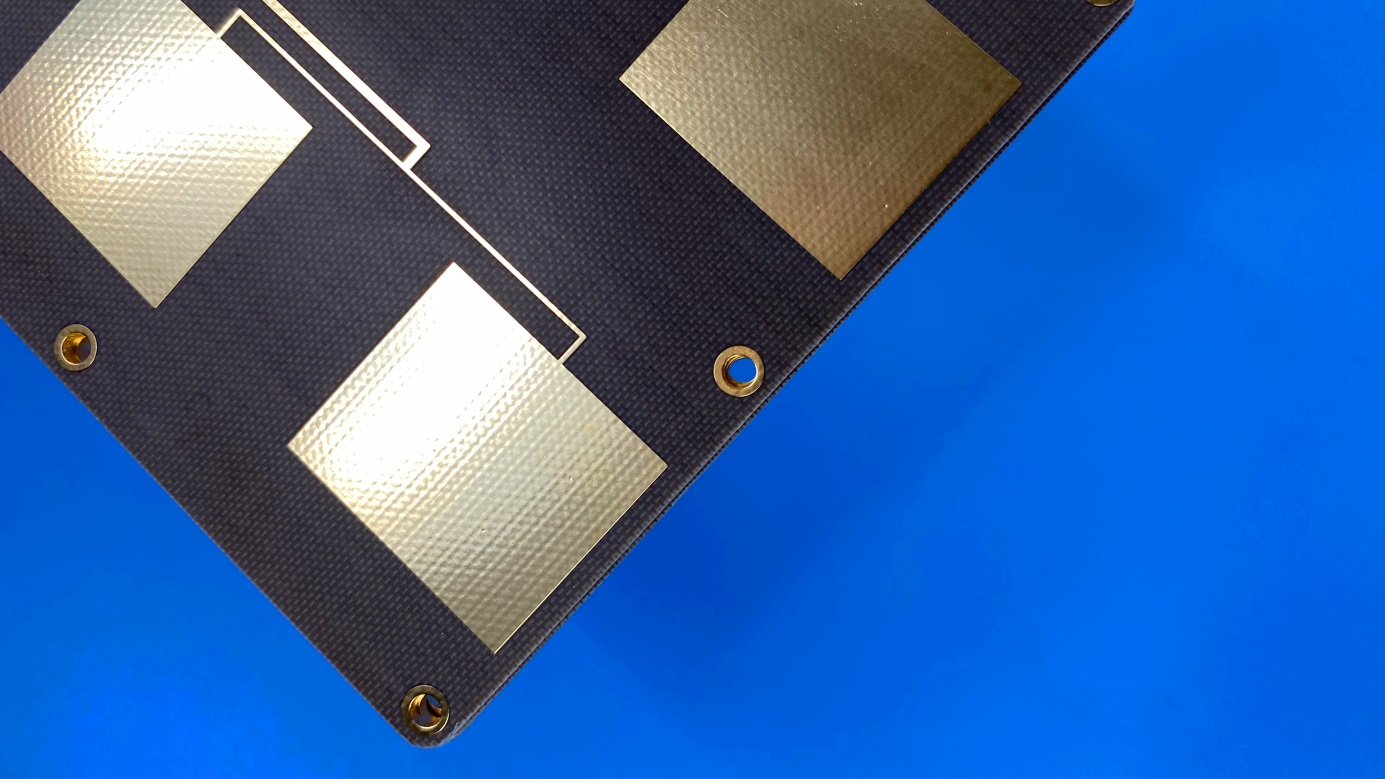

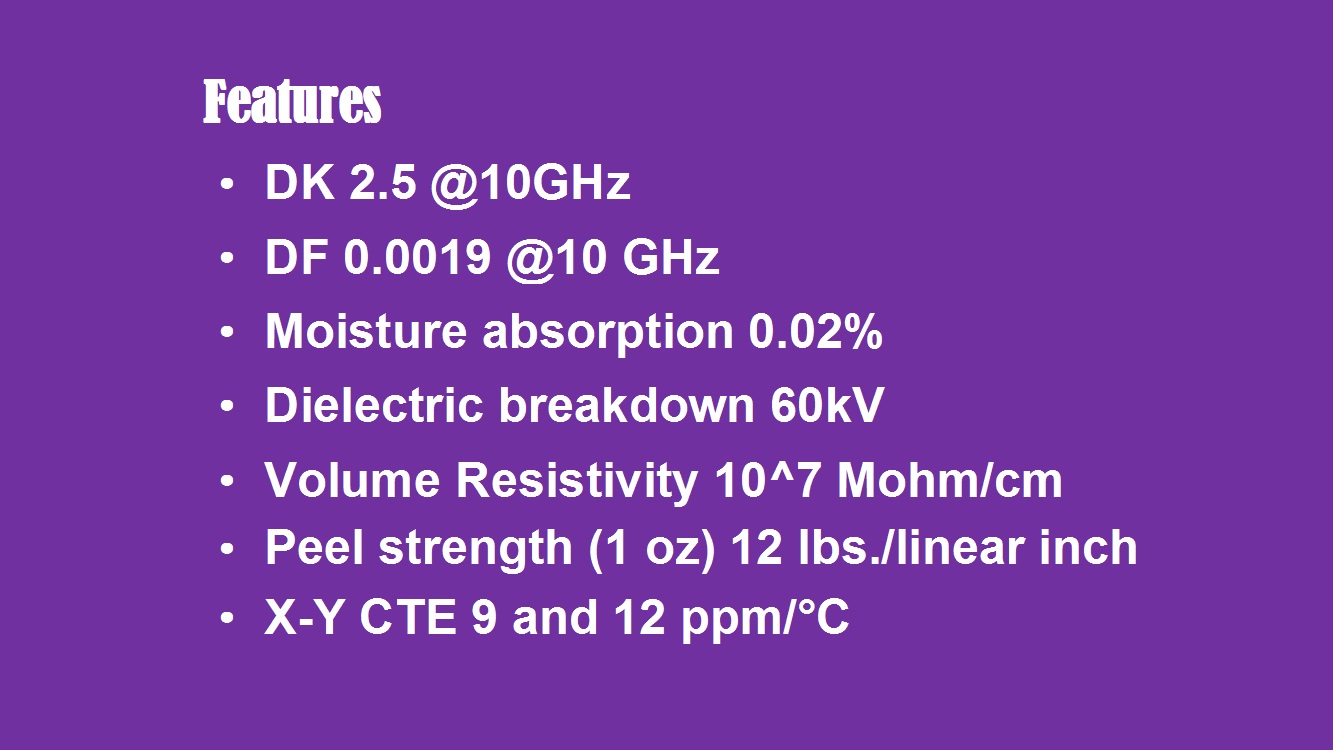

Key Features and Technical Specifications

The superior performance of TLX-9 PCB stems from its carefully engineered properties:

1) Dielectric Constant (Dk): At 10 GHz, the dielectric constant is 2.50, offering exceptional signal stability and reduced propagation delay, which is crucial for high-speed and high-frequency circuit operation.

2) Dissipation Factor (Df): With an ultra-low dissipation factor of 0.0019 at 10 GHz, TLX-9 minimizes signal loss, thereby enhancing the efficiency of power transmission and preserving signal clarity in RF and microwave applications.

3) Moisture Absorption: Boasting a moisture absorption rate of less than 0.02%, TLX-9 maintains consistent performance even under high-humidity conditions, ensuring long-term reliability and reducing the risk of degradation.

4) Dielectric Strength: The material offers a dielectric breakdown strength exceeding 60 kV, making it highly suitable for high-power and high-voltage applications such as radar systems and microwave amplifiers.

5) Resistivity: TLX-9 exhibits high volume and surface resistivity, both rated at 10⁷MΩ/cm and MΩrespectively, providing superior insulation resistance and minimizing current leakage.

6) Peel Strength: The laminate demonstrates strong bond integrity, with a peel strength of 12.0 lbs per linear inch for 1 oz copper, ensuring that copper layers remain securely attached throughout the assembly process and product lifecycle.

7) Thermal Expansion: The coefficient of thermal expansion (CTE) is tightly controlled, with X-Y CTE values of 9–12 ppm/°C and Z-axis CTE ranging from 130–145 ppm/°C. This dimensional stability across temperatures prevents deformation and supports the structural integrity of multilayer and high-density designs.

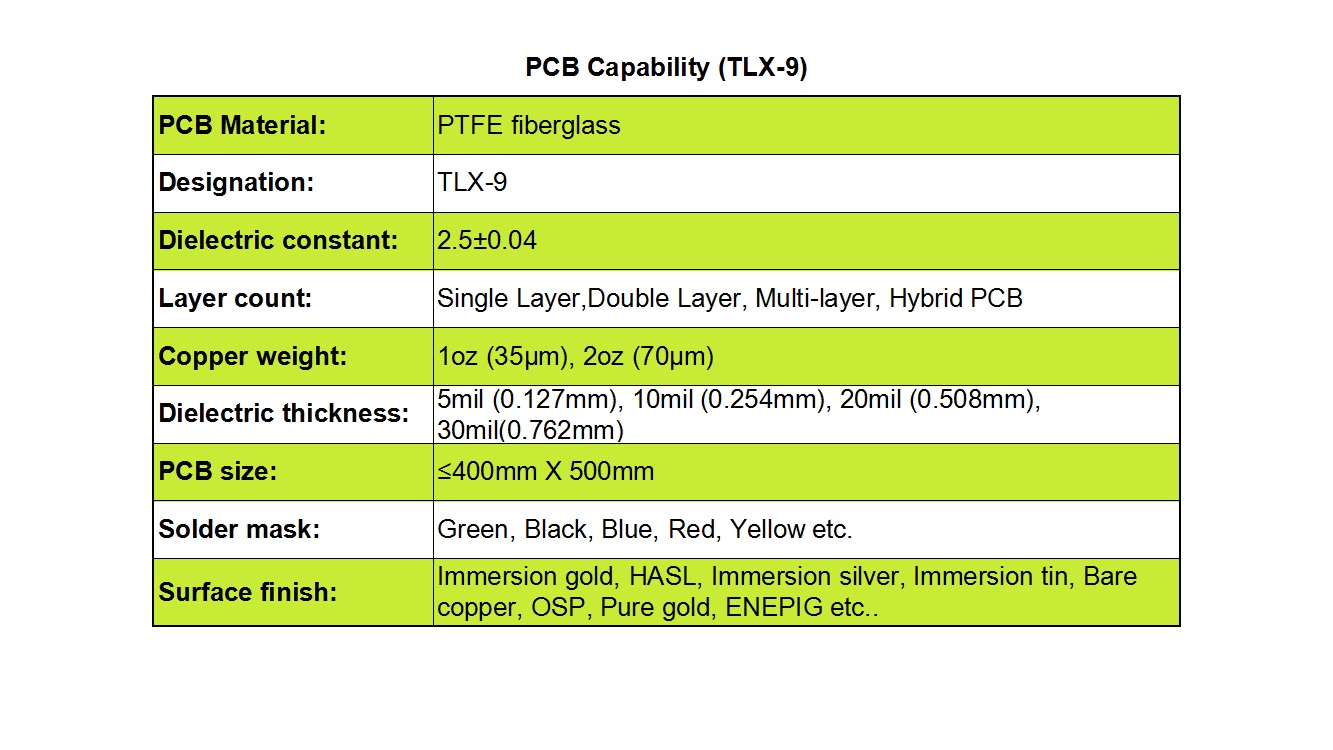

PCB Fabrication Capabilities with TLX-9

TLX-9 substrate supports a wide range of PCB configurations, including single-sided, double-sided, multilayer, and hybrid constructions. Available in thicknesses of 5, 10, 20, and 30 mils, it provides flexibility for various design requirements. The finished copper weight can be specified as 1 oz or 2 oz, supporting both fine-line tracing and higher current carrying capacity.

The maximum panel size available is 400 mm x 500 mm, accommodating both large-format boards and multi-design panelization. A variety of solder mask colors are offered, including green, black, blue, red, and yellow. Surface finish options include immersion gold (ENIG), hot air solder leveling (HASL), immersion silver, immersion tin, bare copper, OSP, electroplated gold, and ENEPIG, providing ample choices based on application needs and assembly conditions.

Typical Applications

TLX-9 Taconic RF PCBs are widely used in advanced electronic systems where high reliability and signal fidelity are essential. Common applications include:

• Low Noise Amplifiers (LNA)
• Low Noise Block Converters (LNB)
• Low Noise Converters (LNC)
• Large-format antenna systems for Personal Communication Services (PCS) and Personal Communication Networks (PCN)
• High Power Amplifiers

These applications benefit from the material’s stable electrical properties, low loss characteristics, and robust construction, making TLX-9 Taconic High Frequency PCB a preferred substrate in aerospace, military, telecommunications, and other high-performance sectors.

Conclusion

TLX-9 Taconic RF PCB Circuit Board combines cutting-edge material science with practical manufacturability, offering a reliable solution for the most challenging high-frequency designs. Its balanced performance across electrical, thermal, and mechanical domains ensures that it meets the rigorous demands of modern RF and microwave applications. Whether for consumer communication devices or mission-critical aerospace systems, TLX-9Taconic PCB Substrate delivers consistent quality and superior performance, establishing itself as a material of choice among engineers and designers worldwide.
