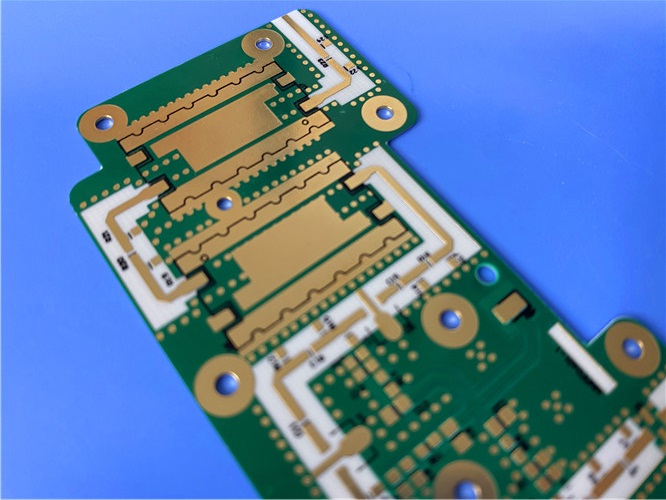

Rogers CLTE-AT PCB Double Sided 5mil Immersion Gold Green Solder Mask Black Silkscreen

Rogers CLTE-AT PCB Double Sided 5mil ImmersionGold Green Solder Mask Black Silkscreen

In the rapidly evolving world of high-frequency electronics, where signal integrity, phase stability, and thermal management are non-negotiable, the substrate material is the foundation of success. We are proud to introduce our premier double-sided PCB fabricated on Rogers Corporation’s CLTE-AT laminate. This isn't just a circuit board; it's a meticulously engineered component designed for applications where ordinary FR-4 materials fail. Engineered for excellence in automotive radar, RF filters, and phase-sensitive systems, this Rogers CLTE-AT PCB delivers "Best-in-Class" electrical performance, exceptional dimensional stability, and reliable thermal characteristics in a robust, production-ready package.

PCB Construction Details

The following table details the precise physical and manufacturing specifications of the 5mil CLTE-AT PCB, showcasing its high-precision fabrication capabilities.

PCB Stackup

This table illustrates the simple yet effective 2-layer stackup, designed for optimal signal integrity and mechanical stability with a thin, high-performance core.

PCB Statistics

This summary of design elements provides a quick overview of the board's complexity and component density.

Why CLTE-AT™is in a League of Its Own:

This PCB leverages the commercial-grade excellence of Rogers CLTE-AT laminate, a micro-dispersed ceramic PTFE composite with woven fiberglass reinforcement. This specific formulation strikes the optimal balance between premium performance and cost-effectiveness for high-volume, demanding applications. With a stable dielectric constant (Dk) of 3.00±0.04 and an ultra-low loss tangent (Df) of 0.0013, it ensures minimal signal attenuation and superior insertion loss (S21) figures, second only to its premium sibling, CLTE-XT™.

The CLTE-AT material's woven glass construction provides unparalleled dimensional stability, which is absolutely critical for maintaining registration in multilayer designs and for the fine 4/6 mil trace/space geometry on this board. Its extremely low coefficient of thermal expansion (CTE: 8, 8, 20 ppm/°C in X, Y, Z) guarantees electrical phase stability and mechanical reliability over a wide operating temperature range (-55°C to 150°C). Furthermore, its high thermal conductivity (0.64 W/m/K) and inherent flame retardancy (UL 94-V0) make it a robust and reliable choice for power-handling and automotive environments.

Key Features & Direct Benefits for Your Design:

• Superior High-Fidelity Signal Integrity: Ultra-low loss tangent and stable Dk ensure minimal signal distortion and phase shift, crucial for radar and microwave frequencies.
• Exceptional Mechanical & Thermal Stability: The low, balanced CTE and high thermal conductivity prevent delamination, warping, and via cracking under thermal stress, ensuring long-term reliability.
• Robust and Process-Friendly: Features excellent peel strength without requiring lossy, rough copper foils. It has low moisture absorption (0.03%) and is compatible with standard PCB processing techniques.

Typical Applications

This CLTE-AT high frequency PCB is the ideal solution for:

• Automotive Radar Systems (77 GHz) & Adaptive Cruise Control (ACC)
• Microwave and RF Front-End Modules
• Phase-Array and Temperature-Sensitive Antennas
• High-Performance RF & Microwave Filters and Diplexers
• Phase-Sensitive Electronic Applications requiring stable electrical length

Availability:

This high-performance CLTE-AT PCB is available for prototyping and volume production worldwide, supported by our global manufacturing and logistics network.

Equip your next high-frequency design with a PCB that delivers proven material science and precision manufacturing. Contact our sales team today to discuss your project requirements and request a quotation.
