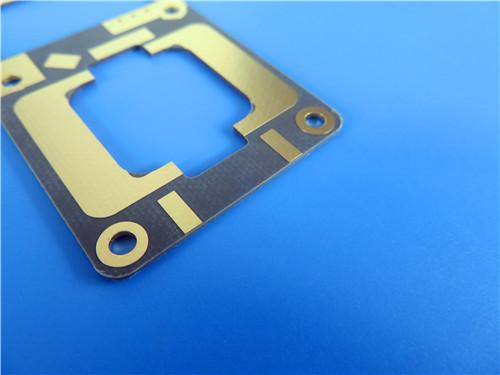

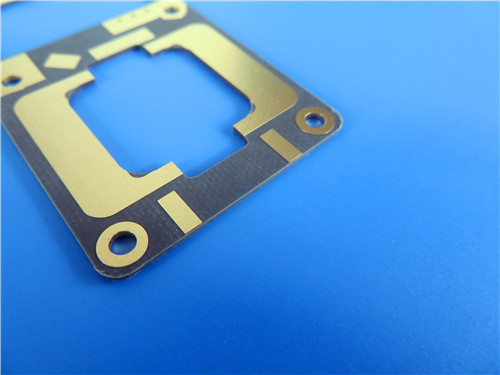

10mil Rogers RT/duroid 5880LZ 2-layer Immersion Gold White Silkscreen Custom Board

10mil Rogers RT/duroid 5880LZ 2-layer Immersion Gold White Silkscreen Custom Board

Designed for mission-critical high-frequency and weight-sensitive applications,the 10mil RT/Duroid 5880LZ 2-Layer Immersion Gold PCB represents the pinnacle of precision manufacturing and material innovation. Leveraging the exceptional electrical properties of Rogers RT Duroid 5880LZ PTFE composite material, this Rogers PCB delivers unparalleled signal integrity, thermal stability, and environmental resistance, making it an ideal choice for aerospace, military, and advanced communication systems. Below is a detailed breakdown of its specifications, construction, and performance advantages.

PCB Construction Overview

The Rogers 5880LZ PCB features a rigid 2-layer structure with strict dimensional tolerances, precise trace/space controls, and immersion gold surface finish, ensuring reliable connectivity and long-term performance. Key manufacturing parameters and quality control measures are summarized in the table below.

PCB Stackup Details

The 2-layer rigid stackup is optimized for signal transmission efficiency, with uniform copper layers and high-performance RT Duroid 5880LZ substrate ensuring consistent dielectric properties across the entire board.

PCB Key Statistics

The following statistics reflect the 10 mil RT/duroid 5880LZ PCB's compact design and optimized component layout, tailored for high-reliability applications with specific connectivity requirements.

Core Material Advantages: RT Duroid 5880LZ

At the heart of this PCB is Rogers RT/Duroid 5880LZ, a filled PTFE composite engineered for exacting stripline and microstrip circuit applications. Its unique filler composition results in a low-density, lightweight material, perfect for weight-sensitive high-performance systems. The material boasts a very low dielectric constant (2.0±0.04 at 10 GHz and 23°C) that is uniform across panels and stable over a wide frequency range, while its low dissipation factor (0.0021-0.0027 at 10 GHz and 23°C) extends its usability to Ku-band and above. Additionally, RT/Duroid 5880LZ is easily machined, cut, and sheared, and resistant to all solvents and reagents (hot or cold) commonly used in PCB etching and plating processes.

Key Performance Features

Beyond its premium material, this 0.254 mm RT/Duroid 5880LZ PCB offers a suite of performance-enhancing features: low Z-axis coefficient of thermal expansion (40 ppm/°C) ensuring dimensional stability under temperature fluctuations; excellent outgassing properties (TML 0.01%, CVCM 0.01%, WVR 0.01%) suitable for harsh environments; lightweight design (density 1.4 gm/cm³); UL 94V-0 flammability rating for safety compliance; and lead-free process compatibility meeting modern manufacturing standards.

Typical Applications

This RT/Duroid 5880LZ high frequency PCB is ideally suited for:

-Airborne antenna system

-Lightweight feed networks

-Military radar systems

-Missile guidance systems

-Point-to-point digital radio antennas

Conclusion

This 2-layer Rogers 5880LZ PCB is more than just a circuit board; it is a critical, high-reliability component engineered to enable the next generation of RF and microwave technology. By specifying this board, you are choosing guaranteed performance, consistent material properties, and manufacturing integrity tailored for the most challenging applications on earth and in space. It is available for prototyping and production worldwide, backed by expert technical support.
