The 4-Layer MT770 PCB—a precision-engineered printed circuit board tailored for high-reliability RF/microwave applications, particularly in the automotive industry. Built on Astra MT77 (FR-4) laminate, this 4-layer PCB balances exceptional electrical performance, cost-effectiveness, and manufacturability, making it a standout choice for cutting-edge automotive radar and antenna systems. Below is a comprehensive breakdown of its specifications, construction, and competitive advantages.

PCB Construction Details

The following table outlines the key construction parameters of the 4-Layer Astra MT770 PCB, covering materials, dimensions, process specifications, and quality control measures.

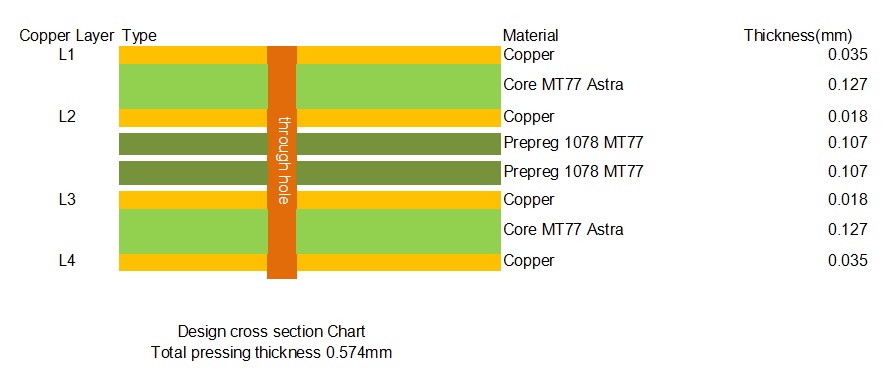

4-Layer MT770 PCB Stackup

The stackup design optimizes signal integrity and thermal performance, leveraging the MT77 laminate’s properties for stable RF/microwave operation.

Astra MT77 Laminate Advantage

The 4-Layer MT770 PCB’s performance is rooted in Astra MT77 laminate, apremium FR-4 material engineered for RF/microwave excellence. This laminate delivers exceptional electrical stability across broad frequency and temperature ranges—critical for automotive applications exposed to harsh conditions. Its dielectric constant (Dk) remains consistent from -40°C to +140°C, even at W-band frequencies, ensuring reliable signal transmission in dynamic environments. With an ultra-low dissipation factor (Df) of 0.0017, Isola Astra MT77 outperforms standard FR-4 materials and serves as a cost-effective alternative to PTFE and other high-end microwave laminates, eliminating the trade-off between performance and affordability.

Product Features & Compliance

Industry Recognition

The 4-Layer MT770 PCB holds UL File Number E41625 and is fully RoHS compliant, meeting global environmental and safety standards for automotive electronics. Its lead-free assembly compatibility aligns with modern manufacturing practices, supporting sustainable production workflows.

Performance & Process Advantages

Beyond electrical performance, this PCB offers significant manufacturing benefits.

1) It is fully FR-4 process compatible, reducing production complexity and costs.

2) Key process advantages include short lamination cycles, reduced drill wear (extending tool life), and no plasma desmear requirement—streamlining production timelines.

3) The board exhibits excellent flow and fill characteristics, dimensional stability, and compatibility with multiple lamination cycles, any-layer technology, HDI technology, and VIPPO (Via in Pad Plated Over) designs, providing flexibility for custom automotive system requirements.

Key Applications

The MT770 multilayer PCB is specifically optimized for automotive long antennas and radar systems, including:

• Adaptive cruise control
• Pre-crash detection
• Blind spot monitoring
• Lane departure warning
• Stop-and-go systems.

Its robust design, temperature stability, and low signal loss make it ideal for these safety-critical applications, where reliability and precision directly impact vehicle performance and passenger safety.

Quality Assurance

To ensure uncompromising quality, every 4-Layer MT770 immersion silver PCB undergoes 100% electrical testing prior to shipment, detecting potential defects and ensuring full functionality. Combined with strict process control and the inherent durability of Astra MT77 laminate, this PCB delivers consistent performance in the most demanding automotive environments.

In summary, the 4-Layer MT770 PCB is a high-performance, cost-effective solution for automotive RF/microwave applications, blending advanced material science, precision manufacturing, and compliance with global standards. It stands as a testament to our commitment to delivering PCB solutions that drive innovation in automotive electronics.
