Exploring the Features and Benefits of the 60mil RO4534 PCB

  • July 28. 2023
The recently shipped PCB, made from RO4534 Hydrocarbon/Ceramic/Woven Glass material, is a 2-layer rigid RO4534 board that is capable of operating in a wide temperature range of -40℃ to +85℃. Its construction features a stackup of RO4534 dielectric 60 mil (1.524mm) sandwiched between two layers of finished copper 35um with a finished copper weight of 1 oz (1.4 mils) on all layers.


The 60mil RO4534 PCB's design also includes a minimum trace/space of 4/4 mils, with no blind or buried vias, and a minimum hole size of 0.4mm to ensure reliable connections between components. It is finished with an immersion gold surface finish and has green top and bottom solder masks. Additionally, the vias are filled with resin and capped with IPC-4761 Type VII for added reliability.


The RO4534 board dimensions of 170.66mm x 70.33mm, with a tolerance of +/- 0.15mm, and it comes with no top or bottom silkscreen. A total of 173 components and 200 pads, including 121 thru-hole pads and 79 top SMT pads, are included in this PCB.


The RO4534 PCB is manufactured to meet IPC-Class-2 standards and undergoes a 100% electrical test for optimal performance. Customers can direct any technical queries to Jane at sales20@bichengpcb.com.


The 60mil RO4534 material PCB is a newly shipped 2-layer rigid board that is specifically designed to operate in high-temperature applications. This cutting-edge solution is made from RO4534 Hydrocarbon/Ceramic/Woven Glass material which provides unmatched performance and reliability. In this comprehensive guide, we will explore the technical specifications, design features, manufacturing process, benefits, and applications of the RO4534 PCB.

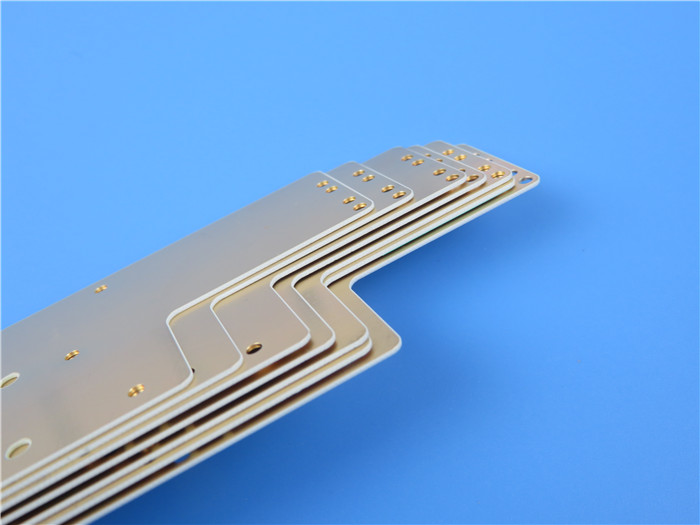

60mil RO4534 material


Technical Specifications:

The RO4534 PCB has a dielectric constant of 3.4±0.08 and a dissipation factor of 0.0022 at 2.5 GHz/23°C, making it an excellent choice for high-frequency applications. Its PIM (Typical) of -157dBc ensures low signal distortion, and its dielectric strength of >500 V/mil ensures a reliable and robust board. The PCB's dimensional stability is <0.3 mm/m (mils/inch) after etch, and its coefficient of thermal expansion is 11 ppm/℃ in the X-direction, 14 ppm/℃ in the Y-direction, and 46 ppm/℃ in the Z-direction. The RO4534 PCB's thermal conductivity is 0.6 W/(m.K) at 80°C, and its moisture absorption is 0.06%.


Design Features:

The RO4534 PCB boasts a minimum trace/space of 4/4 mils, with no blind or buried vias, and a minimum hole size of 0.4mm to ensure reliable connections between components. Its finished copper weight of 1 oz (1.4 mils) on all layers and finished board thickness of 1.6mm make it a robust and reliable solution. The vias are filled with resin and capped with IPC-4761 Type VII, and the board features an immersion gold surface finish. The PCB dimensions are 170.66mm x 70.33mm with a tolerance of +/- 0.15mm, and it comes with no top or bottom silkscreen.


Manufacturing Process:

The RO4534 PCB is manufactured to meet IPC-Class-2 standards and undergoes a 100% electrical test for optimal performance. The PCB's construction features a stackup of RO4534 dielectric 60 mil (1.524mm) sandwiched between two layers of finished copper 35um. A total of 173 components and 200 pads, including 121 thru-hole pads and 79 top SMT pads, are included in this PCB.


Benefits:

The RO4534 PCB's design ensures optimal functionality and durability, making it an excellent choice for harsh environments. It is suitable for a wide range of high-temperature applications, including aerospace, defense, and automotive industries. The PCB's high-quality construction and components make it a reliableand robust solution for critical applications, providing unmatched performance and reliability.


Applications:

With its ability to operate in a wide temperature range of -40℃ to +85℃, the RO4534 PCB is ideal for a diverse range of applications. Its reliable and robust design makes it suitable for high-temperature electronics, including automotive, aerospace, and defense industries. The RO4534 PCB's exceptional thermal conductivity and dimensional stability make it an excellent choice for power electronics, telecommunications, and RF/microwave applications.


Comparison with Other PCB Materials:

Compared to other PCB materials, such as FR-4 and polyimide, the RO4534 PCB offers superior thermal conductivity and dimensional stability, making it an ideal choice for high-temperature applications. Its high-quality construction and components ensure optimal performance and reliability, making it a robust and reliable solution for critical applications.


Testing and Quality Control:

The RO4534 PCB undergoes a 100% electrical test to ensure optimal performance and reliability. Its manufacturing process meets IPC-Class-2 standards, ensuring consistent and reliable quality control. The PCB's construction and design features are optimized for durability, providing customers with a reliable and long-lasting solution.


Maintenance and Care:

To ensure the RO4534 PCB's optimal performance and longevity, it is essential to follow proper maintenance and care procedures. This includes proper handling, cleaning, and storage of the PCB. The PCB's design features and construction make it a robust and reliable solution, but proper care and maintenance are crucial to ensure its optimal performance and longevity.

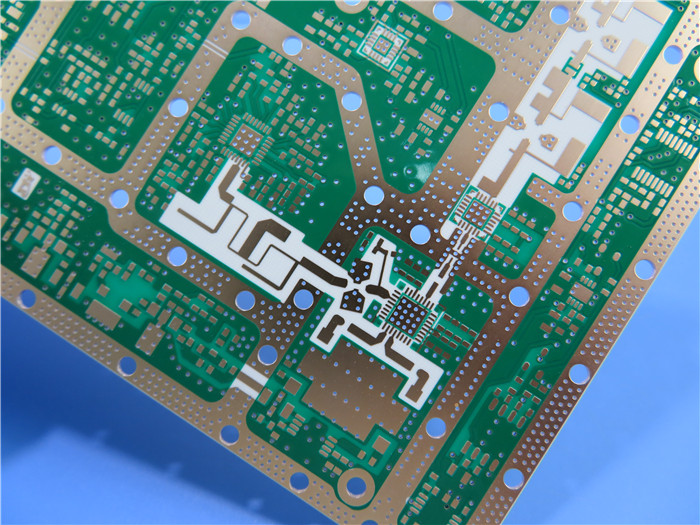

60MILRO4534 PCB


Conclusion and Future of RO4534 PCB:

In summary, the 60mil RO4534 PCB's high-quality construction and components make it a robust and reliable solution for a diverse range of applications. With its ability to operate in a wide temperature range and its dependable design features,RO4534 PCB is a solid choice for any project requiring a durable and high-performance board.

The RO4534 PCB is a cutting-edge solution for high-temperature applications, providing unmatched performance and reliability. Its exceptional thermal conductivity, dimensional stability, and high-quality construction make it a reliable and robust solution for critical applications. As technology continues to evolve, the RO4534 PCB is poised to become a leading choice for high-temperature electronics. With its exceptional design features and manufacturing process, the RO4534 PCB is a reliable and long-lasting solution for a diverse range of applications.
