How Can AD255C High Frequency PCBs Enhance Your RF and Microwave Designs?

In the rapidly evolving world of telecommunications and high-speed electronics, the demand for advanced printed circuit boards (PCBs) that can perform reliably at high frequencies is greater than ever. Among the leading materials engineered to meet these challenging requirements is the Rogers AD255C laminate—a premier choice for high-frequency PCB applications. This article explores the key attributes, manufacturing capabilities, and practical applications of AD255C High Frequency PCBs, illustrating why they are an optimal solution for cutting-edge RF and microwave systems.

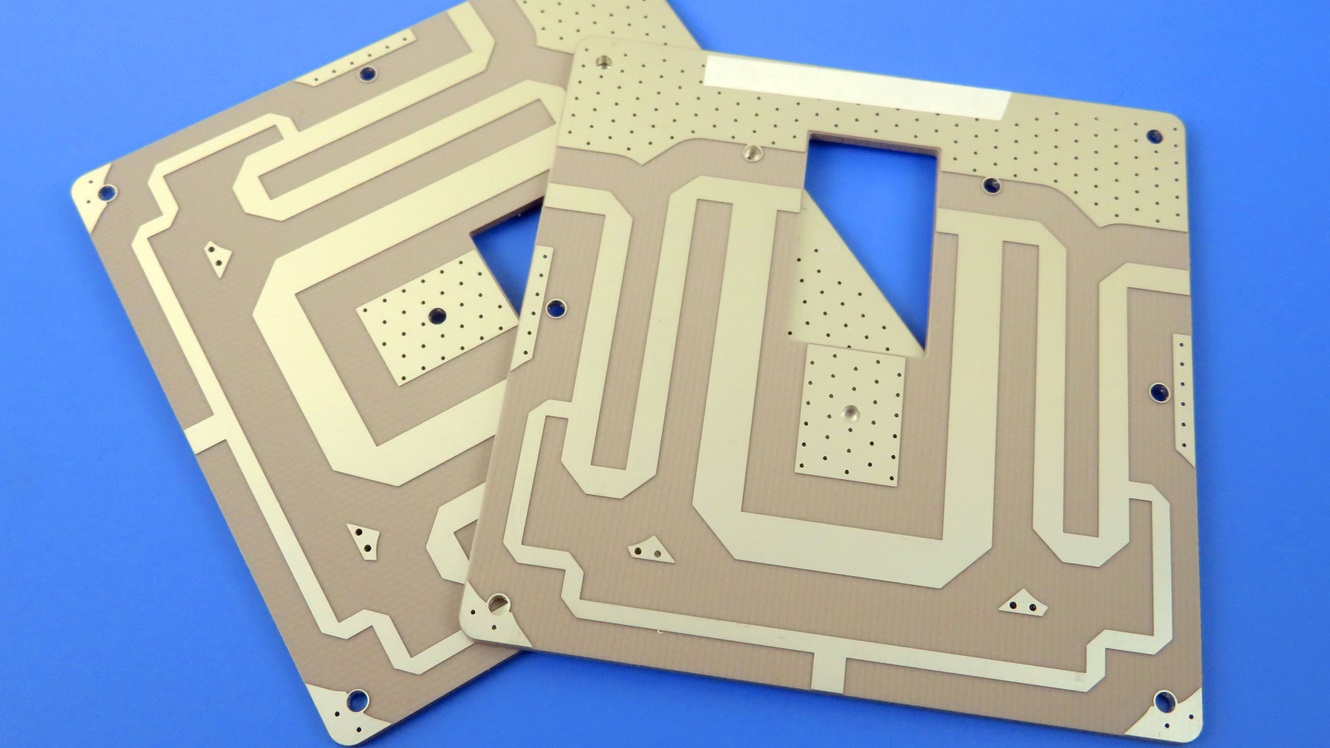

An Introduction to AD255C High Frequency Laminates

Rogers AD255C laminates represent a sophisticated class of high-performance materials, formulated through a precise combination of fluoropolymer resin, specialized ceramic fillers, and reinforced fiberglass. This unique composition capitalizes on the outstanding thermal and electrical characteristics of fluoropolymer, augmented by the mechanical stability offered by ceramic and glass reinforcement. The result is a high-frequency substrate that delivers remarkably low signal loss, reduced passive intermodulation (PIM), and excellent control over thermal expansion. These properties make AD255C an ideal candidate for a wide range of telecommunication and RF applications where signal integrity and thermal management are critical.

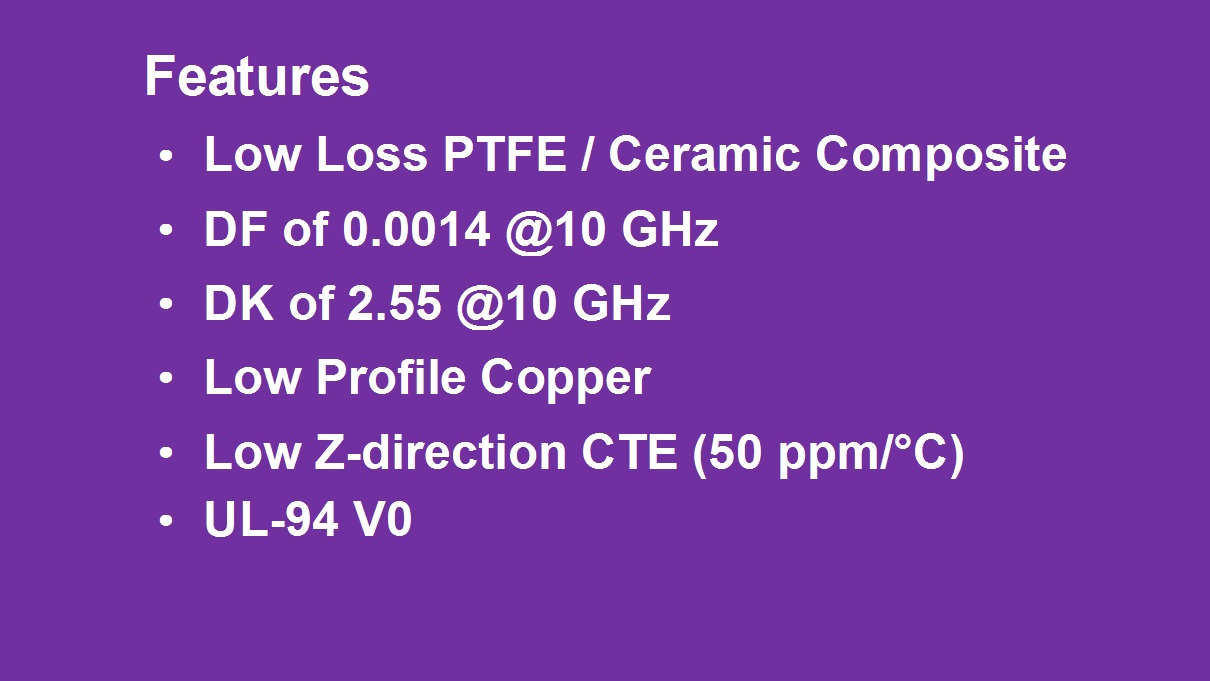

Salient Features of AD255C High Frequency PCBs

1) Ultra-Low Loss Composite Structure:

The AD255C material is based on a polytetrafluoroethylene (PTFE) matrix enriched with ceramic micro-fillers. This composite ensures minimal dielectric loss, making it exceptionally suitable for high-speed and high-frequency circuit designs where signal attenuation must be kept to an absolute minimum.

2) Exceptional Loss Tangent Performance:

With an impressively low dissipation factor of 0.0014 measured at 10 GHz—typical for base station operating frequencies—this laminate facilitates highly efficient RF signal transmission. This leads to improved energy efficiency, reduced heat generation, and enhanced overall system performance.

3) Stable Dielectric Constant:

The AD255C material offers a consistent dielectric constant (Dk) of 2.55, which is maintained within tight tolerances. This uniformity ensures predictable impedance matching and reliable signal propagation, which are essential in sensitive high-frequency and microwave applications.

4) Low-Profile Copper Foil:

The inclusion of electro-deposited low-profile copper enhances electrical conductivity while supporting finer line patterning and improved etching resolution. This feature is especially beneficial in compact and densely populated PCB layouts.

5) Controlled Thermal Expansion:

The coefficient of thermal expansion (CTE) in the Z-direction is limited to 50 ppm/°C. This low CTE value significantly improves dimensional stability across varying temperatures, reducing the risk of plated-through-hole failure and ensuring long-term reliability under thermal cycling.

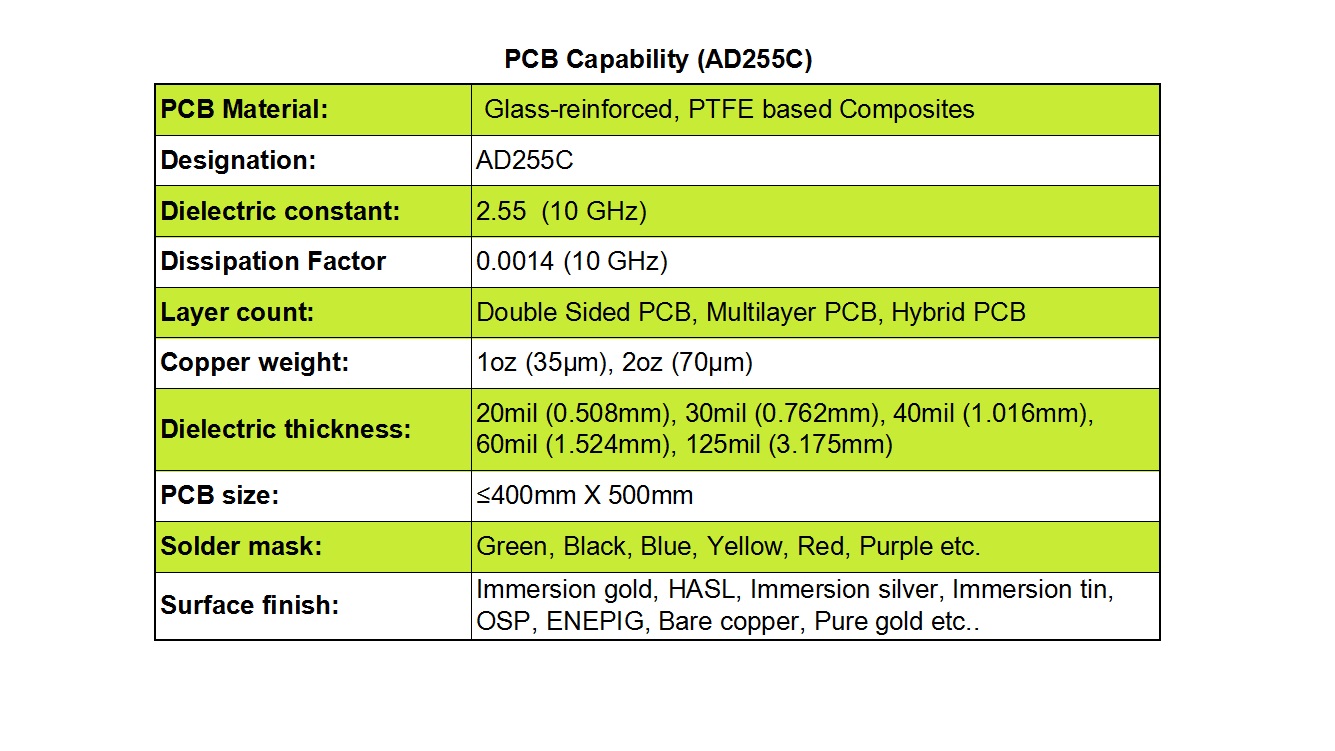

PCB Manufacturing Capabilities with AD255C Materials

We support the fabrication ofhigh-frequency PCBs using AD255C substrate with the following capabilities:

Board Construction: Options include double-layer, multilayer, and hybrid PCB structures, supporting both standard and high-complexity designs.

Copper Weight and Dielectric Thickness: Available copper weights include 1 oz (35 µm) and 2 oz (70 µm). Dielectric thickness can be selected from 20 mil (0.508 mm) up to 125 mil (3.175 mm).

Panel Size: Maximum panel dimensions of 400 mm x 500 mm are supported, accommodating either one large board or multiple arrays.

Solder Mask Variants: Multiple color options are available including Green, Black, Blue, Yellow, Red, Purple, and more.

Surface Finishes: We offer a comprehensive selection of surface treatments such as Immersion Gold (ENIG), HASL, Immersion Silver, Immersion Tin, OSP, ENEPIG, Bare Copper, and Full Gold Plating.

Typical Applications

AD255C PCBs are widely used in applications where signal integrity and thermal performance are paramount. Common use cases include:

• Cellular infrastructure equipment including 5G base station antennas
• Automotive telematics and radar antenna systems
• Satellite communication equipment and commercial radio antennas
• Aerospace and defense communication systems
• High-speed data transmission and microwave radio links

Conclusion

The Rogers AD255C High Frequency PCB material offers a compelling blend of low loss, stable electrical properties, and excellent thermal characteristics, making it an outstanding substrate for advanced RF and microwave applications. With extensive manufacturing flexibility and a wide range of finishing options, we are well-equipped to support your high-frequency PCB requirements with reliability and precision.
