Why Choose RO3010 High Frequency PCBs for Superior RF Performance?

In the world of high-frequency electronics, the demand for reliable and high-performing printed circuit boards (PCBs) is continuously growing. Rogers RO3010 high-frequency circuit material srepresent a cutting-edge solution designed for applications where signal integrity, thermal management, and dimensional stability are non-negotiable. Composed of ceramic-filled PTFE (polytetrafluoroethylene) composites, RO3010 delivers a high dielectric constant with exceptional stability over a broad frequency range. This advanced material not only supports enhanced electrical performance but also facilitates the design of broadband components, making it suitable for a diverse spectrum of high-frequency uses.

One of the most compelling advantages of RO3010 laminates is their competitive cost without compromising on quality. They provide outstanding mechanical durability and electrical reliability, which are critical in high-stakes industries such as telecommunications, automotive, and satellite communications. Moreover, the inherent properties of Rogers RO3010 allow for significant circuit miniaturization, enabling designers to achieve more compact and efficient layouts without sacrificing performance.

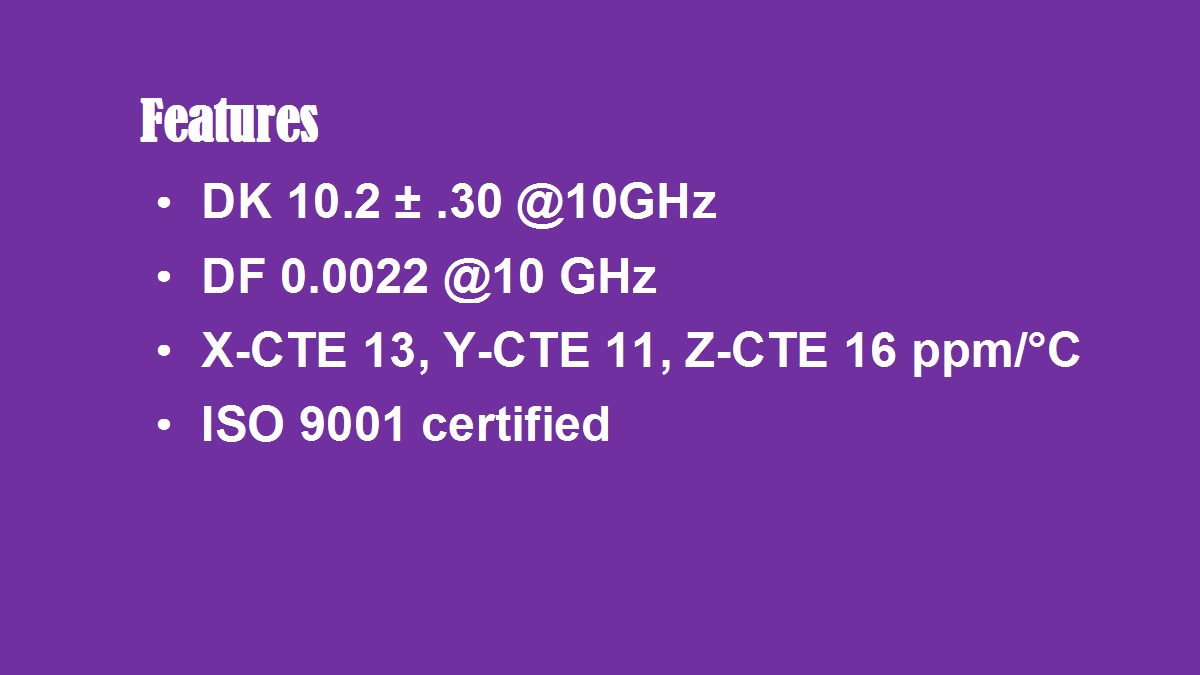

Key Features and Benefits

At the core of Rogers 3010’s superior performance is its stable dielectric constant (Dk) of 10.2±0.30 @ 10 GHz. This high Dk value is paired with an ultra-low dissipation factor (Df) of 0.0022 at the same frequency, ensuring minimal signal loss and improved efficiency in high-frequency operations. Such characteristics are essential for applications requiring precise signal transmission and low latency.

Thermal management is another area where RO3010 excels. The material exhibits a low coefficient of thermal expansion (CTE)—13 ppm/°C in the X-axis, 11 ppm/°C in the Y-axis, and 16 ppm/°C in the Z-axis. This CTE is closely matched to that of copper, thereby reducing the risk of delamination and ensuring robust plated through-holes. As a result, PCBs made with RO3010 maintain dimensional integrity across varying temperatures, minimizing phase shifts and promoting consistent performance in challenging environments.

Furthermore, all RO3010 materials are produced under ISO 9001 certified processes, guaranteeing adherence to international quality and reliability standards. This certification provides engineers and procurement specialists with confidence in the material’s consistency and performance. For complex multi-layer PCB designs, RO3010 offers exceptional versatility and stability, making it an ideal substrate for sophisticated RF and microwave circuits.

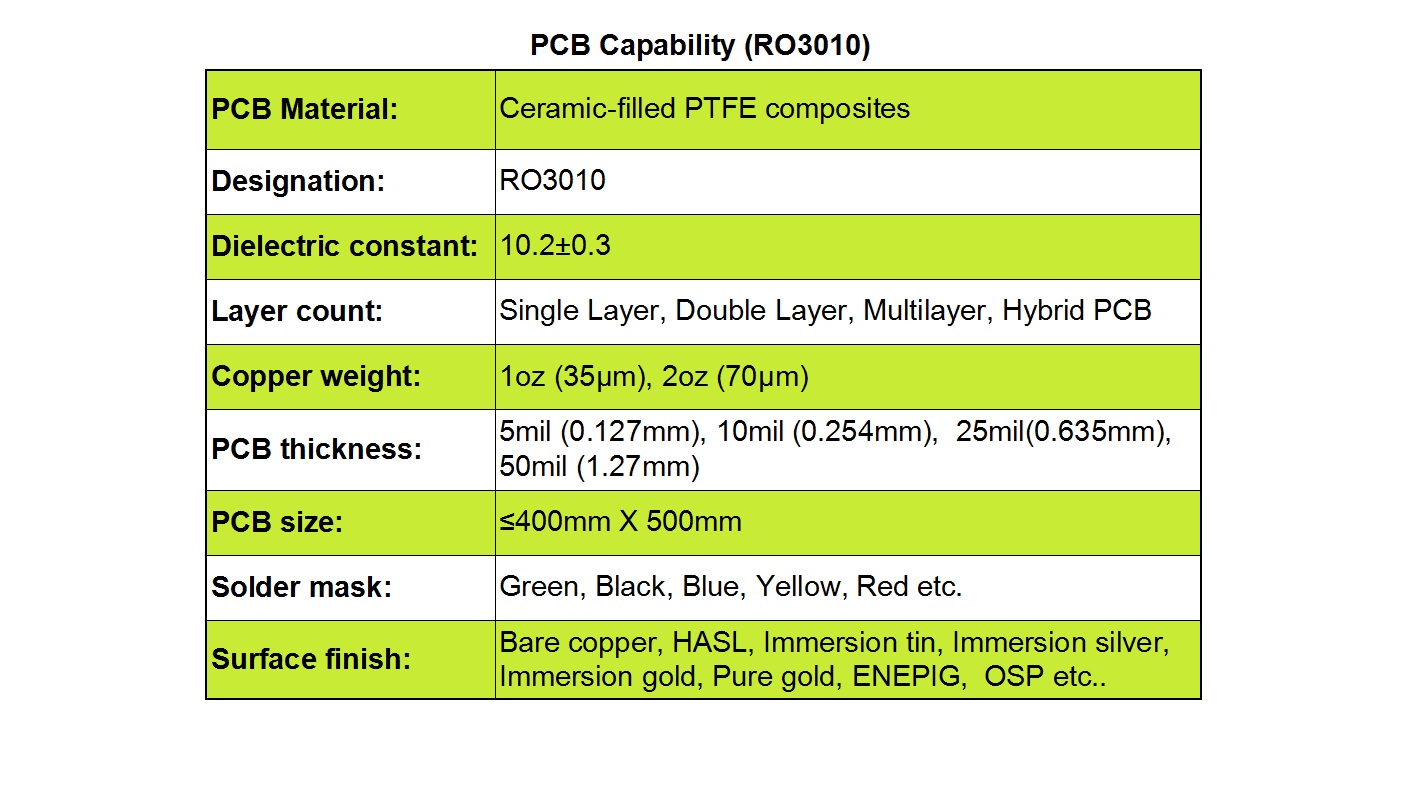

PCB Capabilities with RO3010 Material

We take pride in offering advanced PCB fabrication services leveraging RO3010’s exceptional properties. Our manufacturing support includes single-layer, double-layer, multi-layer, and hybrid PCB structures, providing the flexibility needed to meet diverse and customized design requirements.

We work with a range of copper weights from 1oz (35μm) to 2oz (70μm) and offer various thickness options including 5 mil (0.127 mm), 10 mil (0.254 mm), 25 mil (0.635 mm), and 50 mil (1.27 mm). These options allow optimal design flexibility for different applications, from ultra-thin layers to standard and thicker boards.

Our maximum panel size capability is 400 mm x 500 mm, suitable for both prototype and medium-volume production needs.

We also provide a wide selection of solder mask colors—green, black, blue, yellow, and red—along with multiple surface finishes. Choices include bare copper, HASL (Hot Air Solder Leveling), immersion tin, immersion silver, ENIG (Electroless Nickel Immersion Gold), pure gold, ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold), and OSP (Organic Solderability Preservative). This ensures that both the electrical and aesthetic requirements of your project are fully met.

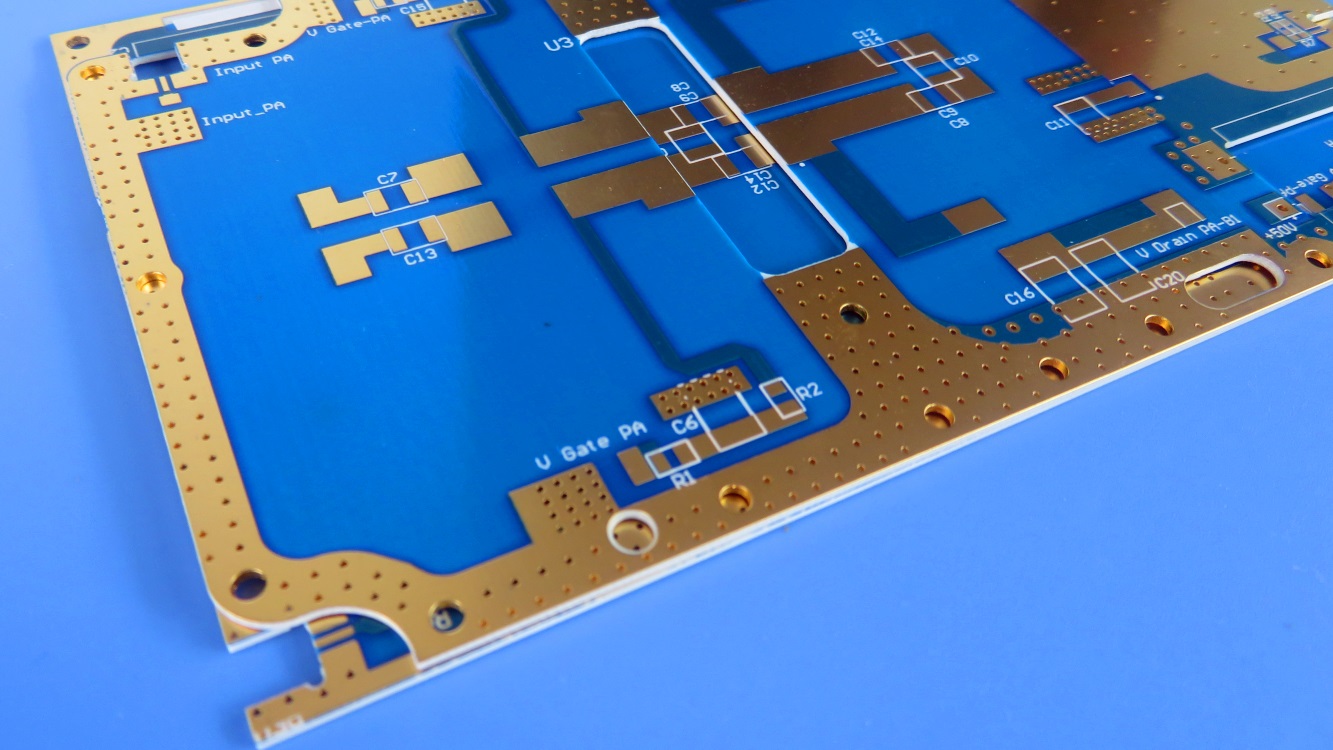

Applications of RO3010 High Frequency PCBs

RO3010 is widely trusted across industries that demand high reliability and superior electrical performance. Common applications include:

• Automotive radar systems (e.g., adaptive cruise control, collision avoidance)
• Global Positioning Satellite (GPS) antennas
• Cellular telecommunications infrastructure
• Patch antennas for wireless communication networks
• Direct broadcast satellites (DBS) and other aerospace communication systems

Whether you are developing advanced driver assistance systems (ADAS), next-generation 5G base stations, or satellite communication devices, RO3010 PCBs offer the electrical stability and miniaturization capabilities needed to push the boundaries of technology.

Partner with a Trusted RO3010 PCB Supplier

With our state-of-the-art manufacturing capabilities and in-depth expertise in high-frequency materials, we are ready to support your project from design to production. If you are looking for a reliable partner for RO3010 high frequency PCBs, feel free to reach out for a quotation or technical discussion.
