How Does the RF-35 PCB 10mil Compare to Other Laminate Materials inTerms of Cost, Performance, and Reliability for RF Applications?

Introduction

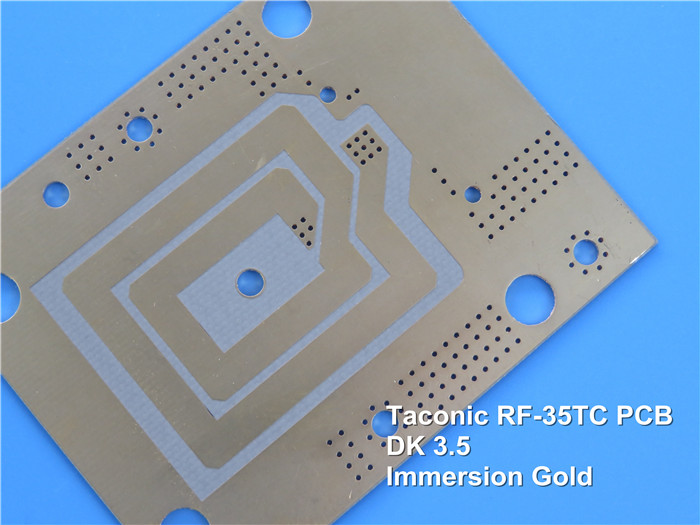

The RF-35 PCB 10mil is an organic-ceramic laminate in the ORCER family of Taconic products. It combines Taconic's expertise in ceramic fill technology and coated PTFE fiberglass to provide a high-performance solution for low-cost, high-volume commercial microwave and radio frequency (RF) applications. With excellent peel strength, low dissipation factor, and enhanced surface smoothness, the Taconic RF-35 PCB offers exceptional reliability and performance.

Features

The RF-35 10mil Taconic PCB materials are packed with features that make it an excellent choice for RF applications:

1)Dielectric Constant at 1.9GHz:

The PCB has a dielectric constant of 3.5 at 1.9GHz, ensuring consistent electrical performance. This feature enables precise signal transmission and reception in RF circuits.

2)Low Dissipation Factor:

With a dissipation factor of 0.0018 at 1.9GHz, the RF-35 PCB 10mil minimizes signal loss and phase shift, contributing to improved overall system performance. It is ideal for applications where low loss and high signal integrity are critical.

3)Dielectric Breakdown:

The PCB has a dielectric breakdown strength of 41 kV, ensuring reliable insulation and preventing electrical breakdown under high voltage conditions. This feature enhances the safety and durability of the PCB.

4)Controlled Coefficient of Thermal Expansion (CTE):

The RF-35 PCB 10mil exhibits controlled CTE values of 19 ppm/°C (X-axis), 24 ppm/°C (Y-axis), and 64 ppm/°C (Z-axis). This controlled expansion minimizes the risk of thermal stress and enhances the reliability of the PCB under varying temperature conditions.

5)Flammability:

The RF-35 PCB 10mil meets the UL-94 V0 flammability rating, ensuring it complies with strict safety standards. This feature provides an added layer of protection against fire hazards.

How does the RF-35 PCB compare to other laminate materials in terms of cost, performance, and reliability for RF applications?

The RF-35 high frequency laminate pcb boards tands out among laminate materials for RF applications due to its unique combination of cost-effectiveness, performance, and reliability. Let's compare it to other commonly used laminate materials in these aspects:

Cost:

The RF-35 PCB is specifically designed to be a low-cost solution for high-volume commercial applications. Its cost-effectiveness stems from Taconic's expertise in manufacturing processes and material selection. Compared to premium laminates that may offer similar performance, the RF-35 PCB provides significant cost savings without compromising on quality. It is an excellent choice for cost-conscious projects that require reliable RF performance.

Performance:

In terms of performance, the RF-35 PCB offers several advantages. Its dielectric constant of 3.5 at 1.9GHz ensures consistent electrical performance, enabling precise signal transmission and reception in RF circuits. The low dissipation factor of 0.0018 at 1.9GHz minimizes signal loss and distortion, contributing to improved overall system performance. These characteristics make the RF-35 PCB suitable for high-frequency RF applications where maintaining signal integrity is critical.

Reliability:

The RF-35 RF PCB Material exhibits excellent reliability characteristics. It has exceptional peel strength, particularly for 1/2 ounce and 1 ounce copper, making it highly resistant to delamination and ensuring the integrity of the PCB during rework and assembly processes. The controlled coefficient of thermal expansion (CTE) minimizes the risk of thermal stress, enhancing the reliability of the PCB under varying temperature conditions. Additionally, the RF-35 PCB has a low moisture absorption rate, which contributes to its dimensional stability and long-term reliability.

When comparing the RF-35 PCB to other laminate materials, it is important to consider the specific requirements of the RF application and the trade-offs between cost, performance, and reliability. Premium laminates may offer slightly better performance but often come at a significantly higher cost. On the other hand, lower-cost laminates may sacrifice some performance characteristics but offer an attractive cost advantage. The RF-35 PCB strikes a balance by providing a cost-effective solution without compromising essential performance and reliability parameters, making it a preferred choice for many RF applications.

It is worth noting that the suitability of a specific laminate material depends on the specific requirements of the application, such as frequency, power levels, temperature, and environmental conditions. Consulting with an experienced PCB designer or manufacturer can provide further insights into selecting the most suitable laminate material for a particular RF application.

RF-35 PCB Benefits

The RF-35 PCB 10mil offers several benefits that make it a preferred choice for RF applications:

1.Low Cost:

Designed with cost-effectiveness in mind, the RF-35 PCB 10mil provides an affordable solution for high-volume commercial applications. It allows for significant cost savings without compromising on performance and reliability.

2.Excellent Peel Strength:

The PCB demonstrates exceptional peel strength, particularly for 1/2 ounce and 1 ounce copper. This feature is crucial in applications requiring rework, ensuring the PCB withstands repeated soldering and desoldering without compromising the PCB's integrity.

3.Exceptionally Low Dissipation Factor:

The RF-35 PCB 10mil offers an extremely low dissipation factor, minimizing signal loss and distortion. This benefit is particularly valuable in high-frequency RF applications, where maintaining signal integrity is critical.

4.Low Moisture Absorption:

With an ultra-low moisture absorption rate, the RF-35 PCB 10mil exhibits excellent dimensional stability even under humid conditions. This characteristic ensures consistent performance and reliability in various environments.

5.Enhanced Surface Smoothness:

The RF-35 PCB 10mil features enhanced surface smoothness, allowing for precise component placement and soldering. This benefit facilitates efficient assembly processes, reduces the risk of solder defects, and ensures optimal electrical connections.

PCB Stackup and Construction Details

The RF-35 PCB 10mil is a wholesale high quality double sided circuit board with a copper weight of 35 μm on both the top and bottom layers. The core of the PCB is composed of RF-35 material, measuring 10 mils (0.254 mm) in thickness. This stackup configuration enables reliable signal transmission and efficient thermal management.

The board dimensions of the RF-35 PCB 10mil are precisely measured at 65.9 mm x 36.32 mm, with a tolerance of +/- 0.15 mm. It supports a minimum trace/space of 4/4 mils, facilitating the design of intricate circuitry. The minimum hole size supported is 0.4 mm, accommodating various component packages and interconnections.

The finished board thickness is 0.3 mm, providing a slim profile while maintaining structural integrity. The finished copper weight is 1 oz (1.4 mils) on all outer layers, ensuring sufficient conductivity and effective heat dissipation. The via plating thickness is 25 μm, guaranteeing reliable electrical connections throughout the PCB.

To protect the PCB and facilitate soldering, the surface finish of the RF-35 PCB 10mil is immersion gold. This finish provides excellent solderability, corrosion resistance, and ensures long-term reliability.

The PCB features a top silkscreen in black, providing clear component identification and reference. The absence of a bottom silkscreen reduces complexity and cost while maintaining functionality. Additionally, there is no silkscreen on the solder pads, ensuring precise component placement and soldering accuracy.

Quality Assurance and Statistics

The RF-35 high-frequency PCB 10mil adheres to the IPC-Class-2 quality standard, ensuring consistent and reliable performance. It undergoes a 100% electrical test prior to shipment, guaranteeing that each unit meets the specified requirements.

The PCB statistics of the RF-35 Taconic laminates PCB 10mil are as follows: it supports 18 components and boasts a total of 26 pads. Out of these pads, 19 are dedicated to thru-hole components, while 7 are designated for top surface mount technology (SMT) components. The PCB does not have bottom SMT pads. There are 11 vias, enabling efficient interconnections between different layers. The PCB supports 2 nets, allowing for effective routing of electrical signals.

Availability and Applications

The RF-35 10mil substrate PCB is available worldwide, ensuring accessibility for customers around the globe. Its outstanding performance and cost-effectiveness make it suitable for a wide range of applications, including:

Power Amplifiers:

The RF-35 PCB 10mil provides a reliable platform for power amplifiers, delivering high-quality signal amplification with minimal losses. Its low dissipation factor and excellent peel strength make it an ideal choice for high-power RF amplification.

Filters and Couplers:

The PCB's exceptional electrical properties, such as low dielectric constant and low dissipation factor, make it well-suited for filters and couplers. It enables precise frequency response and ensures minimal signal loss, resulting in efficient signal filtering and coupling.

Passive Components:

The RF-35 PCB 10mil supports the integration of passive components, such as resistors, capacitors, and inductors. Its low moisture absorption rate and controlled CTE help maintain the stability and performance of these components over time.

Conclusion

In conclusion, the RF-35 PCB 10mil is a high-performance and cost-effective solution for RF applications. With its exceptional peel strength, low dissipation factor, and low moisture absorption rate, it offers reliable performance and efficient signal transmission. The RF-35 high-frequency printed boards' construction details, including a 2-layer rigid stackup, controlled CTE, and precise dimensions, further enhance its suitability for a variety of applications. Whether used in power amplifiers, filters, couplers, or passive components, the RF-35 PCB 10mil ensures optimal performance, durability, and cost-efficiency, making it an excellent choice for customers worldwide.
