Hybrid PCB
Hybrid PCB
Home Newly Shipped RF PCB RF-35 60mil PCB 1.524mm Taconic Substrate Immersion Tin

RF-35 60mil PCB 1.524mm Taconic Substrate Immersion Tin

The RF-35 60mil PCB is a high-quality printed circuit board designed for various applications.

  • Item NO.:

  • Order(MOQ):

  • Payment:

  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

  • Shipping Port:

  • Lead Time:

    7-10 days
  • Product Detail

RF-35 60mil PCB 1.524mm Taconic SubstrateImmersion Tin


Introducing our RF-35 60mil material PCB, a high-quality and reliable printed circuit board designed to meet the demands of power amplifiers, filters, couplers, and passive components. With exceptional performance and a wide range of applications, this PCB is an ideal choice for various electronic projects.


PCB Material:

The RF-35 60mil PCB is built using Taconic ORCER family material, which features a PTFE ceramic-woven glass reinforcement. With a dielectric constant of 3.5 at 1.9 GHz and a dissipation factor of 0.0018 at the same frequency, this PCB ensures excellent signal integrity and minimal signal loss. Its dielectric breakdown of 41 kV provides durability and reliability. Additionally, the PCB exhibits a low coefficient of thermal expansion (CTE) with an x-axis CTE of 19 ppm/°C, y-axis CTE of 24 ppm/°C, and z-axis CTE of 64 ppm/°C.



The RF-35 60mil PCB features a 2-layer rigid construction. It consists of a copper layer with a thickness of 70μm (2oz) on the top and bottom sides. The RF-35 core has a thickness of 60mil (1.524mm), providing stability and robustness to the board.

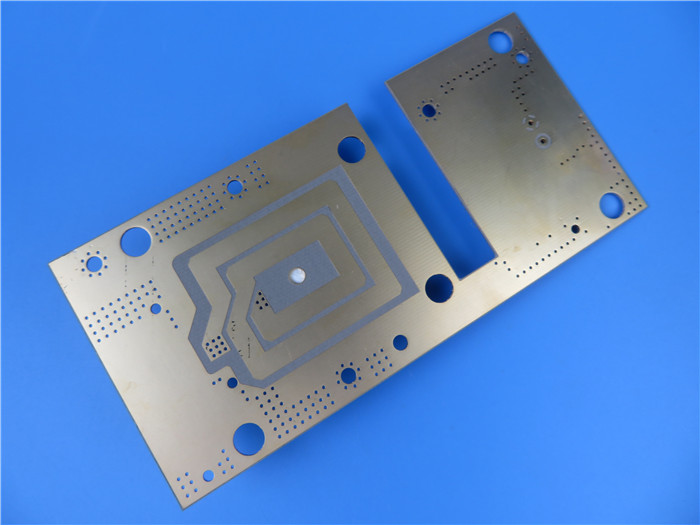

RF-35 60mil material PCB


Construction Details:

Construction Details


Board Dimensions

88mm x 88mm (1PCS), +/- 0.15mm

Minimum Trace/Space

5/6 mils

Minimum Hole Size


Blind Vias


Finished Board Thickness


Finished Cu Weight (Outer Layers)

2oz (2.8 mils)

Via Plating Thickness


Surface Finish

Immersion Tin

Top Silkscreen


Bottom Silkscreen


Top Solder Mask


Bottom Solder Mask


Electrical Test

100% Electrical Test prior to shipment


PCB Statistics:

PCB Statistics




Total Pads


Thru Hole Pads


Top SMT Pads


Bottom SMT Pads








Artwork and Quality Standard:

The RF-35 60mil substrate utilizes Gerber RS-274-X artwork, a widely recognized industry standard for PCB fabrication. It adheres to the IPC-Class-2 quality standard, ensuring high-quality manufacturing and reliable performance.



Low Cost: The RF-35 Taconic PCB offers excellent value for its features and performance.

Excellent Peel Strength: With a peel strength exceeding 8.0 lbs/linear inch (1.5 N/mm), this PCB provides secure bonding of copper traces and components.

Exceptionally Low Dissipation Factor: The PCB's low dissipation factor of 0.0018 at 1.9 GHz minimizes signal loss and ensures optimal signal transmission.

Low Moisture Absorption: With a moisture absorption rate of 0.02% (0.060"), this PCB maintains its electrical properties even in humid environments.

Enhanced Surface Smoothness: The immersion tin surface finish provides a smooth and uniform surface, facilitating reliable soldering and assembly processes.

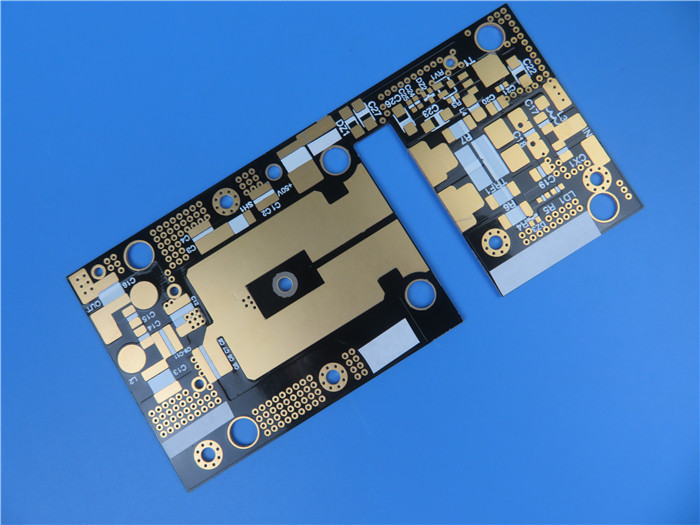

RF-35 Taconic PCB


The RF-35 60mil PCB is well-suited for a range of applications, including:


Power amplifiers: Enable efficient amplification of signals with high power requirements.

Filters and couplers: Ensure precise signal filtering and coupling for improved signal quality.

Passive components: Support various passive electronic components, such as resistors and capacitors.


Availability and Contact Information:

The RF-35 60mil PCB is available for worldwide distribution. For any technical inquiries or further information, please contact Jane at


Technical Data (for reference):

Dielectric Constant @ 1.9 GHz: 3.5

Dissipation Factor @ 1.9 GHz: 0.0018

Moisture Absorption (.060"): 0.02%

Peel Strength (1/2 oz. copper): >8.0 lbs./linear inch (>1.5 N/mm)

Dielectric Breakdown: 41 kV

Volume Resistivity: 1.26 x 10^9 Mohm/cm

Surface Resistivity: 1.46 x 10^8 Mohm

Arc Resistance: >180 seconds

Flexural Strength Lengthwise: >22,000 psi (>152 N/mm²)

Flexural Strength Crosswise: >18,000 psi (>124 N/mm²)

Thermal Conductivity: 0.24 W/m/K

Tensile Strength Lengthwise: 27,000 psi (187 N/mm²)

Tensile Strength Crosswise: 21,000 psi (145 N/mm²)

Dimensional Stability Lengthwise: 0.00004 in/in (0.00004 mm/mm)

Dimensional Stability Crosswise: -0.0001 in/in (-0.0001 mm/mm)

x-y CTE: 19-24 ppm/°C

z CTE: 64 ppm/°C

Flammability: UL-94 V-0

Hardness: Rockwell M Scale 34


In summary, the RF-35 60mil PCB is a high-quality circuit board suitable for power amplifiers, filters, and couplers. With its Taconic ORCER material, precise construction, and excellent electrical and mechanical properties, it provides reliable performance in demanding applications.
