Introduction to RO3210

The RO3210 Rogers laminates are designed to offer exceptional electrical characteristics while maintaining superior mechanical stability. A key feature that sets them apart is their improved rigidity, which is crucial for handling and processing during PCB fabrication. These laminates seamlessly blend the surface smoothness of a non-woven PTFE laminate with the strength of a woven-glass PTFE laminate, allowing for precise and intricate circuit designs.

Features

1)Dielectric Constant (Dk):

With a Dk of 10.2 +/- 0.5, RO3210 Rogers PCB ensures consistent signal integrity and minimal loss, essential for high-frequency circuitry.

2)Dissipation Factor:

The impressively low dissipation factor of .0027 at 10GHz guarantees efficient signal transmission and minimal energy loss.

3)Thermal Management:

RO3210's coefficient of thermal expansion, meticulously matched to copper (x y z: 13 ppm/°C, 13 ppm/°C, 34 ppm/°C), ensures thermal stability and reliability under varying temperature conditions.

4)High Temperature Resistance:

Featuring a Decomposition Temperature (Td) of 500°C TGA, RO3210 excels in high-temperature applications, offering durability and longevity.

5)Thermal Conductivity:

Boasting a thermal conductivity of 0.81W/mK, RO3210 facilitates efficient heat dissipation, crucial for maintaining optimal performance.

6)Flammability Standards:

Compliant with V0 UL 94 standards, RO3210 prioritizes safety without compromising on performance.

What Are the Benefits of Using RO3210 PCB in High-frequency Designs?

Using RO3210 Rogers PCB board in high-frequency designs offers a multitude of benefits that cater to the demanding requirements of such applications. Here are some key advantages of utilizing RO3210 PCB in high-frequency designs:

1)Woven Glass Reinforcement:

The woven glass reinforcement enhances rigidity, making handling and assembly easier, thus streamlining the manufacturing process.

2)Uniform Electrical and Mechanical Performance:

Ideal for intricate multi-layer high-frequency structures, RO3210 Rogers substrates ensures consistent electrical and mechanical properties, guaranteeing reliability in complex designs.

3)Low In-Plane Expansion Coefficient:

Matched to copper, RO3210's low expansion coefficient makes it a perfect choice for epoxy multi-layer board hybrid designs and surface mounted assemblies, ensuring stability and longevity.

4)Excellent Dimensional Stability:

With exceptional dimensional stability, RO3210 enables high production yields, reducing errors and ensuring consistent quality.

5)Surface Smoothness:

The smooth surface of RO3210 allows for finer line etching tolerances, enabling precise circuit design and enhancing overall performance.

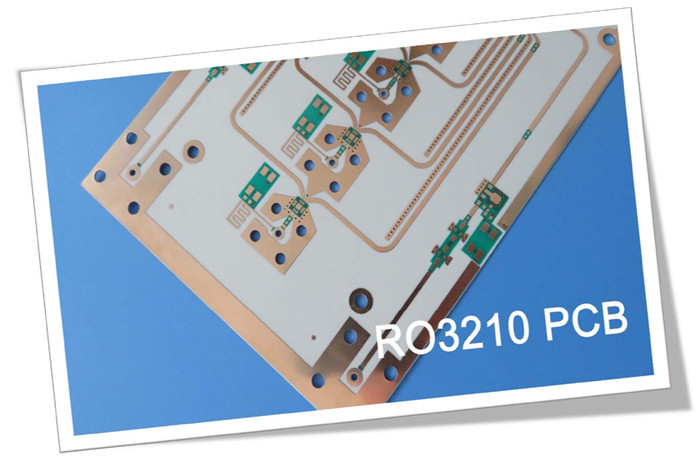

PCB Construction Details

The Rogers 3210 PCB comes in a 2-layer rigid PCB stackup with copper layers and a RO3210 30mil core. Key construction details include:

Board Dimensions: 120mm x 80mm, allowing for versatile design possibilities.

Trace/Space: Minimum of 5/5 mils, enabling precise circuit routing.

Hole Size: Minimum of 0.3mm, accommodating various components.

Finished Board Thickness: 0.8mm, striking a balance between compactness and durability.

Surface Finish: Immersion Silver, ensuring corrosion resistance and optimal signal integrity.

Quality Standard: Compliant with IPC-Class-2 standards, guaranteeing high quality and reliability.

Availability: Available worldwide to cater to global demand.

PCB Statistics

With 19 components, 37 total pads, 28 vias, and 3 nets, the RO3210Rogers circuit board is designed to accommodate a wide range of high-frequency applications. The presence of thru-hole and SMT pads allows for versatile component placement, making it suitable for diverse circuit designs.

Typical Applications

The versatility of the RO3210 PCB makes it an ideal choice for a variety of high-frequency applications, including:

Automotive Collision Avoidance Systems

Automotive Global Positioning Satellite Antennas

Wireless Telecommunications Systems

Microstrip Patch Antennas for Wireless Communications

Direct Broadcast Satellites

Datalink on Cable Systems

Remote Meter Readers

Power Backplanes

LMDS and Wireless Broadband

Base Station Infrastructure

Conclusion

In conclusion, RO3210 Rogers PCBs represent the epitome of excellence in high-frequency circuit materials. With a perfect blend of cutting-edge features, unmatched performance, and reliability, RO3210 is poised to revolutionize the world of high-frequency applications. Whether it's automotive systems, telecommunications, or satellite technologies, RO3210 PCBs provide the foundation for innovation, efficiency, and uncompromising quality.

Experience the future of high-frequency circuitry with RO3210 PCBs - where precision meets performance, and reliability knows no bounds.
