What Are the Key Advantages of Using TLX-9 PCB in Electronic Designs?

  • August 21. 2024


What Are the Key Advantages of Using TLX-9 PCB in Electronic Designs?


The TLX-9 PCB 10mil, a cutting-edge composite of PTFE/woven glass laminates, represents a significant leap in PCB technology with its meticulously controlled electrical and mechanical properties. This innovative PCB offering is set to redefine standards in the electronics industry, catering to a wide array of applications with its exceptional characteristics.


What are the key advantages of using TLX-9 PCB in electronic designs?


Superior Material Properties

1)Dielectric Constant & Dissipation Factor:

At 10 GHz, the TLX-9 Taconic PCB material sboasts a Dielectric Constant of 2.5 and a low Dissipation Factor of 0.0019, ensuring optimal signal integrity and performance.


2)Moisture Absorption & Dielectric Breakdown:

With a minimal Moisture Absorption rate of <0.02% and a Dielectric Breakdown exceeding 60 kV, the TLX-9 guarantees reliability even in challenging environmental conditions.


3)Electrical Insulation:

The PCB offers impressive Volume Resistivity and Surface Resistivity of 10^7 Mohm/cm, coupled with Arc Resistance exceeding 180 seconds, ensuring robust electrical insulation.


4)Mechanical Strength:

Flexural Strength is exceptional, with Lengthwise surpassing 23,000 lbs./in. and Crosswise exceeding 19,000 lbs./in., providing durability and stability.


5)Peel Strength & Thermal Conductivity:

The Peel Strength with 1oz copper reaches 12 lbs./linear in., while the Thermal Conductivity stands at 0.19 W/m/K, facilitating efficient heat dissipation.


Key Benefits

1)Optimized Performance:

With a Low Dielectric Constant, Low Dissipation Factor, and High Dielectric Breakdown, the TLX-9 Taconic PCB ensures superior performance in demanding applications.


2)Reliability & Versatility:

Its Low Moisture Absorption, Good Peel Strength, and Controlled Coefficient of Thermal Expansion (CTE) make it a versatile and reliable choice for various electronic designs.

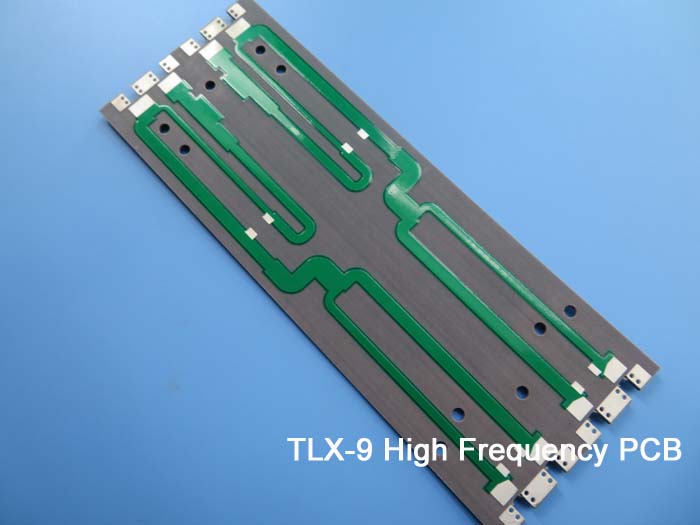

TLX-9 high frequency PCB


Construction Details

1)PCB Stackup:

The TLX-9 features a 2-layer rigid PCB construction, with a Taconic TLX-9 Core of 0.254 mm (10mil) sandwiched between copper layers.


2)Precise Dimensions & Finishing:

Board dimensions of 33.5mm x 63.2mm ensure accuracy, with a finished board thickness of 0.3mm and a finished Cu weight of 1oz (1.4 mils) on the outer layers.


3)Surface Finish & Testing:

Via plating thickness of 20um, Surface finish in Immersion Gold, and a 100% Electrical test conducted before shipment guarantee quality and reliability.


Applications and Global Reach

Versatile Applications


1)LNAs, LNBs, and LNCs:

The TLX-9 PCB is ideal for applications requiring low noise amplification, offering enhanced performance and stability.


2)PCS/PCN Large Format Antennas:

Catering to the Personal Communications Service/Personal Communications Network sector, the TLX-9 excels in large format antenna designs.


3)High Power Amplifiers & Passive Components:

Its robust properties make it a suitable choice for high-power applications and passive components, ensuring efficiency and longevity.




Quality Standards and Global Availability

Quality Assurance:

Compliant with IPC-Class-2 standards, the TLX-9 high frequency PCB guarantees reliability and precision in every aspect of its design and manufacturing.

Global Reach:

Available worldwide, the TLX-9 10mil Taconic laminates PCB opens up possibilities for electronics manufacturers across the globe, enabling them to access top-tier PCB technology for their projects.


Conclusion

In conclusion, the TLX-9 PCB 10mil Taconic material stands as a testament to innovation and excellence in the electronics industry. With its advanced material properties, precise construction details, and versatile applications, it is set to elevate electronic designs to new heights. Embrace the future of PCB technology with the TLX-9, where performance meets perfection.


For more information and inquiries about the TLX-9 high frequency circuit board 10mil, feel free to reach out to our team!
