What Are the Key Features That Set RF-10 PCBs Apart From Other Materials?

  • September 27. 2024
In the realm of cutting-edge RF technologies, where precision and performance are paramount, the RF-10 PCB stands out as a beacon of innovation. Engineered with a blend of ceramic-filled PTFE and woven fiberglass, the RF-10 copper clad laminates redefine the standards of high-frequency circuitry. Let's delve into the intricacies of this groundbreaking PCB and explore how it can elevate your RF projects to new heights.


Introduction to RF-10

At the core of the RF-10 60mil substrate board lies a fusion of ceramic-filled PTFE and woven fiberglass, harmonizing to deliver exceptional performance characteristics. With a high dielectric constant and an ultra-low dissipation factor, the RF-10 PCB excels in RF applications that demand superior signal integrity and minimal losses. Its thin woven fiberglass reinforcement not only ensures low dielectric loss but also enhances rigidity for seamless handling and heightened dimensional stability in multilayer circuits.

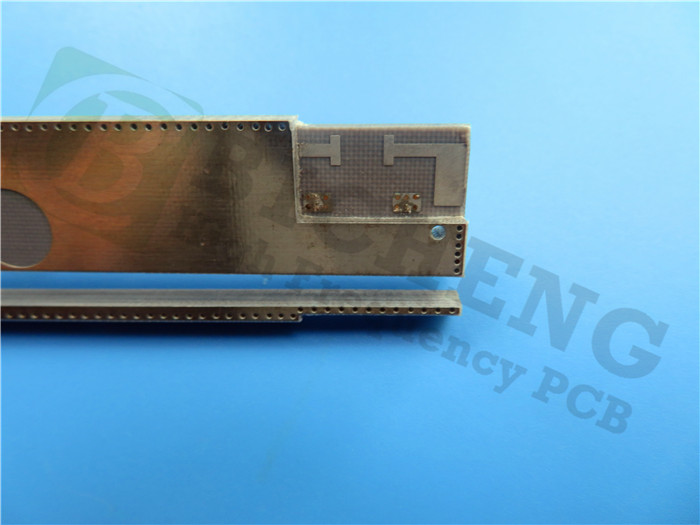

RF-10 60mil substrate board


What are the key features that set RF-10 PCBs apart from other materials?

RF-10 60mil Taconic PCB materials PCBs possess distinctive features that set them apart from other materials commonly used in the electronics industry. Here are the key features that make RF-10 PCBs stand out:


1)Dielectric Constant:

RF-10 PCBs have a dielectric constant of 10.2±0.3 at 10GHz, which is a crucial parameter for high-frequency applications. This high dielectric constant enables precise signal propagation and efficient RF circuit design.


2)Dissipation Factor:

With a dissipation factor of 0.0025 at 10GHz, RF-10 PCBs exhibit low signal losses, making them ideal for high-frequency and RF applications where signal integrity is critical.


3)High Thermal Conductivity:

The thermal conductivity of RF-10 PCBs is 0.85 W/mk (Unclad), which ensures effective heat dissipation. This feature is essential for thermal management in electronic systems, especially in applications where heat generation is a concern.


4)Coefficient of Thermal Expansion (CTE):

RF-10 PCBs have specific CTE values (x CTE of 16 ppm/°C, y CTE of 20 ppm/°C, z CTE of 25 ppm/°C) that contribute to their dimensional stability and reliability across varying temperature conditions.


5)Low Moisture Absorption:

RF-10 PCBs exhibit low moisture absorption of 0.08%, which helps maintain their electrical and mechanical properties in diverse environmental conditions, ensuring long-term performance.


6)Flammability Rating:

RF-10 PCBs have a flammability rating of V-0, indicating that they meet stringent safety standards and are resistant to combustion, enhancing their reliability in electronic applications.


7)Excellent Adhesion:

RF-10 PCBs demonstrate exceptional adhesion to smooth copper surfaces, facilitating optimal signal transfer and ensuring reliable performance in RF circuits.


8)Dimensional Stability:

RF-10 PCBs offer excellent dimensional stability, making them suitable for applications where precision and reliability are paramount, such as in high-frequency RF circuits and aerospace electronics.


9)Tight Dielectric Constant Tolerance:

The tight dielectric constant tolerance of RF-10 PCBs (10.2 +/- 0.3) ensures consistent electrical properties and signal performance, contributing to the overall reliability of electronic systems.


10)Price/Performance Ratio:

RF-10 PCBs provide an excellent price/performance ratio, offering a balance between high-quality RF characteristics and cost-effectiveness, making them a preferred choice for various RF applications.


These key features collectively position RF-10 RF PCB material as a superior choice for high-frequency applications, offering a blend of performance, reliability, and efficiency that distinguish them from other materials in the electronics industry.

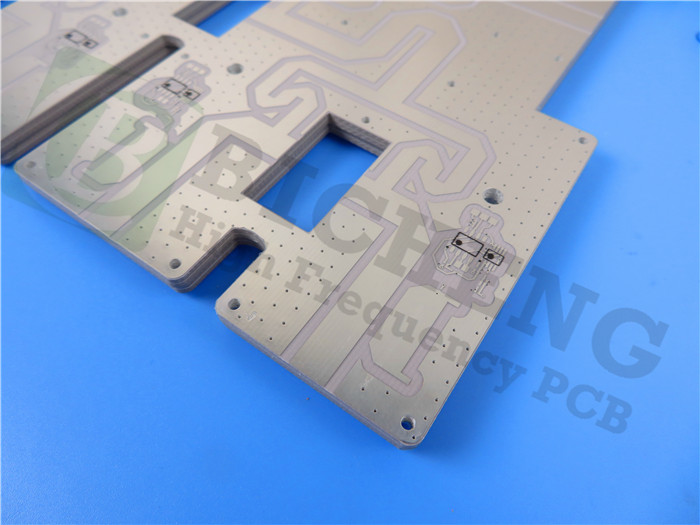

RF-10 RF PCB material


PCB Specifications

The RF-10 PCB comes in a double layer circuit stackup with precise construction details:


Board Dimensions: 40mm x 40mm (±0.15mm)

Minimum Trace/Space: 7/8 mils

Minimum Hole Size: 0.4mm

Finished Board Thickness: 1.6mm

Finished Cu Weight: 1oz outer layers

Via Plating Thickness: 20μm

Surface Finish: Immersion Silver

Silkscreen: Top - White, Bottom - None

Solder Mask: Top - Black, Bottom - None

Electrical Testing: Rigorous 100% electrical testing prior to shipment.



PCB Statistics and Quality Assurance

With 7 components, 11 total pads, and adherence to the IPC-Class-2 quality standard, the RF-10 high frequency circuit board PCB guarantees reliability and performance. The supplied Gerber RS-274-X artwork ensures seamless integration, while its availability worldwide opens doors to limitless possibilities.


Applications

The RF-10 Taconic PCB finds its niche in a myriad of applications, including:


1)Microstrip Patch Antennas:

Enhancing signal transmission and reception.


2)GPS Antennas:

Ensuring precision in global positioning systems.


3)Passive Components:

Ideal for filters, couplers, and power dividers.


4)Aircraft Collision Avoidance Systems:

Safeguarding against potential threats in aviation.


5)Satellite Components:

Enabling seamless communication in space exploration.



Conclusion

In conclusion, the RF-10 High frequency PCB epitomizes excellence in RF circuitry, offering a blend of performance, reliability, and innovation that transcends boundaries. Elevate your RF projects with the RF-10 60mil PCB and witness a new era of connectivity unfold.
