Rogers 6010.2LM duroid PCB with its innovative design, unmatched features, and exceptional performance characteristics, stands as a testament to excellence in modern circuit board technology.
Item NO.:
BIC-268-v334.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

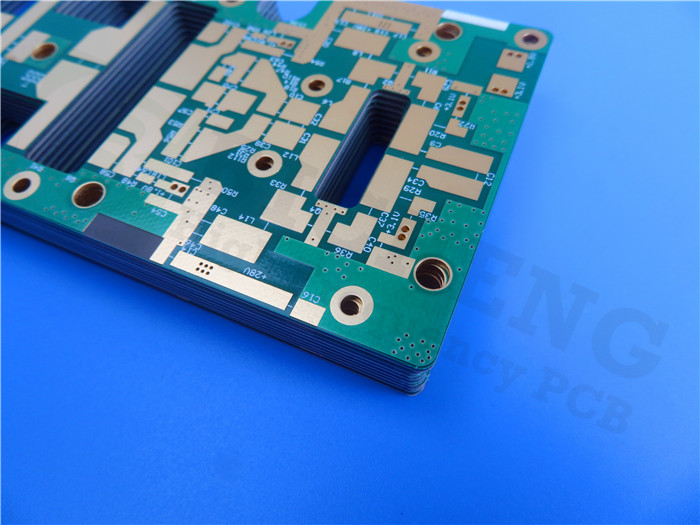

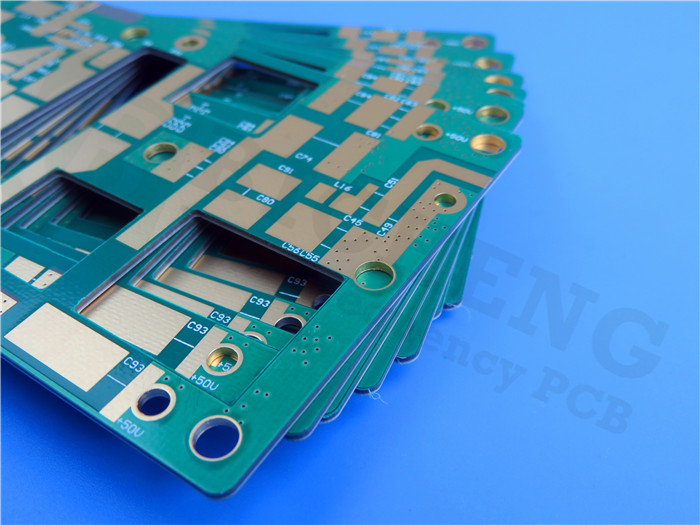

RT/duroid 6010.2LM PCB 0.254mm Rogers 10mil 2-layer high Frequency Laminates Immersion Silver Surface Finish
In the realm of cutting-edge electronic and microwave circuit applications, the RT/duroid 6010.2LM PCB stands tall as a pinnacle of technological advancement. Crafted from ceramic-PTFE composites, this Rogers laminate is a game-changer for industries demanding precision, reliability, and high-performance capabilities in their circuits.
Introduction to RT/duroid 6010.2LM
The 10mil RT/duroid 6010.2LM laminates are meticulously engineered to cater to the intricate needs of electronic and microwave circuits that necessitate a high dielectric constant. These composites offer a remarkable dielectric constant (Dk) that facilitates the reduction of circuit size, a crucial aspect in modern circuit design. Moreover, their low loss characteristics make them exceptionally well-suited for operations at X-band frequencies or lower, ensuring optimal performance across a wide range of applications. The tight Dk and thickness control of these laminates guarantee consistent and repeatable circuit performance, a hallmark of reliability in the industry.
Features
The Rogers 6010.2LM PCB boasts an impressive array of features that underscore its superiority in the market:
1)Dk of 10.2 +/- 0.25 at 10GHz, enabling efficient reduction in circuit dimensions.
2)Incredibly low dissipation factor of .0023 at 10GHz, ensuring minimal signal loss.
3)Decomposition Temperature (Td) of 500°C TGA, showcasing its robust thermal stability.
4)Negligible moisture absorption of 0.01%, safeguarding against electrical losses due to moisture.
5)Coefficient of Thermal Expansion that ensures stability across dimensions.
6)High thermal conductivity of 0.86W/mk, aiding in efficient heat dissipation.
7)Flammability Rating of V-0 UL94, meeting the highest safety standards.
Benefits
The RT/duroid 6010.2LM high frequency PCB offers a plethora of benefits that make it a preferred choice among industry professionals:
1)High dielectric constant for effective circuit miniaturization.
2)Low loss characteristics, making it ideal for applications in the X-band and below.
3)Minimal Z-axis expansion, ensuring reliable plated through holes in multilayer boards.
4)Exceptionally low moisture absorption, mitigating the impact of moisture on electrical performance.
5)Precise εr and thickness control for consistent and reproducible circuit performance.
PCB Construction Details
The RT/duroid 6010.2LM PCB is a 2-layer 10mil circuit board PCB that embodies precision and quality:
Description |
Value |
Board dimensions |
46mm x 54.3mm = 1PCS, +/- 0.15mm |
Minimum Trace/Space |
4/4 mils |
Minimum Hole Size |
0.5mm |
Blind vias |
No |
Finished board thickness |
0.3mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion Silver |
Top Silkscreen |
White |
Bottom Silkscreen |
No |
Top Solder Mask |
Green |
Bottom Solder Mask |
No |
Electrical test |
100% prior to shipment |
PCB Statistics
With a robust design and impeccable specifications, the RT/duroid 6010.2LM high frequency laminate PCB board stands out:
Description |
Value |
Components |
7 |
Total Pads |
20 |
Thru Hole Pads |
11 |
Top SMT Pads |
9 |
Bottom SMT Pads |
0 |
Vias |
16 |
Nets |
2 |
Artwork and Quality Standards
The RT/duroid 6010.2LM 10mil Rogers substrate PCB adheres to stringent quality standards:
Type of artwork supplied:Gerber RS-274-X for seamless integration.
Quality standard: IPC-Class-2, meeting industry benchmarks for reliability and performance.
Globally Available: Ensuring accessibility and compatibility across diverse markets.
Applications
The RT/duroid 6010.2LM PCB finds its niche in a myriad of applications, including:
Patch Antennas
Satellite Communications Systems
Power Amplifiers
Aircraft Collision Avoidance Systems
Ground Radar Warning Systems
Conclusion
In conclusion, the Rogers 6010.2LM duroid PCB with its innovative design, unmatched features, and exceptional performance characteristics, stands as a testament to excellence in modern circuit board technology. With a focus on precision, reliability, and efficiency, this wholesale high frequency PCB is poised to revolutionize the landscape of electronic and microwave circuit applications, setting new standards for quality and performance in the industry.
