Why is TC600 High Frequency PCB Ideal for Demanding RF and Microwave Applications?

In the rapidly advancing world of electronics, the demand for high-frequency printed circuit boards (PCBs) that offer exceptional reliability and performance is higher than ever. For engineers and designers working on cutting-edge RF and microwave applications, the choice of substrate material is a critical decision that directly impacts the success of a project. Rogers Corporation’s TC600 high-frequency laminate emerges as a superior solution, specifically engineered to meet the rigorous demands of modern wireless technology. This PTFE-based composite material, reinforced with woven fiberglass and optimized with ceramic fillers, establishes a new benchmark for high-frequency PCB substrates, delivering a combination of electrical and thermal performance that is truly best-in-class.

Introduction

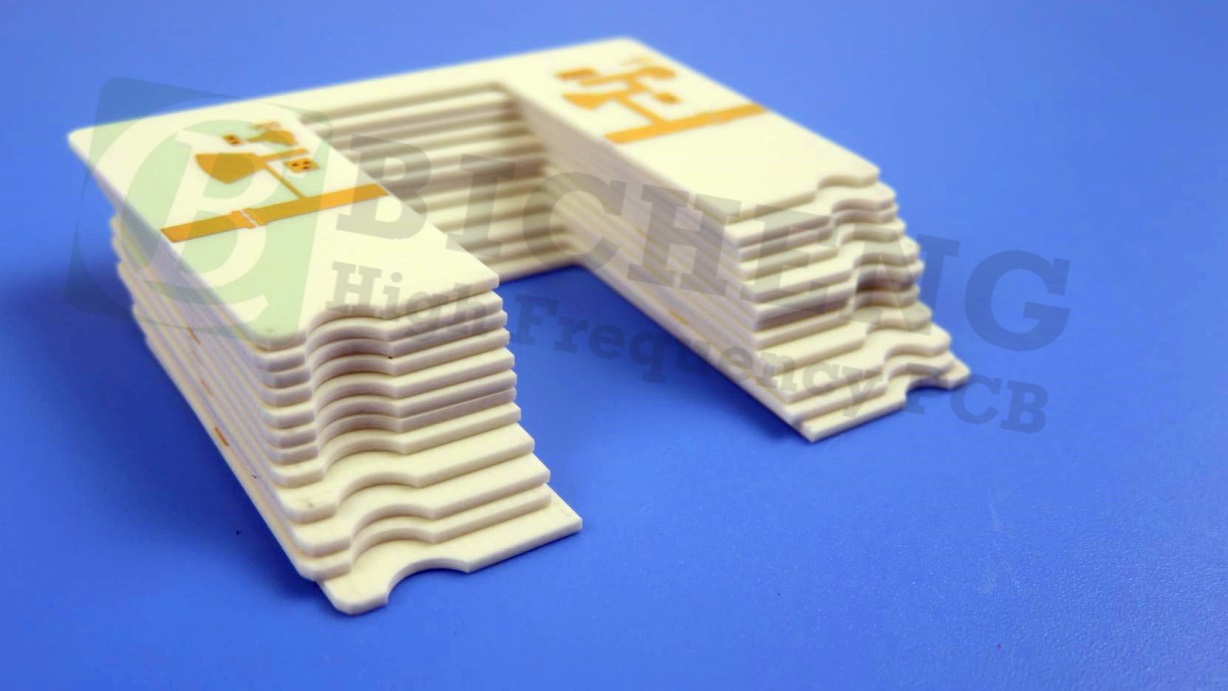

Rogers TC600 is a high-performance polytetrafluoroethylene (PTFE) composite material engineered for advanced printed circuit boards. It incorporates woven fiberglass and specialized ceramic fillers, delivering exceptional thermal and electrical properties. Recognized for its best-in-class thermal conductivity, this substrate significantly reduces dielectric and insertion losses—making it ideal for high-frequency applications such as amplifiers and antennas.

The Rogers TC600 PCB material’s superior thermal management capabilities support higher power densities, reduce the risk of localized overheating, and enhance overall device longevity. Its efficient heat dissipation works seamlessly with thermal management techniques like embedded coins, heat sinks, and thermal vias, offering designers greater flexibility and reliability in thermal planning.

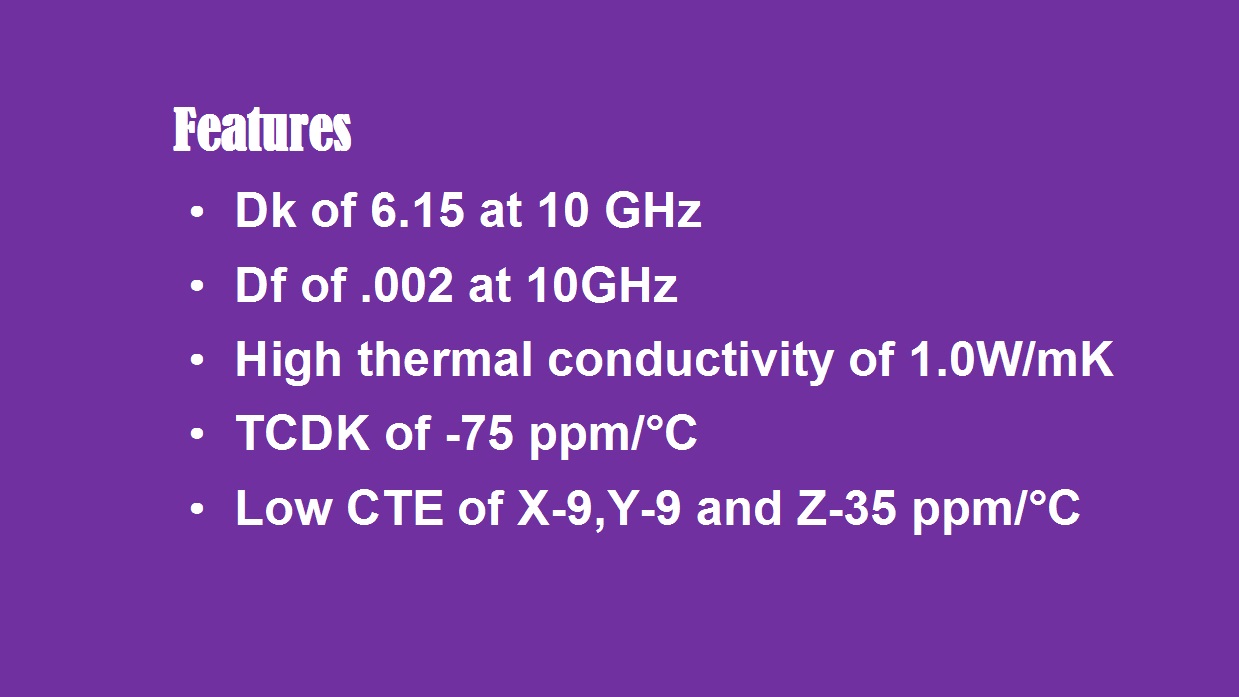

Features

TC600 laminates provide a combination of electrical and mechanical properties tailored for demanding RF and microwave applications:

1)High Dielectric Constant (Dk):

With a Dk of 6.15, the material supports circuit miniaturization, enabling more compact and efficient designs.

2)Low Dissipation Factor:

At 10 GHz, the dissipation factor is as low as 0.002, ensuring minimal signal attenuation and improved performance in high-frequency circuits.

3)Anisotropic Thermal Conductivity:

The Z-axis thermal conductivity reaches 1.1 W/m·K, while the X and Y axes offer 1.4 W/m·K. This directional efficiency promotes effective heat spread and dissipation.

4)Temperature Stability:

The dielectric constant remains consistent across a broad temperature spectrum (-40°C to 150°C) thanks to a TCDk of -75 ppm/°C. This stability is essential for power amplifiers and antennas to maintain gain and bandwidth under varying operational conditions.

5)Controlled Thermal Expansion:

A Z-direction CTE of 35 ppm/°C ensures mechanical reliability of plated through-holes, reducing the risk of failure in thermal cycling.

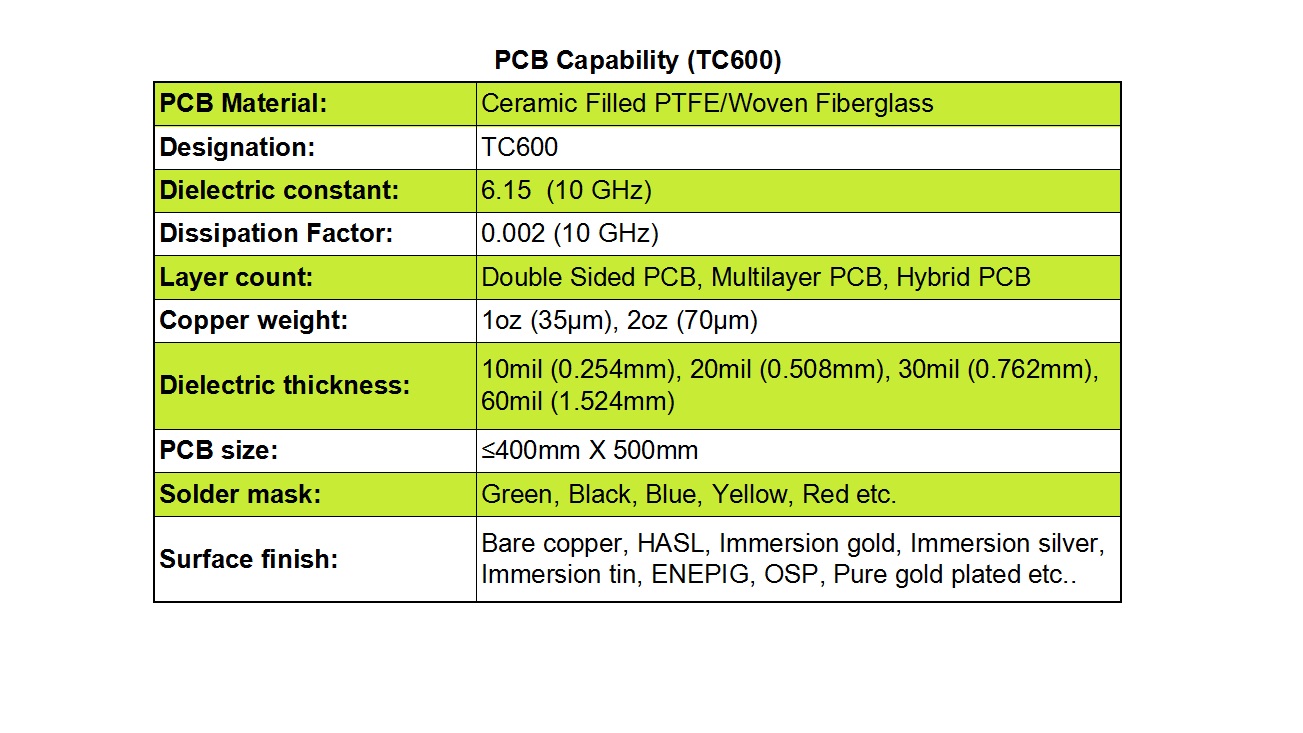

PCB Manufacturing Capabilities

We provide end-to-end PCB fabrication services tailored to high-frequency designs using Rogers TC600 material:

1)Layer Construction: We produce double-sided, multilayer, and hybrid PCBs to meet diverse design requirements.

2)Copper Options: Standard copper weights include 1 oz (35 µm) and 2 oz (70 µm), with customization available for specific current-carrying or thermal needs.

3)Dielectric Thickness: Available in 10 mil (0.254 mm), 20 mil (0.508 mm), 30 mil (0.762 mm), and 60 mil (1.524 mm) to support impedance control and signal integrity.

4)Board Dimensions: We accommodate panels up to 400 mm x 500 mm, suitable for both prototyping and volume production.

5)Solder Mask Colors: Options include green, black, blue, yellow, red, and others for aesthetic and functional preferences.

6)Surface Finishes: Choose from Bare Copper, HASL, ENIG, Immersion Silver, Immersion Tin, ENEPIG, OSP, and Pure Gold Plating to optimize solderability and surface durability.

Applications

TC600 high-frequency PCBs are widely used in RF and microwave systems, including:

• Power amplifiers, filters, and directional couplers
• Avionics systems such as microwave combiners and power dividers
• Compact and high-gain antennas
• Digital audio broadcasting (DAB) and satellite radio antennas
• GPS and handheld RFID reader antennas

In conclusion, Rogers TC600 High Frequency PCBs represent a powerful synergy of material science and manufacturing expertise. By offering unmatched thermal management, minimal signal loss, and exceptional reliability, they provide a critical advantage for the most demanding RF and microwave designs.
