Why Rogers 5880 PCB Become An Excellent Choice for High-Frequency Application

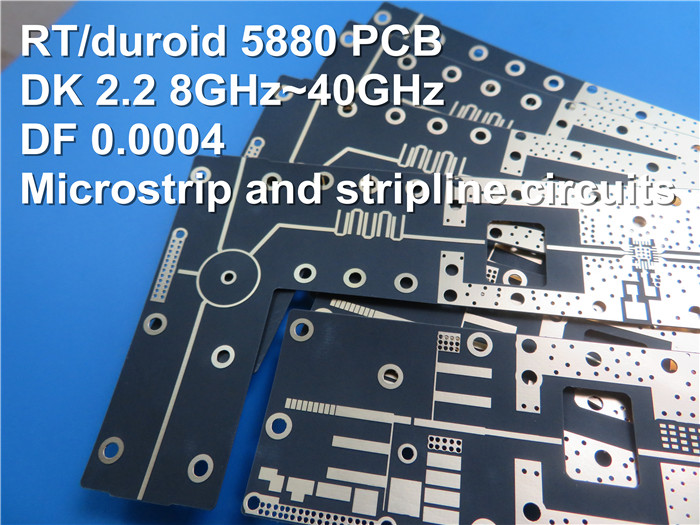

Rogers 5880 high-frequency laminate material is commonly used in the production of printed circuit boards (PCBs). It is a high-performance material that is designed to handle high-frequency signals with low loss, making it ideal for use in applications such as radio frequency (RF), microwave, and millimeter-wave circuits.

Bicheng PCB is a professional PCB supplier based in China that has been in the industry for over 15 years. They have a reputation for providing high-quality PCBs at competitive prices and offer a range of materials including Rogers 5880.

Rogers 5880 PCBs

When it comes to the capabilities of Rogers 5880 PCBs produced by Bicheng PCB, there are a number of factors to consider. These include:

Material properties: Rogers 5880 has a dielectric constant of 2.2, which is relatively low compared to other high-frequency materials. This means that it has a low signal loss, making it ideal for high-frequency applications. Bicheng PCB uses high-quality Rogers 5880 material to ensure that their PCBs have excellent signal performance.

Thickness options: Bicheng PCB offers a range of thickness options for Rogers 5880 PCBs, including 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, and 0.8mm. This means that customers can choose the thickness that best suits their specific application requirements.

Surface finish options: Bicheng PCB offers a range of surface finish options for Rogers 5880 PCBs, including HASL, OSP, ENIG, and immersion silver. This means that customers can choose the surface finish that best suits their specific application requirements.

Production capabilities: Bicheng PCB has advanced production capabilities that allow them to produce Rogers 5880 PCBs with tight tolerances and high precision. They use state-of-the-art equipment and employ experienced technicians to ensure that their PCBs meet the highest standards of quality and performance.

This PCB has a size of 160 x 70mm and is a double-sided board with two layers. It includes both surface mount and through-hole components, and the layer stackup consists of a copper layer with a thickness of 18um (0.5oz) on the top and bottom, with 0.381mm RT/duroid 5880 in the middle.

The technology used for this PCB includes a minimum trace and space of 4 mil and 15 mil, respectively, and a minimum and maximum hole size of 0.254 mm and 4.0mm, respectively. It has 4 different types of holes, with a total number of 125 drill holes and no milled slots or internal cutouts.

Impedance control is not required for this PCB, and there are no gold fingers. The board material is made of a thickness of 0.381mm RT/duroid 5880, and the final external foil has a thickness of 1.0 oz. The final height of the PCB is 0.4mm, with a tolerance of ±0.1mm.

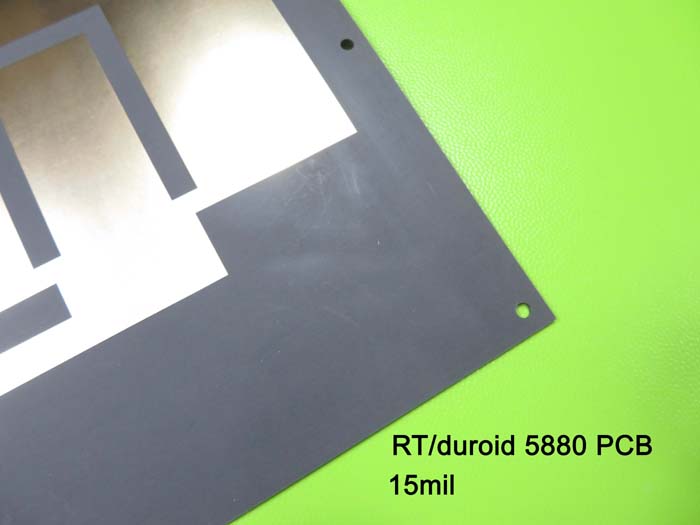

0.381mm RT/duroid 5880

The plating and coating used for this PCB include immersion gold as the surface finish, and no solder mask is applied. The contour and cutting are achieved through routing, and there is no marking on the board, such as a component legend or manufacturer name or logo.

The PCB has plated through holes (PTH) with a minimum size of 0.2mm, and the vias are tented. It has a flammability rating of UL 94-V0 Approval MIN.

The dimension tolerance for this PCB includes an outline dimension tolerance of 0.0059", a board plating tolerance of 0.0029", and a drill tolerance of 0.002".

Before shipment, the PCB will undergo 100% electrical testing. The type of artwork to be supplied for this PCB can be email files, Gerber RS-274-X, PCBDOC, or other formats.

In summary, Rogers 5880 PCBs produced by Bicheng PCB offer excellent signal performance, a range of thickness and surface finish options, and high precision production capabilities. If you require a high-quality PCB for a high-frequency application, Rogers 5880 PCB produced by Bicheng PCB is an excellent choice.

Bicheng PCB is a global service provider for PCB manufacturing, and they can produce this board for customers worldwide. The board's parameters are suitable for a wide range of applications, including consumer electronics, telecommunications, and industrial control systems. Overall, this PCB has a high-quality design with precise manufacturing tolerances, making it an excellent choice for those seeking a reliable and durable PCB solution.
