RT/duroid 6010.2LM microwave laminates are high-performance materials specifically designed for electronic and microwave circuit applications that require a high dielectric constant. These laminates are ceramic-PTFE composites that offer excellent ease of fabrication and stability in use.

Bicheng PCB is a professional supplier of PCBs, and they have a strong capability in producing high-quality PCBs using Rogers 6010 material. Bicheng PCB's capabilities include manufacturing, and assembling PCBs using Rogers 6010 material with high precision and accuracy.

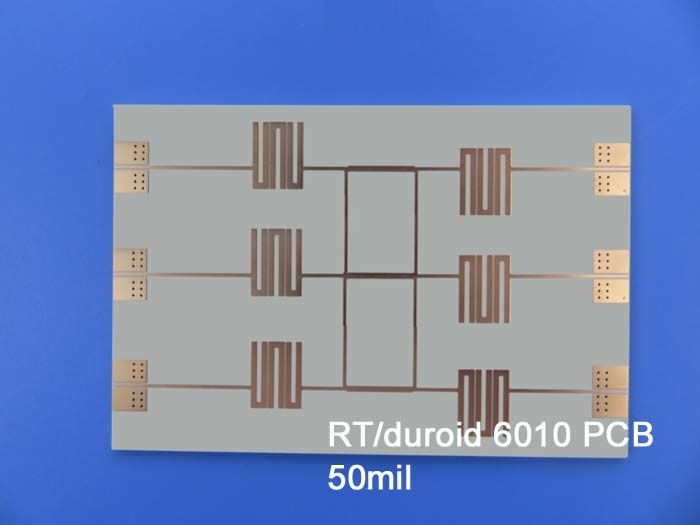

RT duroid 6010 PCB Band Pass Filters

Some of the key properties of Rogers 6010 PCBs include:

It has a dielectric constant value of 10.2, and is available in standard tolerance dielectric thicknesses of 0.010”, 0.025”, 0.050”, 0.075”, and 0.100”.

The material features tight dielectric constant and thickness control, low moisture absorption, and good thermal mechanical stability. Its dissipation factor, tan δ, is 0.0023 at 10 GHz, and its thermal coefficient of ε is -425 ppm/℃ between -50℃ and 170℃. The volume resistivity and surface resistivity of RT/duroid 6010.2LM are 5 x 10^5 Mohm.cm and 5 x 10^6 Mohm, respectively.

In terms of mechanical properties, RT/duroid 6010.2LM has high tensile strength, with a Young's modulus of 931 MPa (135 kpsi) in the X direction and 559 MPa (81 kpsi) in the Y direction. It also has good compressive strength, with a Young's modulus of 2144 MPa (311 kpsi) in the Z direction.

The material's flexural modulus is 4364 MPa (633 kpsi) in the X direction and 3751 MPa (544 kpsi) in the Y direction, and its ultimate stress is 36 MPa (5.2 kpsi) in the X direction and 32 MPa (4.4 kpsi) in the Y direction. Its deformation under load is 0.26% in the Z direction under 24hr/50℃/7MPa and 1.3% in the Z direction under 24hr/150℃/7MPa.

RT/duroid 6010.2LM has a moisture absorption of 0.01%, and a thermal conductivity of 0.86 W/m/k at 80℃. Its coefficient of thermal expansion is 24 ppm/℃ in the X direction, 24 ppm/℃ in the Y direction, and 47 ppm/℃ in the Z direction at 23℃/50% RH.

The material is compatible with lead-free processes and has a copper peel strength of 12.3 pli (2.1 N/mm) after solder float. It is also flame-resistant and has a V-0 rating under UL 94. Overall, RT/duroid 6010.2LM is an ideal material for high-frequency circuit applications that require a high dielectric constant and excellent mechanical and thermal properties.
