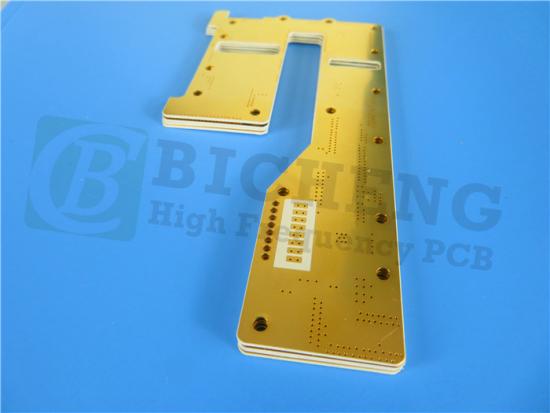

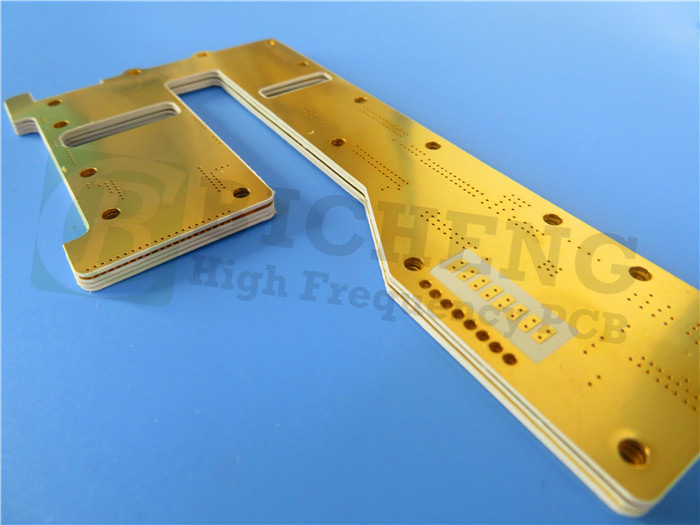

DiClad 527 High Frequency PCB Built on20mil 0.508mm Substrates with Double Sided Copper and Immersion Gold
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Brief Introduction
This Diclad 527 high frequency PCB is a 2-layer rigid board with stackup of 1oz (35μm) copper on top layer and bottom layer, sandwiching the 20mil DiClad 527 core material.
The board measures 150mm x 32mm and maintains precise dimensions with a tolerance of +/- 0.15mm. The minimum width for traces and spaces is 7/7 mils, allowing for intricate pattern and design flexibility. The finished board thickness is 0.6mm and the vias have a plating thickness of 20μm, enhancing their reliability and longevity, all compliance to IPC-Class-II standard.
The 20mil Diclad 527 PCB is coated with ENIG (Electroless Nickel Immersion Gold), providing excellent solderability and corrosion resistance. No solder mask is applied to top side or bottom side, but black silkscreen is printed on top side to indicate components location. Each individual board undergoes a comprehensive 100% electrical test before shipment, ensuring its functionality and adherence to specifications.
Diclad 527 PCB Specifications:
|
PCB SIZE
|
150 x 32mm=1up
|
|
BOARD TYPE
|
Double sided PCB
|
|
Number of Layers
|
2 layers
|
|
Surface Mount Components
|
YES
|
|
Through Hole Components
|
NO
|
|
LAYER STACKUP
|
copper ------- 17um(0.5 oz)+plate TOP layer
|
|
DiClad 527 0.508mm
|
|
copper ------- 17um(0.5oz) + plate BOT Layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
7 mils / 7mils
|
|
Minimum / Maximum Holes:
|
0.4mm / 2.0mm
|
|
Number of Different Holes:
|
8
|
|
Number of Drill Holes:
|
73
|
|
Number of Milled Slots:
|
N/A
|
|
Number of Internal Cutouts:
|
N/A
|
|
Impedance Control:
|
N/A
|
|
Number of Gold finger:
|
N/A
|
|
BOARD MATERIAL
|
|
|
PTFE/woven glass
|
DiClad 527
|
|
Final foil external:
|
1.0 oz
|
|
Final foil internal:
|
N/A
|
|
Final height of PCB:
|
0.6 mm ±0.1
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion gold, 67%
|
|
Solder Mask Apply To:
|
N/A
|
|
Solder Mask Color:
|
N/A
|
|
Solder Mask Type:
|
N/A
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of Component Legend
|
Top
|
|
Colour of Component Legend
|
Black
|
|
Manufacturer Name or Logo:
|
N/A
|
|
VIA
|
NO
|
|
FLAMIBILITY RATING
|
UL 94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline dimension:
|
0.0059"
|
|
Board plating:
|
0.0029"
|
|
Drill tolerance:
|
0.002"
|
|
TEST
|
100% Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide, Globally.
|
Our PCB Capability (2024)
|
Factory Process Capability (2024)
|
|
Substrate Types and Brands
|
Standard FR-4, High Tg FR-4, High Frequency Materials, Polyimide/PET flexible Materials
|
|
Shengyi, ITEQ, Isola, Taiwan Union, Rogers Corp. Taconic, Panasonic
|
|
Board Types
|
Rigid PCB, Flexible Circuits, Rigid-Flex PCB, Hybrid PCB, HDI PCB
|
|
CCL Model
|
High Tg FR-4: S1000-2M, TU-872 SLK, TU-768, IT-180A High CTI FR-4: S1600L, ST115
|
|
Rogers Corp: RO4350B, RO4003C, RO4725JXR, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4830, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/duroid 6006, RT/Duroid 6010.2LM, RT/duroid 6035HTC; RT/duroid 5880LZ, RT/duroid 6202; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; IsoClad 917, IsoClad 933; CLTE-XT, CLTE-AT, CLTE-MW; CuClad 217, CuClad 233, CuClad 250.
|
|
Taconic: TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; CER-10
|
Wangling: F4BM217, F4BM220, F4BM233, F4BM245, F4BM255, F4BM265, F4BM275, F4BM294, F4BM300;
F4BME217, F4BME220, F4BME233, F4BME245, F4BME255, F4BME265, F4BME275, F4BME294, F4BME300;
F4BTM298, F4BTM300, F4BTM320, F4BTM350;
F4BTME298, F4BTME300, F4BTME320, F4BTME350;
TP300, TP440, TP600, TP615, TP960, TP1020, TP1100, TP1600, TP2000, TP2200, TP2500;
TF300, TF440, TF600, TF960, TF1020, TF1600;
F4BTMS220, F4BTMS233, F4BTMS255, F4BTMS265, F4BTMS294, F4BTMS300, F4BTMS350, F4BTMS430, F4BTMS450, F4BTMS615, F4BTMS1000;
TFA294, TFA300, TFA615, TFA1020;
WL-CT300, WL-CT330, WL-CT330Z, WL-CT338, WL-CT350, WL-CT440, WL-CT615. Dielectric constant ranges DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2
|
|
Maximum Delivery Size
|
1200mm x 572 mm
|
|
Minimum Finished Board Thickness
|
L≤2L: 0.15mm; 4L: 0.4mm
|
|
Maximum Finished Board Thickness
|
10.0 mm
|
|
Blind Buried Holes (Non-crossing)
|
0.1mm
|
|
Maximum Hole Aspect Ratio
|
15:01
|
|
Minimum Mechanical Drill Hole Diameter
|
0.1 mm
|
|
Through-hole Tolerance
|
+/- 0.0762 mm
|
|
Press-fit Hole Tolerance
|
+/- 0.05mm
|
|
Non-plated Copper Hole Tolerance
|
+/- 0.05mm
|
|
Maximum Number of Layers
|
32
|
|
Internal and External Layer Maximum Copper Thickness
|
12Oz
|
|
Minimum Drill Hole Tolerance
|
+/- 2mil
|
|
Minimum Layer-to-Layer Tolerance
|
+/- 3mil
|
|
Minimum Line Width/Spacing
|
3mil/3mil
|
|
Minimum BGA Diameter
|
8mil
|
|
Impedance Tolerance
|
< 50Ω ±5Ω; ≥50Ω±10%
|
|
Surface Treatment Processes
|
Leaded/Lead-free HASL, Immersion Gold, Immersion Silver, Immersion Tin, OSP, ENIG, ENEPIG, Pure gold, Carbon Ink, Peelable Mask, Gold Finger, etc.
|
Do We Deliver Worldwide?
All PCBs purchasable through Bicheng Ltd can be dispatched worldwide to any non embargoed countries. We’ll choose the suitable shipping carriers for you among DHL, FedEx, TNT, UPS, EMS and Aramex
Is the High frequency Materials In Stock?
We keep most of the high frequency material in stock with prototype quantity,such as Rogers material with 3000 series, 4000 series, 5000 series, 6000 series etc, Taconic material with RF series, TLX series, TLY series etc, Wangling material F4BM, F4BM, F4BTM, F4BTMS, TP, TF, TFA, WL-CT etc. Since the high frequency material has so much variety, you can consult our sales persons before ordering.
Can I Collect My Order?
It’s completely no problem to pick up ordering of boards or collection of PCBs from our premises through your account in DHL, UPS or FedEx etc.. We’ll help to prepare the necessary export documents or files for customs declare.
How Much Will It Cost For Delivery?
We have various carriers to choose. Usually, we’ll pick one with best shipping fee for you. If your order is urgent, we can help to choose the forwarder with fast timeliness.
Am I Able To Return My PCBs?
PCBs are irreversible custom-made products, it is not allowed to return the items if there’s no quality problems.
When Will My Order Arrive?
All the PCBs are dispatched the same day if they are finished fabrication before 5pm. For Asian clients, you can get it within 2-3 days, European clients in 6-7 days and American (North and South) in 6-7 days, however the carriers do not guarantee this because of the complexity of transportation.
Will I Need To Sign For My Package?
We dispatch all orders using DHL, UPS, FedEx, TNT, Aramex or EMS, so they are fully tracked and may require a signature.
How Can I Track My Order?
Once your PCB boards are dispatched, you will receive a shipping confirmation via email by our sales that includes a tracking number. You can track this number on their official websites.
What Should I Do If My Parcel Is Damaged Or Lost?
This situation is rare in our daily business. The PCB boards are packed with bubble materials inside and with KK grade carton outside to protect your PCBs. However, If your parcel is lost or damaged, you must contact us immediately so that we can contact the carrier and arrange for replacement production. Please keep any damaged items including damaged packaging for reference.
