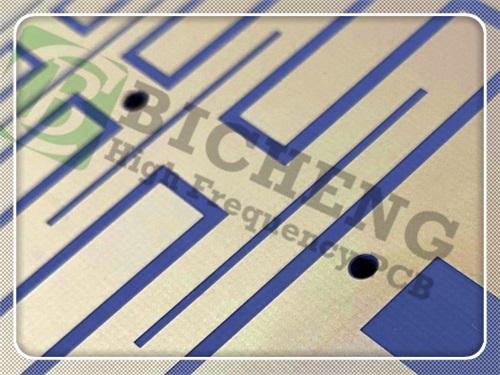

RF-10 PCB 2-layer 125mil Taconic Substrate RF Circuit Board with Immersion Gold

RF-10 PCB 2-layer 125mil Taconic Substrate RF Circuit Board with Immersion Gold

Introduction of RF-10

RF-10 copper clad laminates stand at the forefront of cutting-edge RF technology, offering a composite material that combines ceramic filled PTFE and woven fiberglass. Engineered with precision, RF-10 Taconic PCB Substrate  boasts a high dielectric constant and low dissipation factor. The integration of thin woven fiberglass reinforcement ensures not only low dielectric loss but also improved rigidity for enhanced handling and dimensional stability in multilayer circuits.

Born out of a need for size reduction in RF applications,RF-10 laminates provide a cost-effective substrate without sacrificing industry-standard delivery times. RF-10 exhibits exceptional bonding properties with smooth, low-profile copper surfaces. By leveraging the low dissipation of RF-10 in conjunction with the utilization of ultra-smooth copper, this Taconic High Frequency PCB optimizes insertion losses at higher frequencies where skin effect losses play a substantial role.

Features

2.1 Dielectric Constant of 10.2±0.3 at 10GHz:

RF-10 ensures reliable signal transmission with its well-controlled dielectric constant, enabling precise and predictable performance.

2.2 Dissipation Factor of 0.0025 at 10GHz:

The minimal dissipation factor in RF-10 prevents energy loss, leading to efficient signal propagation even at high frequencies.

2.3 High Thermal Conductivity of 0.85 W/mk (Unclad):

Combining excellent RF properties with superior thermal management, RF-10 allows for optimal heat dissipation in demanding applications.

2.4 x CTE of 16 ppm/°C, y CTE of 20 ppm/°C, z CTE of 25 ppm/°C:

RF-10 exhibits controlled and balanced coefficients of thermal expansion across multiple axes, enabling reliability and dimensional stability in various environmental conditions.

2.5 Low Moisture Absorption of 0.08%:

With its low moisture absorption rate, RF-10 remains stable and maintains its electrical performance over extended periods, even in humid environments.

2.6 Flammability Rating of V-0:

RF-10 complies with the highest flammability safety standards, offering peace of mind and protection in applications where fire resistance is crucial.

Benefits

3.1 High DK for RF circuit size reduction:

RF-10's high dielectric constant allows for compact RF circuit designs, maximizing space efficiency without compromising performance.

3.2 Excellent dimensional stability:

The combination of ceramic filled PTFE and woven fiberglass imbues RF-10 with remarkable dimensional stability, ensuring consistent performance over time.

3.3 Tight DK tolerance (10.2 +/- 0.3):

RF-10 adheres to tight dielectric constant tolerances, assuring accurate and reliable signal transmission.

3.4 High thermal conductivity for enhanced thermal management:

RF-10's high thermal conductivity facilitates efficient heat dissipation, safeguarding sensitive components from thermal stress and prolonging their lifespan.

3.5 Excellent adhesion to smooth coppers:

RF-10 achieves secure and reliable bonding to smooth copper surfaces, reducing signal loss and enabling high-frequency applications.

3.6 Low X, Y, Z expansion:

With its controlled coefficients of thermal expansion across multiple axes, RF-10 minimizes warping and ensures stable performance under varying temperature conditions.

3.7 Excellent price/performance ratio:

RF-10 strikes an ideal balance between performance and cost, offering exceptional value for RF circuit designers and manufacturers.

PCB Stackup

Taconic Immersion Gold PCB enables the construction of reliable 2-layer rigid PCBs with the following stackup:

Copper_layer_1 - 35μm (1oz)

RF-10 Core - 125mil (3.175mm)

Copper_layer_2 - 35μm (1oz)

PCB Construction details

To meet diverse design and production requirements, RF-10 Taconic RF PCB embody the following specifications:

PCB Statistics

To provide insight into Taconic RF-10 PCB's capabilities, here are the statistics:

Type of artwork supplied

Gerber RS-274-X: RF-10 PCBs accept Gerber RS-274-X files, the industry-standard format for PCB manufacturing, ensuring compatibility with popular CAD software packages.

Quality standard

IPC-Class-2: Compliant with IPC-Class-2, RF-10 125mil Taconic RF Laminates PCBs adhere to the highest quality standards, ensuring robust and reliable performance in demanding applications.

Availability: worldwide

Taconic RF PCB Circuit Board are readily available for purchase and delivery worldwide, enabling engineers and manufacturers to access the benefits of this exceptional technology with ease.

Applications

RF-10 high frequency PCBs find their applications in various industries and electronic systems, including but not limited to:

- Microstrip Patch Antennas

- GPS Antennas

- Passive Components (filters, couplers, power dividers)

- Aircraft Collision Avoidance Systems

- Satellite components

Conclusion

RF-10 PCB 125mil embodies the innovation and performance demanded by today's RF applications. With its exceptional dielectric properties, dimensional stability, thermal conductivity, and adhesion characteristics, RF-10 empowers engineers and manufacturers to realize their RF circuit designs with greater efficiency and reliability. Unlock the potential of advanced RF technology and choose RF-10 for your next project.

Experience the power of reliable signal transmission, compact design, and exceptional performance - all encapsulated within the RF-10 Taconic PCB Laminates. Order globally and embark on a new era of RF engineering excellence.
